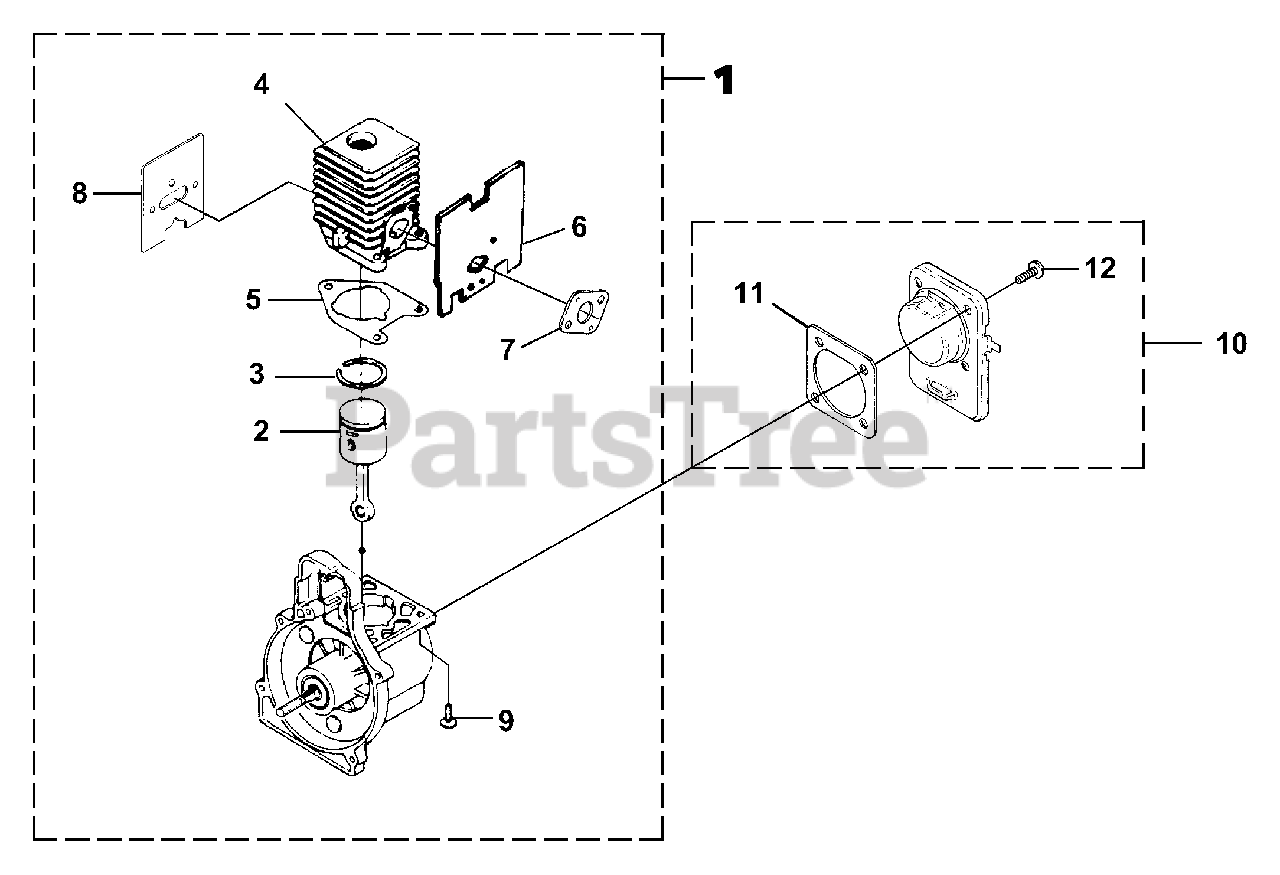

ST 155i CKD (UT-20746) - Homelite String Trimmer Engine Internal Parts Diagram

String Trimmer

Engine Internal Parts Diagram

  • Title

1

Homelite UP03116

SHORT BLOCK
(Superseded to UP03116A)

Note: Includes items 2-9

$

$

Not available

2

Homelite UP00768

PISTON & ROD ASSEMBLY
(Superseded to UP00768A)

Note: Includes item 3

$

$

Not available

3

Homelite PS01359

RING-Piston
(Superseded to 678001002)

$

$

Not available

4

Homelite UP07145

CYLINDER ASSY.
(Superseded to UP07145A)

Note: Includes item 4-8

$43.99

$

In Stock, only 1 left!

0

5

Homelite 04388B

GASKET-Cylinder
(Superseded to 985259001)

$

$

Not available

6

Homelite 06900A

GASKET-Heat Dam

$

$

Not available

7

Homelite 98766A

GASKET-Carburetor
(Superseded to 900994004)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 09343

GASKET-Muffler

$

$

Not available

9

Homelite 880841

SCREW-Sems (12-24 X 3/4")
(Superseded to UP04345)

Note: Torque Specs 55-65 In/Lbs, 6.2-7.3 Nm. Required Loctite Red 262

$1.49

$

Usually ships in 3-7 days

0

10

Homelite UP00019

CRANKCASE COVER ASSEMBLY
(Superseded to UP00019A)

Note: Includes items 11-12

$

$

Not available

11

Homelite 08661

GASKET-Crankcase Cover)

Note: Also included in Short Block Assembly

$

$

Not available

12

Homelite PS01565

SCREW-Sems (10-24 X 1/2")

Note: Torque Specs 35-45 In/Lbs, 4.0-5.1 Nm. Required Loctite Red 262; Also included in Short Block Assembly

$1.49

$

Usually ships in 3-7 days

0
