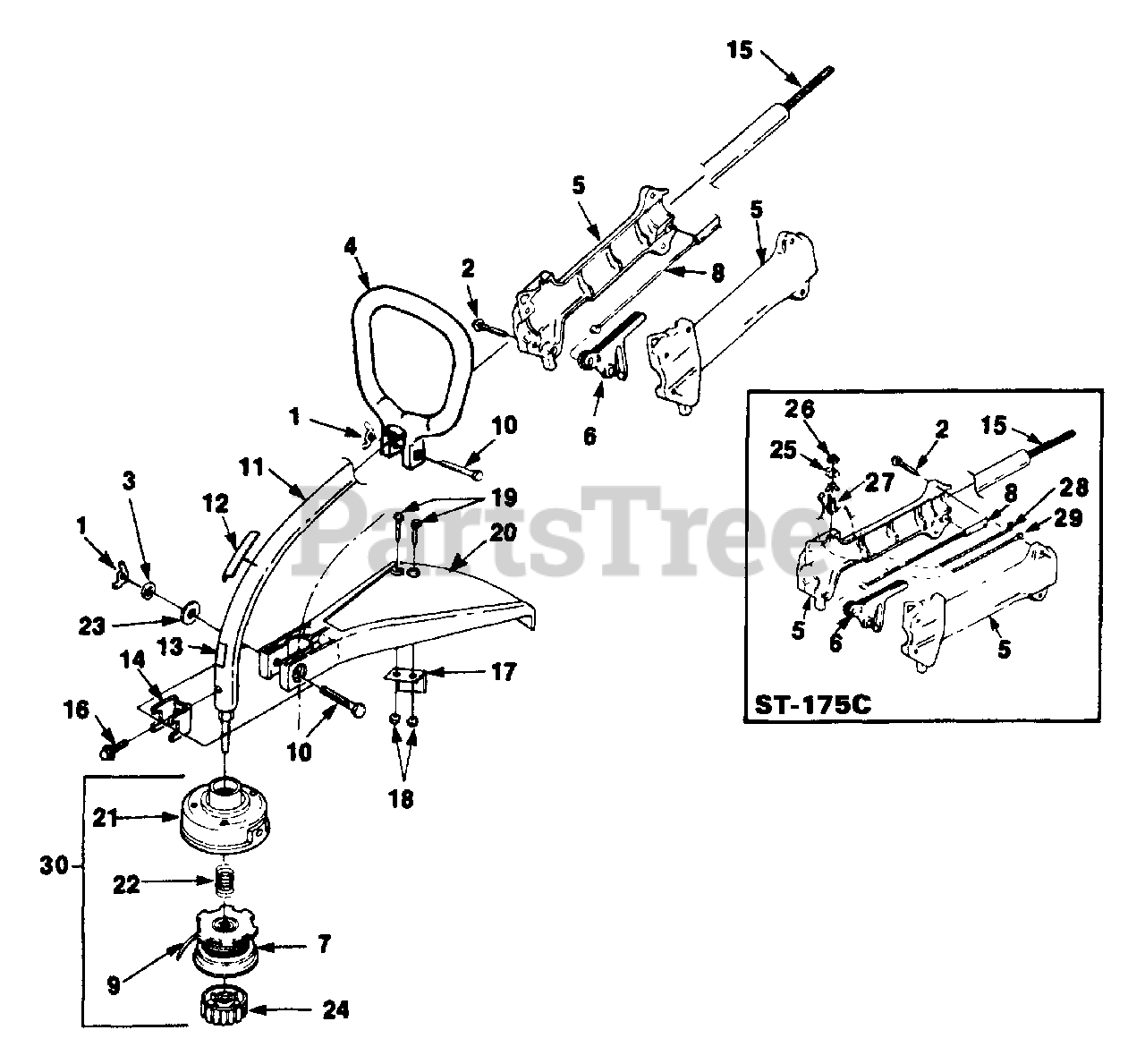

ST 175 C (UT-20599-B) - Homelite String Trimmer Boom & Head Parts Diagram

String Trimmer

Boom & Head Parts Diagram

  • Title

1

Homelite 93992

NUT-Wing

$

$

Not available

2

Homelite 82368

SCREW-Thread Form (#8 X 3/4")
(Superseded to PS00055)

$

$

Not available

3

Homelite 83009

WASHER-Lock (1/4")

$4.99

$

Usually ships in 3-7 days

0

4

Homelite 98822

HANDLE-Front
(Superseded to A04709)

$

$

Not available

5

Homelite A00879

HANDLE GRIP ASSEMBLY

$

$

Not available

6

Homelite 98772A

TRIGGER
(Superseded to UP04558)

$

$

Not available

7

Homelite DA98912C

SPOOL & STRING (Dual Line) (.080 Dia)

$

$

Currently unavailable

8

Homelite A03006

CABLE-Throttle

$

$

Not available

9

Homelite 9801105

LINE-Replacement (.080 Dia) (100 Ft.)

$

$

Currently unavailable

10

Homelite 80295

SCREW-Cap Hex Hd (1/4-20 x 2")

$2.99

$

Usually ships in 3-7 days

0

11

Homelite A04459

HOUSING-Driveshaft
(Superseded to UP04555)

$

$

Not available

12

Homelite 04458

DECAL-Starting Inst
(Superseded to UP04130)

$

$

Not available

13

Homelite 04154

DECAL-Warning

$

$

Not available

14

Homelite 98853

CLAMP
(Superseded to 07928)

$

$

Not available

15

Homelite 98816

SHAFT-Flexible
(Superseded to PS01502)

$

$

Not available

16

Homelite 82541

SCREW-Thread Form (#10 x 1/2")

$1.49

$

In Stock, only 3 left!

0

Homelite A01286

DEFLECTOR & BLADE KIT
(Superseded to T308744001)

Note: (SX-135, ST-155)

$

$

Not available

17

Homelite A03834

BLADE-Cut-Off

$

$

Not available

18

Homelite 81261

NUT-Hex (10-24)

$

$

Not available

19

Homelite 82531

SCREW-Mach Hex Hd (10-24 X 1")
(Superseded to 660616001)

$

$

Not available

20

Homelite 00130

DEFLECTOR-Grass
(Superseded to UP06710A)

$

$

Not available

17

Homelite A03832

BLADE-Cut-Off
(Superseded to UP04119)

Note: (ST-175C)

$

$

Not available

18

Homelite 81261

NUT-Hex (10-24)

$

$

Not available

19

Homelite 82531

SCREW-Mach Hex Hd (10-24 x 1")
(Superseded to 660616001)

$

$

Not available

20

Homelite 02610

DEFLECTOR-Grass
(Superseded to UP06572A)

Note: (ST-175C)

$

$

Not available

21

Homelite A98231A

HOUSING & EYELET-Dual Line
(Superseded to 099068001005)

$

$

Not available

22

Homelite 98848

SPRING-Compression
(Superseded to UP06526)

$1.49

$

In Stock, only 2 left!

0

23

Homelite 84006

WASHER-Flat (1/4")

$

$

Not available

24

Homelite A98866A

RETAINER-Spool
(Superseded to 308042002)

$

$

Not available

25

Homelite 95231

PLATE-Indicating
(Superseded to UP04266)

Note: (ST-175C)

$

$

Not available

26

Homelite 72084A1

NUT-Toggle Switch
(Superseded to UP04146)

$2.99

$

Usually ships in 3-7 days

0

27

Homelite 93653

TOGGLE SWITCH
(Superseded to UP04261)

$

$

Not available

28

Homelite A03912

LEAD-Electrical
(Superseded to UP04534)

$

$

Not available

29

Homelite A98919A

LEAD-Ground
(Superseded to UP04274)

$

$

Not available

30

Homelite A03001

STRINGHEAD COMP (.080 Dia Line)
(Superseded to DA03001A)

$

$

Not available
