ST 1842 (2691183-00) - Snapper 42" Lawn Tractor, 18.5hp Steering Assembly Group Parts Diagram

42" Lawn Tractor, 18.5hp

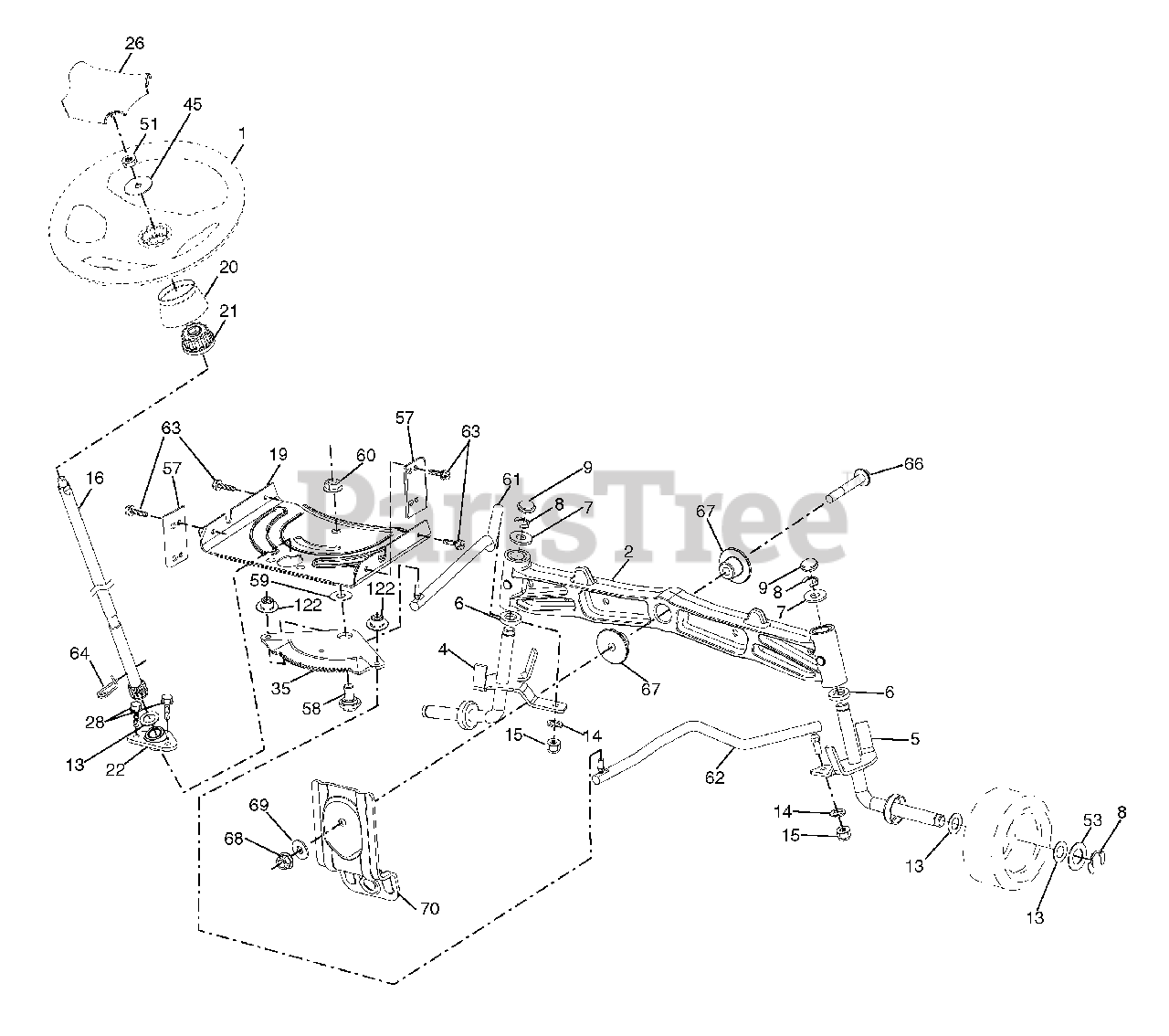

Steering Assembly Group Parts Diagram

  • Title

1

Snapper 705241

Wheel, Steering

$161.99

$

Usually ships in 2-12 days

0

2

Snapper 705095

Axle Asm., Front
(Superseded to 709727)

$261.99

$

Usually ships in 2-12 days

0

4

Snapper 705151

Spindle Asm., LH

$101.99

$

Usually ships in 2-12 days

0

5

Snapper 705152

Spindle Asm., RH

$69.99

$

In Stock, only 1 left!

0

6

Snapper 705006

Bearing, Race Thrust Harden
(Superseded to 770061)

$18.99

$

In Stock, only 1 left!

0

7

Snapper 704995

Washer 25/32 x 1-5/8 x 16 Ga.

$7.99

$

Usually ships in 2-12 days

0

8

Snapper 705319

Ring, Clip #T5304-75

$6.49

$

In Stock, only 2 left!

0

9

Snapper 705313

Cap, Spindle

$

$

Not available

13

Snapper 704996

Washer 25/32 x 1-1/4 x 16 Ga.

$7.99

$

In Stock, Qty 11

0

14

Snapper 705316

Washer, Lock Hvy Hlcl Spr 3/8

$5.49

$

In Stock, only 1 left!

0

15

Snapper 705348

Nut, Crown Lock 3/8-24 unf

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 705179

Shaft Steering

$91.99

$

Usually ships in 2-12 days

0

19

Snapper 705081

Plate Steering

$36.99

$

In Stock, only 1 left!

0

20

Snapper 705250

Boot, Steering

$12.99

$

Usually ships in 2-12 days

0

21

Snapper 705047

Adapter, Wheel Steering
(Superseded to 709772)

$56.99

$

Usually ships in 2-12 days

0

22

Snapper 705235

Steering Support Lower
(Superseded to 709805)

$35.99

$

Usually ships in 2-12 days

0

26

Snapper 705242

Insert, Wheel Steering

$10.99

$

Usually ships in 2-12 days

0

28

Snapper 705322

Screw 3/8-16 x 3/4

$6.49

$

Usually ships in 2-12 days

0

35

Snapper 705082

Gear, Sector Plate

$64.99

$

Usually ships in 2-12 days

0

45

Snapper 705429

Washer 9/16 ID x 2-3/8 x 12 Ga.

$6.99

$

Usually ships in 2-12 days

0

51

Snapper 705357

Nut Hex Jam Toplock 1/2-20 unf

$6.99

$

Usually ships in 2-12 days

0

53

Snapper 705052

Washer Hardened .793 x 1.637 x .060

$10.99

$

In Stock, only 1 left!

0

57

Snapper 705176

Bracket Upstop

$6.49

$

Usually ships in 2-12 days

0

58

Snapper 705086

Bolt Shoulder Sector Pivot CFM

$13.99

$

In Stock, only 1 left!

0

59

Snapper 705087

Washer Thrust Sector Steering

$9.99

$

In Stock, only 1 left!

0

60

Snapper 705358

Nut Flange Lock 5/8-11

$6.99

$

In Stock, only 2 left!

0

61

Snapper 705084

Draglink, LH

$121.99

$

In Stock, only 2 left!

0

62

Snapper 705085

Draglink, RH

$121.99

$

Usually ships in 2-12 days

0

63

Snapper 705321

Screw 5/16-18 x 3/4
(Superseded to 709742)

$8.99

$

Usually ships in 2-12 days

0

64

Snapper 705132

Retainer Clip Spring Steering

$8.99

$

Usually ships in 2-12 days

0

66

Snapper 705339

Bolt Hex Fghd 7/16-14 x 3 Serr

$5.99

$

Usually ships in 2-12 days

0

67

Snapper 705083

Bushing PM Front Axle

$12.99

$

In Stock, only 2 left!

0

68

Snapper 705354

Nut Lock Flange 7/16-14 Gr. 5

$6.49

$

Usually ships in 2-12 days

0

69

Snapper 705125

Washer 1.5 x .505 x .118

$5.49

$

Usually ships in 2-12 days

0

70

Snapper 705097

Bracket Deck Susp. Front

$18.99

$

Usually ships in 2-12 days

0

122

Snapper 705261

Cap Gear Sector

$4.49

$

Usually ships in 2-12 days
