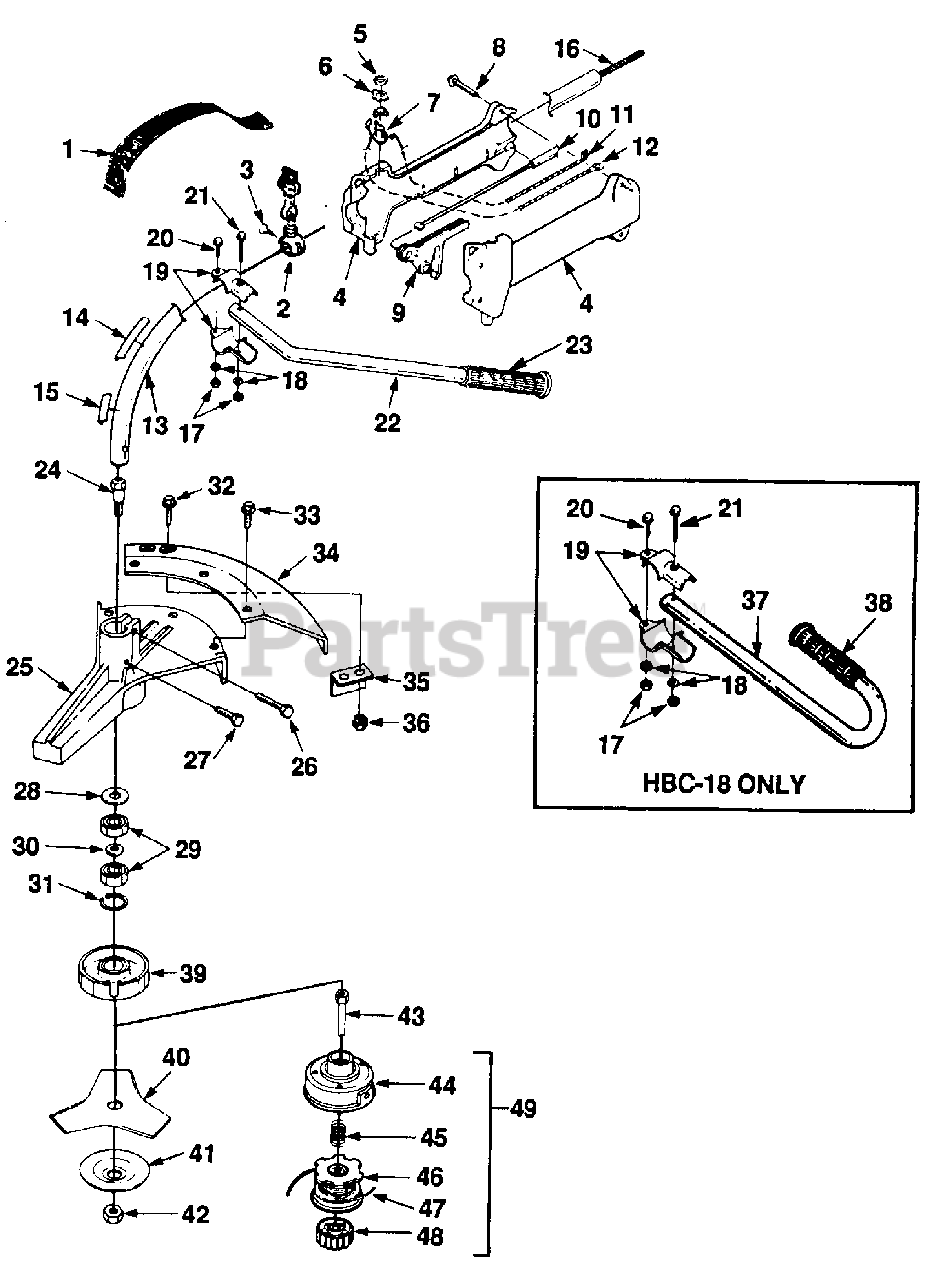

ST 185 BC (UT-15039-D) - Homelite String Trimmer Boom & Head Parts Diagram

String Trimmer

Boom & Head Parts Diagram

  • Title

1

Homelite DA92703B

HARNESS w/Connector

$

$

Currently unavailable

2

Homelite A94442

BRACKET-Hanger

$21.99

$

Usually ships in 3-7 days

0

3

Homelite 82260

SCREW-Thumb (10-24 X 1/2")

$

$

Not available

4

Homelite A039111

HANDLE GRIP ASSEMBLY

$

$

Currently unavailable

5

Homelite 72084A1

NUT-Toggle Switch
(Superseded to UP04146)

$5.99

$

Usually ships in 3-7 days

0

6

Homelite 95231

PLATE-Indicating
(Superseded to UP04266)

$

$

Not available

7

Homelite 93653

SWITCH-Toggle
(Superseded to UP04261)

$

$

Not available

8

Homelite 82368

SCREW-Plastite (#8 X 3/4")
(Superseded to PS00055)

$

$

Not available

9

Homelite 98772A

TRIGGER
(Superseded to UP04558)

$

$

Not available

10

Homelite A03006

CABLE-Throttle

$

$

Not available

11

Homelite A03912

LEAD-Electrical
(Superseded to UP04534)

$

$

Not available

12

Homelite A98919A

LEAD-Ground
(Superseded to UP04274)

$

$

Not available

13

Homelite A03287B

HOUSING-Drive Shaft (Black)

$

$

Currently unavailable

14

Homelite 04458

DECAL-Starting Instructions
(Superseded to UP04130)

$

$

Not available

15

Homelite 02985

DECAL-Warning
(Superseded to 983751001)

$

$

Not available

16

Homelite 98818

SHAFT-Flex

$

$

Not available

17

Homelite 81267

NUT (1/4-20)

$

$

Not available

18

Homelite 83061

WASHER (1/4")

$

$

Not available

19

Homelite 00422

CLAMP-Handle Bar
(Superseded to 099075001007)

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 88078

SCREW-Sems Hex Hd. (1/4-20 X 1")

$

$

Not available

21

Homelite 88071

SCREW-Sems Hex Hd. (1/4-20 X 1 1/2")

$

$

Not available

22

Homelite A97709A

HANDLE BAR (ST-185BC)

$

$

Not available

23

Homelite 94474B

GRIP

$

$

Not available

24

Homelite 98834A

SHAFT-Spindle
(Superseded to A04457A)

$

$

Currently unavailable

25

Homelite A04457

HOUSING-Lower Bearing
(Superseded to A04457A)

$

$

Currently unavailable

26

Homelite 88078

SCREW-Sems Hex Hd. (1/4-20 X 1")

$

$

Not available

27

Homelite 80869

SCREW-Mach Hex Hd. (10-24 X 3/8")

$

$

Not available

28

Homelite 98838

WASHER-Thrust

$

$

Not available

29

Homelite 98798

BEARING-Ball
(Superseded to UP05589)

$16.99

$

Usually ships in 3-7 days

0

30

Homelite 98839

SPACER-Bearing

$

$

Not available

31

Homelite 98799

RING-Retaining

$5.99

$

Usually ships in 3-7 days

0

32

Homelite 80869

SCREW-Mach Hex Hd. (10-24 X 3/8 )

$

$

Not available

33

Homelite 806813

SCREW-Mach Hex Hd.(1/4-20 X 1/2")

$

$

Not available

34

Homelite 988451

DEFLECTOR-Grass

$

$

Currently unavailable

35

Homelite 98858

BLADE-Cut-Off
(Superseded to 07129)

$

$

Not available

36

Homelite 81208

NUT (10-24)

$

$

Not available

37

Homelite A02951

HANDLE BAR ("J") (HBC-18)

$

$

Currently unavailable

38

Homelite 94474B

GRIP

$

$

Not available

39

Homelite 988351A

WASHER-Flanged
(Superseded to UP07278)

$

$

Not available

40

Homelite D98717A

BLADE-Tri-Arc (8")
(Superseded to D98717C)

$

$

Not available

41

Homelite 98836

WASHER-Cupped

$20.99

$

Usually ships in 3-7 days

0

42

Homelite 81282

NUT-Hex Locking (R.H.)
(Superseded to UP03492)

$5.99

$

Usually ships in 3-7 days

0

43

Homelite 98849

CONNECTOR-Drive

$36.99

$

Usually ships in 3-7 days

0

44

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

45

Homelite 98848

SPRING-Compression
(Superseded to UP06526)

$2.49

$

In Stock, only 1 left!

0

46

Homelite DA98912C

SPOOL & STRING (Dual Line) (ST-185BC)

$

$

Currently unavailable

Homelite DA02598A

SPOOL & STRING (Dual Line) (HBC-18)

$

$

Currently unavailable

47

Homelite 9801105

LINE-Replacement (ST-185BC) (.080" Dia. 1 lb. Box)

$

$

Currently unavailable

Homelite 0395903

LINE-Replacement (HBC-18) (.095" Dia. 1 lb. Box)
(Superseded to D06514)

$

$

Not available

48

Homelite DA98866A

RETAINER-Spool (R.H. Thread)
(Superseded to UP04273A)

$

$

Not available

49

Homelite A03001

STRING HEAD COMPLETE (.080 Line) (ST-185BC)
(Superseded to DA03001A)

$

$

Not available

Homelite A04591

STRING HEAD COMPLETE (.095 Line) (HBC-18)
(Superseded to DA04591A)

$120.99

$

In Stock, only 1 left!

0
