ST 1942 (2691569-00) (960440015) - Snapper 42" Lawn Tractor, Hydro Drive, 19hp Electrical Group Parts Diagram

42" Lawn Tractor, Hydro Drive, 19hp

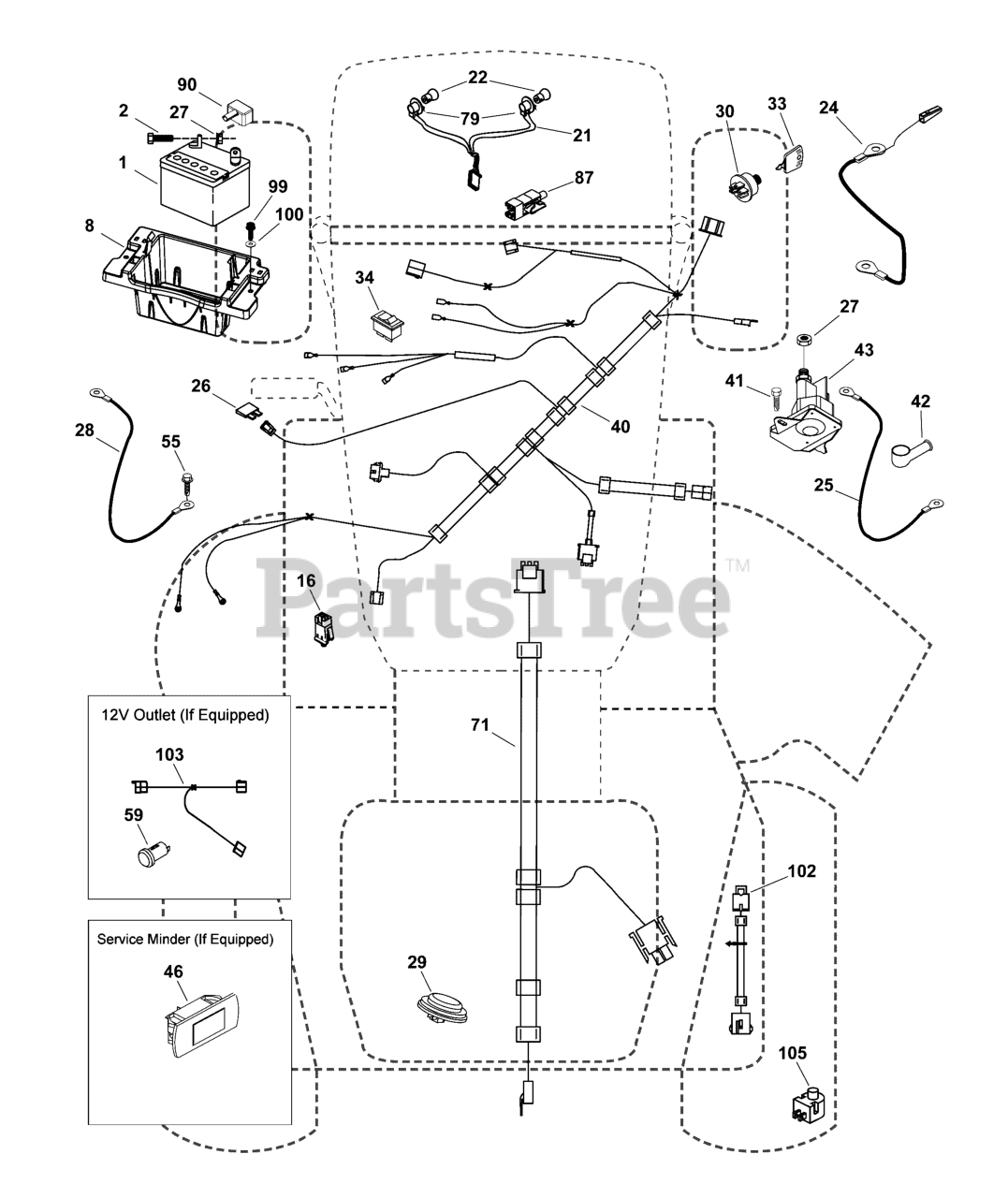

Electrical Group Parts Diagram

  • Title

1

Battery

$

$

Not available

2

Snapper 705362

Bolt Hex Head 1/4-20 x 3/4

$4.99

$

Usually ships in 2-12 days

0

8

Snapper 84004228

BOX, Battery

$

$

Currently unavailable

16

Snapper 705042

Switch Interlock Push-In

$21.99

$

In Stock, only 2 left!

0

21

Snapper 705298

Harness Socket Light w/4152J

$27.99

$

Usually ships in 2-12 days

0

22

Snapper 704984

Bulb Light

$7.49

$

Usually ships in 2-12 days

0

24

Snapper 705135

Cable Battery

$16.99

$

Usually ships in 2-12 days

0

25

Snapper 705225

Cable Starter

$19.99

$

Usually ships in 2-12 days

0

26

Snapper 705040

Fuse

$7.49

$

Usually ships in 2-12 days

0

27

Snapper 705346

Nut Keps Hex 1/4-20 unc

$5.99

$

Usually ships in 2-12 days

0

28

Snapper 705434

Cable, Ground

$7.49

$

Usually ships in 2-12 days

0

29

Snapper 705143

Switch, Seat

$64.99

$

Usually ships in 2-12 days

0

30

Snapper 705064

SWITCH, IGNITION

$100.99

$

Usually ships in 2-12 days

0

33

Snapper 704428

Key/Chain

$22.99

$

In Stock, only 1 left!

0

34

Snapper 704993

Switch Light/Reset

$8.99

$

Usually ships in 2-12 days

0

40

Snapper 84004009

HARNESS, Ignition Dash

$199.99

$

Usually ships in 2-12 days

0

41

Snapper 705330

Screw Thd Cut 1/4-20 x 1/2

$5.49

$

Usually ships in 2-12 days

0

42

Snapper 705010

Cover, Terminal

$6.99

$

Usually ships in 2-12 days

0

43

Snapper 84004010

SOLENOID

$

$

Not available

46

Snapper 84004235

GAUGE, Service Minder Hour Meter

$

$

Currently unavailable

55

Snapper 705324

Screw 5/16-18 X 3/4 Smgml Tap/R

$5.49

$

Usually ships in 2-12 days

0

71

Snapper 705067

HARNESS, Ignition Chassis

$62.99

$

Usually ships in 2-12 days

0

79

Snapper 705041

Socket Asm Bulb Twistlock

$21.99

$

Usually ships in 2-12 days

0

87

Snapper 705118

Switch Interlock Clutch Cable

$36.99

$

Usually ships in 2-12 days

0

90

Snapper 705253

Cover Terminal Battery

$5.49

$

Usually ships in 2-12 days

0

99

Snapper 705329

Screw Hexwsh Thdrol 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

100

Snapper 705332

Washer 9/32 x 7/8 x 16 Ga.

$7.49

$

Usually ships in 2-12 days

0

102

Snapper 705158

Harness Pigtail

$20.99

$

Usually ships in 2-12 days

0

105

Snapper 705177

Switch Reverse

$29.99

$

Usually ships in 2-12 days

0
