ST 1946 (960440012-00) - Snapper 46" Lawn Tractor, Hydro Drive, 19hp Engine Group Parts Diagram

46" Lawn Tractor, Hydro Drive, 19hp

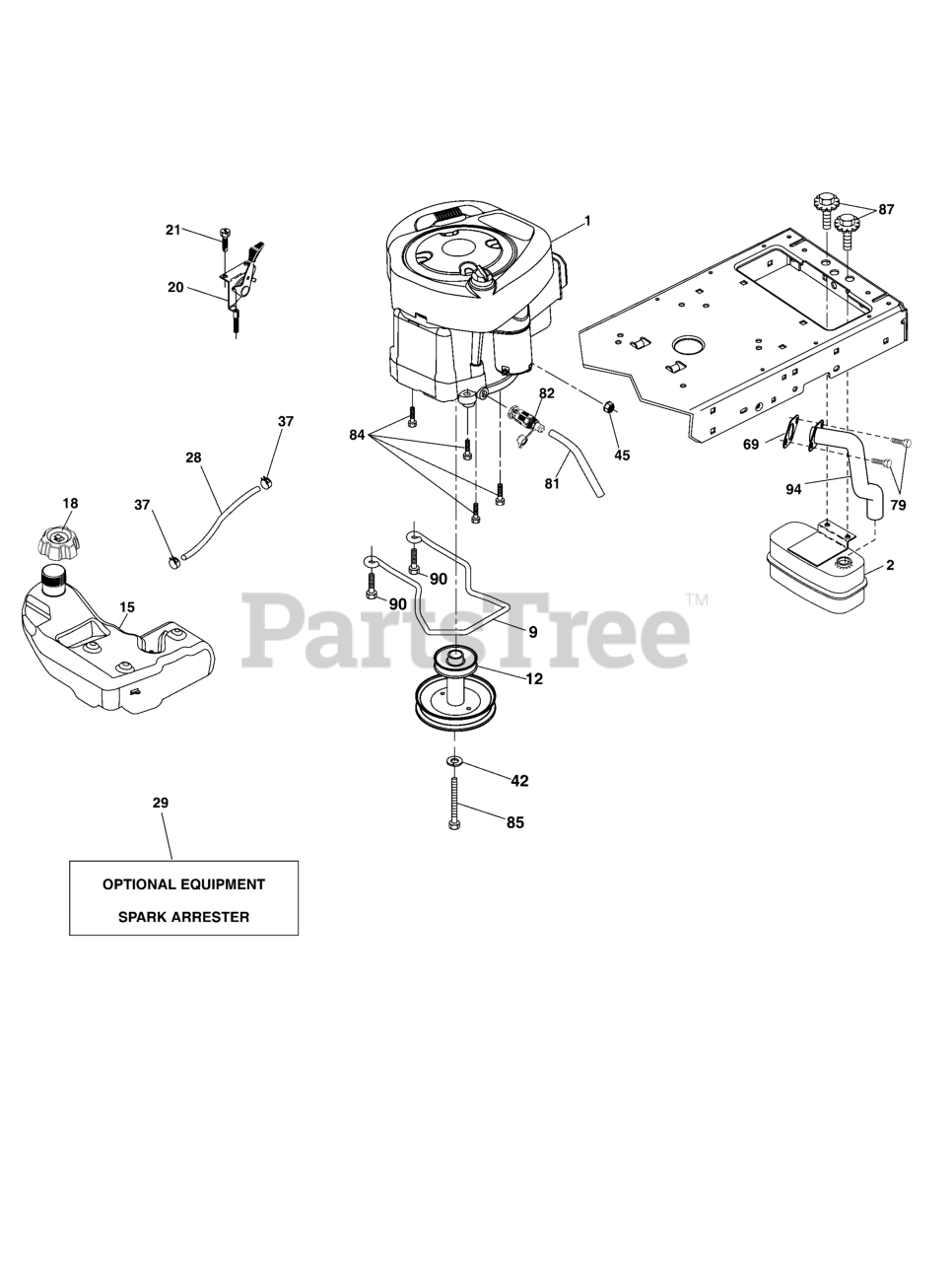

Engine Group Parts Diagram

  • Title

1

Snapper 33R877-0024-G1

* Engine, 20 Gross HP, B&S, Mod. 33R877-0024-G1

$

$

Currently unavailable

2

Snapper 84004016

MUFFLER

$112.99

$

Usually ships in 2-12 days

0

9

Snapper 84004017

KEEPER, Engine Belt

$

$

Not available

12

Snapper 84004236

PULLEY, Engine

$

$

Currently unavailable

15

Snapper 84004018

TANK, Fuel

$346.99

$

Usually ships in 2-12 days

0

18

Snapper 84004237

CAP, Fuel

$101.99

$

Usually ships in 2-12 days

0

20

Snapper 84004019

CONTROL, Throttle/Choke

$87.99

$

Usually ships in 2-12 days

0

28

Snapper 705141

Fuel Line

$41.99

$

Usually ships in 2-12 days

0

29

Snapper 705012

Spark Arrester Kit
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

37

Snapper 704997

Clamp Hose

$4.99

$

Usually ships in 2-12 days

0

42

Snapper 84004020

WASHER, 7/16 Lock SLW

$8.49

$

Usually ships in 2-12 days

0

69

Snapper 84004021

GASKET
(Superseded to 692236)

$5.49

$

In Stock, Qty 20+

0

79

Snapper 705054

Screw Socket HD 5/16-18 x .75

$4.49

$

In Stock, only 2 left!

0

81

Snapper 705023

Tube Drain Oil Easy

$8.49

$

Usually ships in 2-12 days

0

82

Snapper 705244

Valve Oil Drain

$23.99

$

Usually ships in 2-12 days

0

84

Snapper 705325

Screw 3/8-16 x 1-1/4

$5.49

$

Usually ships in 2-12 days

0

85

Snapper 84004023

BOLT, 7/16-20 X 4 X GR. 5-1.5, Hex

$8.99

$

Usually ships in 2-12 days

0

87

Snapper 705031

Bolt 5/16-18 unc x 3/4 w/Sems

$7.49

$

In Stock, only 2 left!

0

90

Snapper 705323

Screw Hexwsh Thd 3/8-16 x 1

$10.99

$

Usually ships in 2-12 days

0

89

Snapper 705289

Exhaust Tube

$29.99

$

Usually ships in 2-12 days

0
