ST 20 E - Husqvarna 20" Snow Blower (1995-01) Auger Housing Parts Diagram

20" Snow Blower

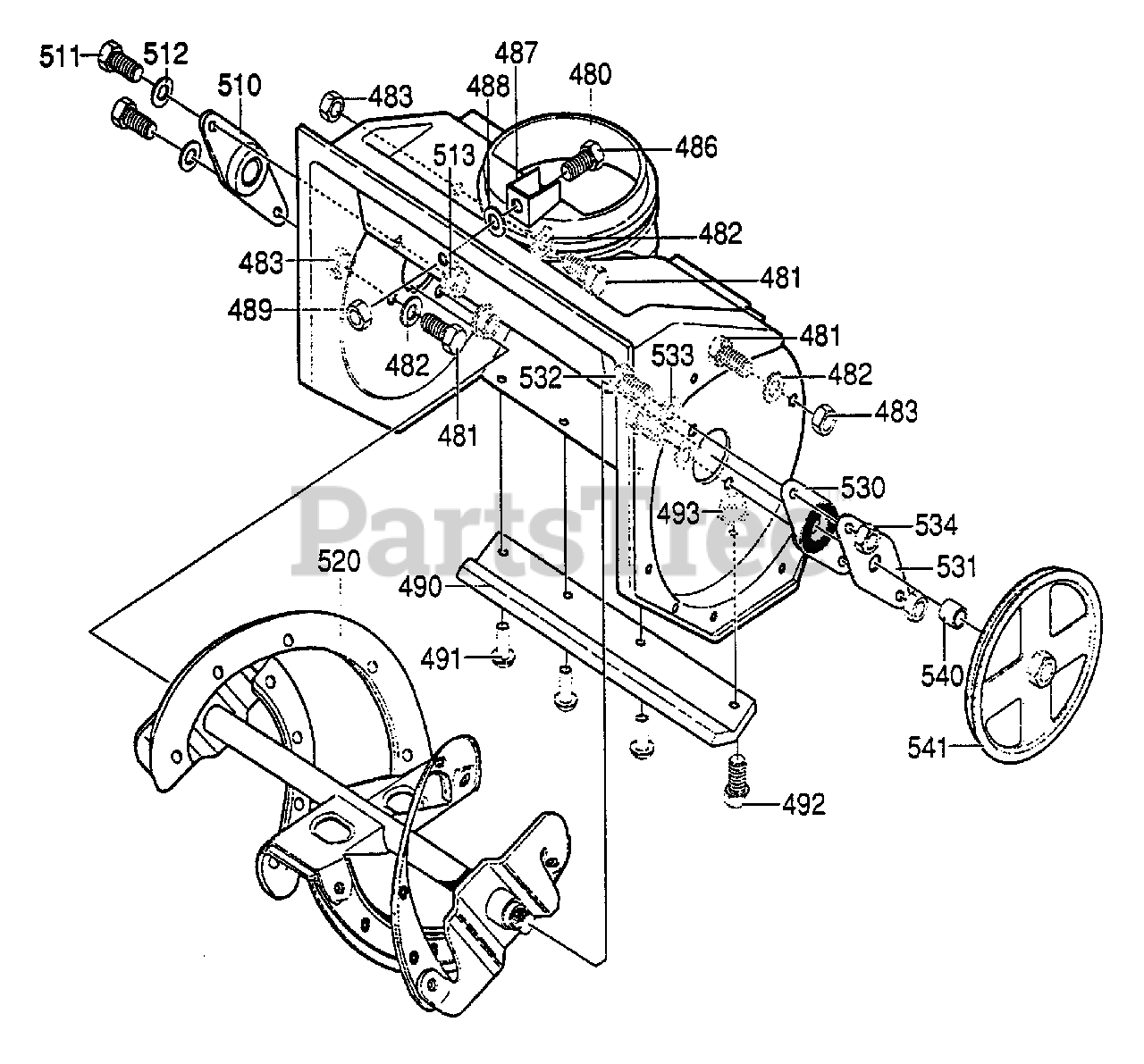

Auger Housing Parts Diagram

  • Title

480

Husqvarna 601001373

HOUSING, RING & AUGER

$

$

Not available

481

Husqvarna 601000068

SCREW, 1/4-20 X .75

$

$

Not available

482

Husqvarna 601000018

FLATWASHER .281 X .63 X .065

$

$

Not available

483

Husqvarna 601000062

NUT, 1/4-20
(Superseded to 601002318)

$7.99

$

In Stock, only 2 left!

0

486

Husqvarna 601001374

SCREW, 1/4-20 X .63

$

$

Not available

487

Husqvarna 601001375

BRACKET, STOP

$

$

Not available

488

Husqvarna 601001376

FLATWASHER .333 X .87 X .119

$

$

Not available

489

Husqvarna 601000062

NUT, 1/4-20
(Superseded to 601002318)

$7.99

$

In Stock, only 2 left!

0

490

Husqvarna 601001377

BLADE, SCRAPER
(Superseded to 601002476)

$

$

Not available

491

Husqvarna 601001378

RIVET

$

$

Not available

492

Husqvarna 601000068

SCREW, 1/4-20 X .75

$

$

Not available

493

Husqvarna 601000827

NUT, 1/4-20

$4.99

$

In Stock, only 4 left!

0

510

Husqvarna 601001379

BRNG, FL
(Superseded to 601002153)

$

$

Not available

511

Husqvarna 601001380

SCREW, 1/4-20 X .88

$

$

Not available

512

Husqvarna 601000018

FLATWASHER .281 X .63 X .065

$

$

Not available

513

Husqvarna 601000827

NUT, 1/4-20

$4.99

$

In Stock, only 4 left!

0

520

Husqvarna 601001371

AUGER, ASSY COMP

$

$

Not available

530

Husqvarna 601001372

BRNG & PLATE, ASSY

$

$

Not available

531

Husqvarna 601001381

RETAINER, BRNG

$

$

Not available

532

Husqvarna 601000067

SCREW, 1/4-20 X .62

$

$

Not available

533

Husqvarna 601000018

FLATWASHER .281 X .63 X .065

$

$

Not available

534

Husqvarna 601000062

NUT, 1/4-20
(Superseded to 601002318)

$7.99

$

In Stock, only 2 left!

0

540

Husqvarna 601001382

SPACER, SLEEVE

$

$

Not available

541

Husqvarna 601001383

PULLEY, POLY 6"

$

$

Not available
