ST 20 E - Husqvarna 20" Snow Blower (1995-01) Engine Parts Diagram

20" Snow Blower

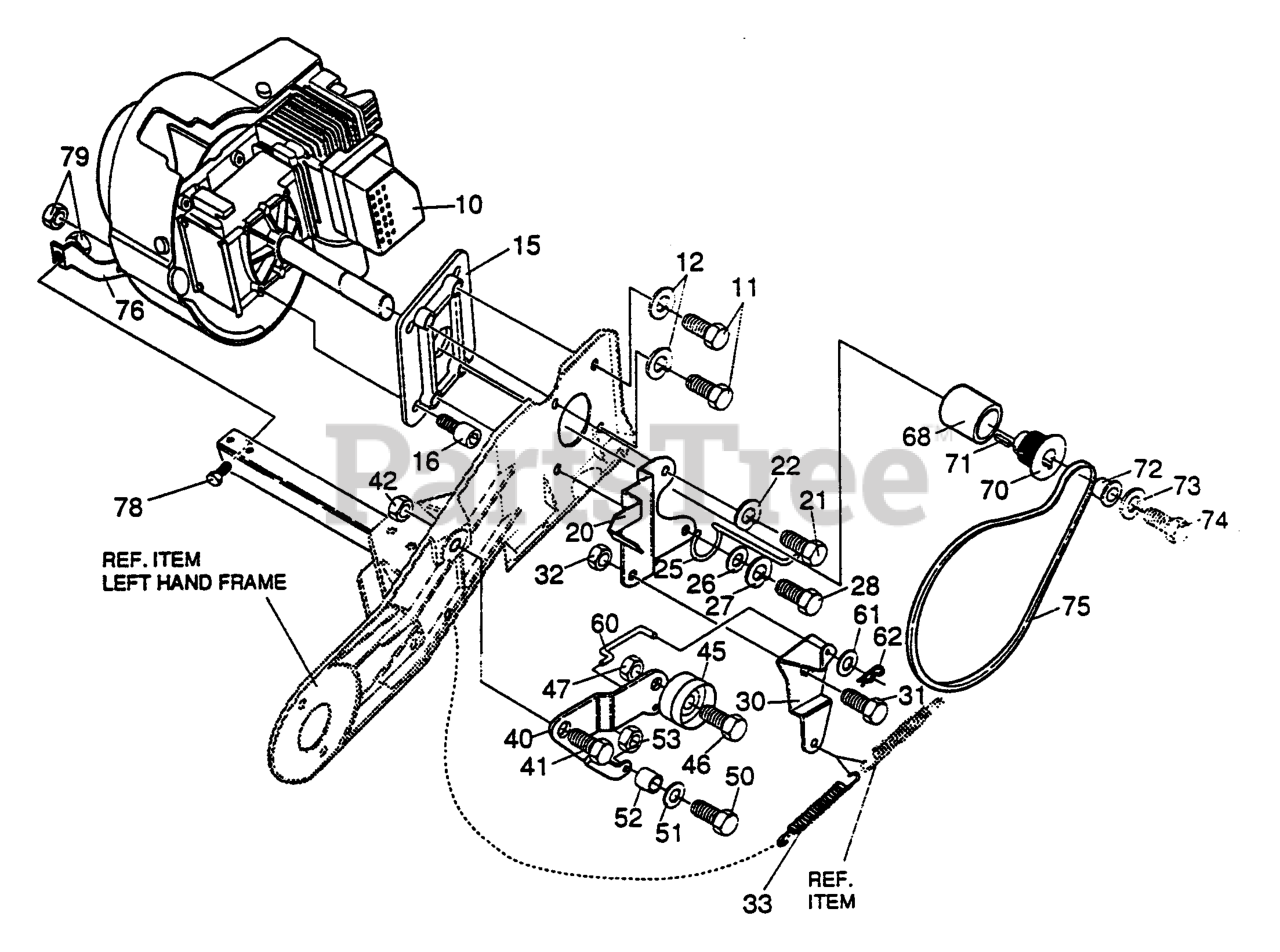

Engine Parts Diagram

  • Title

10

ENGINE, 4HP 2CYL

Note: (SEE ENGINE MANUAL)

$

$

Not available

11

Husqvarna 601001323

PLATE, ENGINE ADAPTOR

$

$

Not available

12

Husqvarna 601001324

SCREW

$

$

Not available

15

Husqvarna 601000078

SCREW, 5/16-24X .63 HHC

$

$

Not available

16

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

20

Husqvarna 601001325

BRACKET, IDLER PIVOT

$

$

Not available

21

Husqvarna 601000078

SCREW, 5/16-24X .63 HHC

$

$

Not available

22

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

25

Husqvarna 601001326

GUIDE, BELT

$

$

Not available

26

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$

$

Not available

27

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

28

Husqvarna 601001327

SCREW

$

$

Not available

30

Husqvarna 601001328

ARM, IDLER PIVOT

$

$

Not available

31

Husqvarna 601001329

BOLT

$

$

Not available

32

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

33

Husqvarna 601001330

SPRING, EXTENSION .38X.039X2.5

$

$

Not available

40

Husqvarna 601001331

ARM, IDLER

$

$

Not available

41

Husqvarna 601001332

BOLT
(Superseded to 601001329)

$

$

Not available

42

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0

45

Husqvarna 601001333

IDLER PULLEY

$

$

Not available

46

Husqvarna 601001334

SCREW, 3/8-16 X 1.50

$

$

Not available

47

Husqvarna 601001335

NUT

$

$

Not available

50

Husqvarna 601001293

SCREW

$

$

Not available

51

Husqvarna 601000018

WASHER, FLAT .281X .63X.

$

$

Not available

52

Husqvarna 601001336

ROLLER, BELT

$

$

Not available

53

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$14.99

$

Usually ships in 3-10 days

0

60

Husqvarna 601001337

ROD, CLUTCH LINKAGE

$

$

Not available

61

Husqvarna 601000533

WASHER, FLAT .188X .38X.

$

$

Not available

62

Husqvarna 601000026

PIN, COTTER .0625X.75LG

$

$

Not available

68

OPTIONAL

$

$

Not available

70

Husqvarna 601001338

PULLEY ENGINE

$

$

Not available

71

Husqvarna 601001339

KEY

$

$

Not available

72

Husqvarna 601001340

PLUG, ENGINE PULLEY

$

$

Not available

73

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

74

Husqvarna 601001341

SCREW
(Superseded to 601001327)

$

$

Not available

75

Husqvarna 601001342

BELT

$

$

Not available

76

Husqvarna 601001343

BRACKET

$

$

Not available

78

Husqvarna 601001006

SCREW 5/16X18

$

$

Not available

79

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

Usually ships in 3-10 days

0
