ST 20 E - Husqvarna 20" Snow Blower (1995-01) Frame Components Parts Diagram

20" Snow Blower

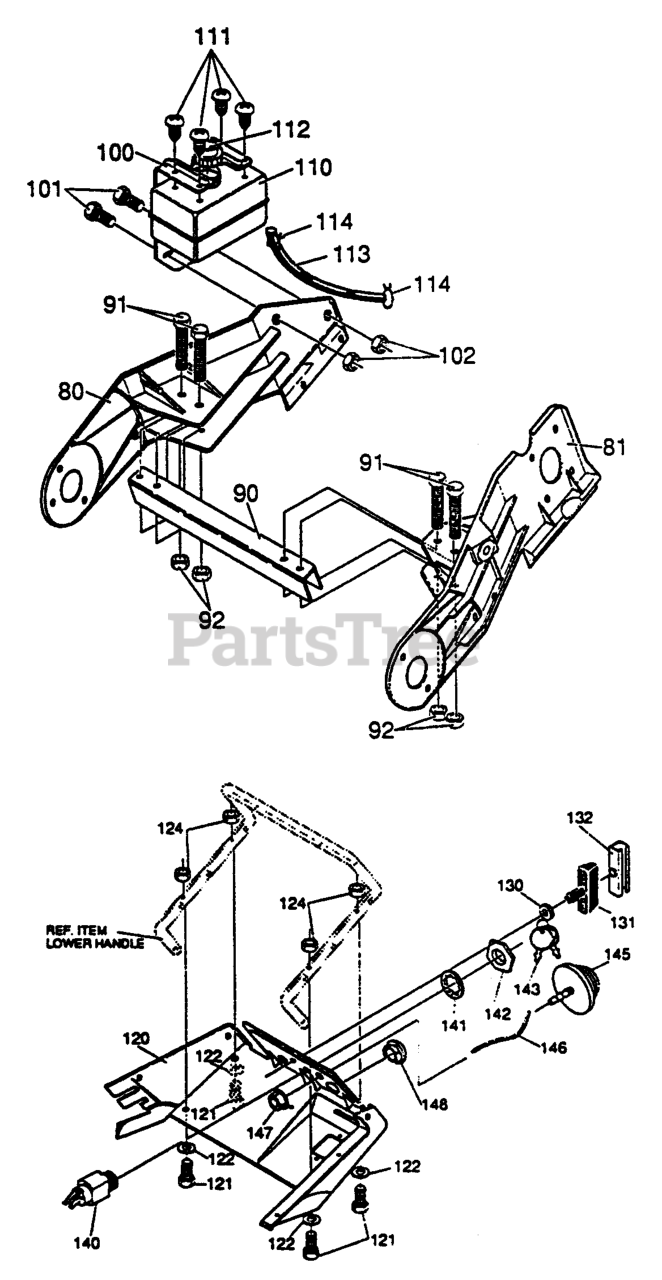

Frame Components Parts Diagram

  • Title

80

Husqvarna 601001345

FRAME, RH

$

$

Not available

81

Husqvarna 601001346

FRAME, LH

$

$

Not available

90

Husqvarna 601001347

CHANNEL, FRAME SUPPORT

$

$

Not available

91

Husqvarna 601001348

SCREW, 1/4-20 X 2.00

$

$

Not available

92

Husqvarna 601001362

PRIMER

$

$

Not available

100

Husqvarna 601001349

BRACKET, FUEL TANK

$

$

Not available

101

Husqvarna 601000068

SCREW, 1/4-20X .75 HHC

$

$

Not available

102

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$14.99

$

Usually ships in 3-10 days

0

110

Husqvarna 601001350

FUEL TANK

$

$

Not available

111

Husqvarna 601001351

SCREW

$

$

Not available

112

Husqvarna 601001352

GAS CAP

$

$

Not available

113

Husqvarna 601001353

FUEL HOSE

$

$

Not available

114

Husqvarna 601000554

CLAMP, HOSE

$

$

Not available

120

Husqvarna 601001354

COVER

$

$

Not available

121

Husqvarna 601000069

SCREW, 1/4-20X1.25 HHC
(Superseded to 601001857)

$

$

Not available

122

Husqvarna 601000018

WASHER, FLAT .281X .63X.

$

$

Not available

124

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$14.99

$

Usually ships in 3-10 days

0

130

Husqvarna 601001355

GROMMET & WASHER

$

$

Not available

131

Husqvarna 601001356

KNOB

$

$

Not available

132

Husqvarna 601001357

INSERT

$

$

Not available

140

Husqvarna 601001358

SWITCH

$

$

Not available

141

Husqvarna 601001359

WASHER

$

$

Not available

142

Husqvarna 601001360

NUT

$

$

Not available

143

Husqvarna 601001361

2 KEYS & RING

$

$

Not available

145

Husqvarna 601001362

PRIMER

$

$

Not available

146

Husqvarna 601001363

HOSE,PRIMER 5.75 TEC

$

$

Not available

147

Husqvarna 601000102

NUT, 1/4-20 REGHEXKEPS

$

$

Not available

148

Husqvarna 601001364

PLUG

$

$

Not available
