ST 2046 (2691202-00) - Snapper 46" Lawn Tractor, 20hp 46" Mower Deck Group Parts Diagram

46" Lawn Tractor, 20hp

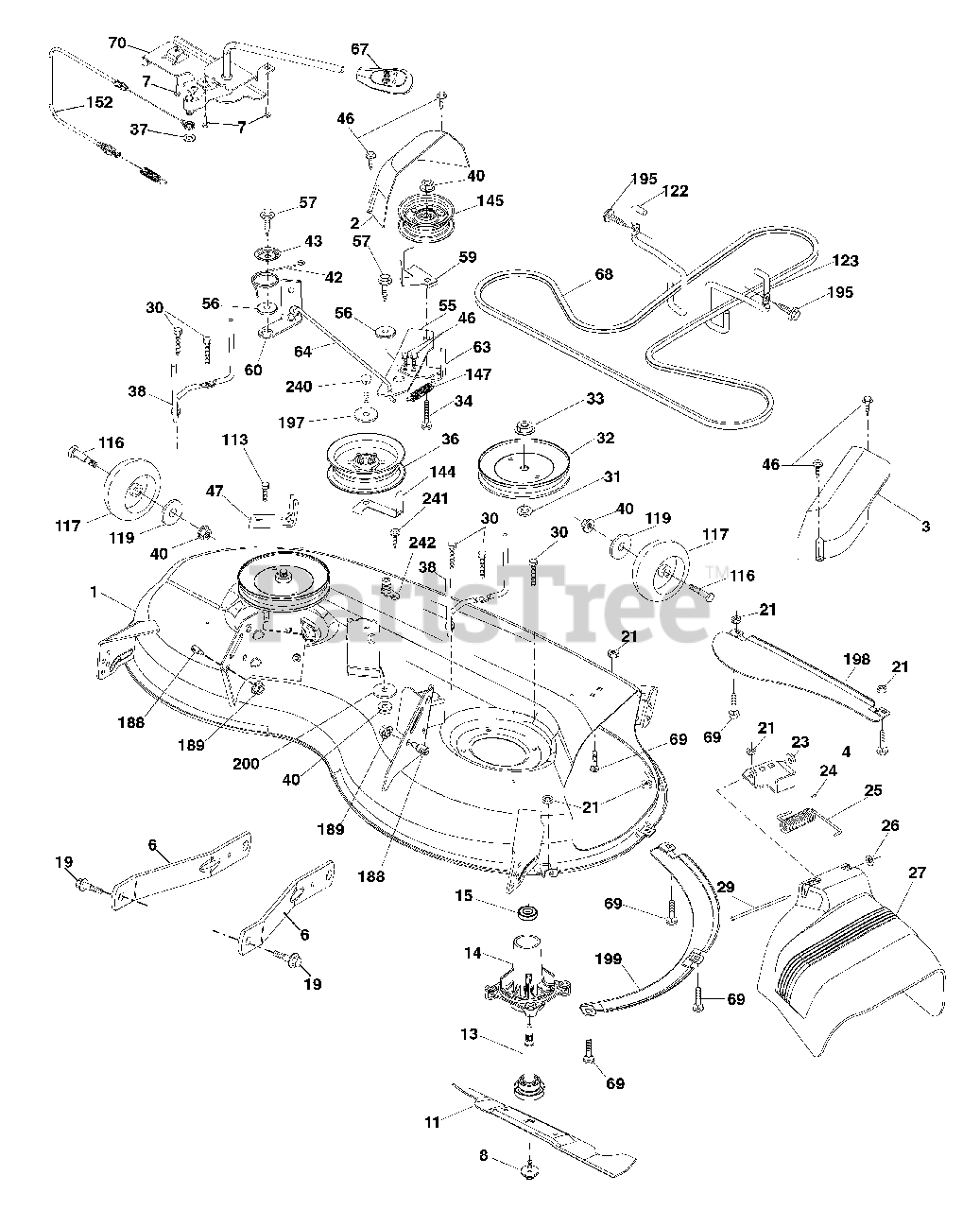

46" Mower Deck Group Parts Diagram

  • Title

1

Snapper 705315

Mower Housing
(Superseded to 709832)

$1085.99

$

Usually ships in 2-12 days

0

2

Snapper 705172

Cover Mandrel LH

$21.99

$

Usually ships in 2-12 days

0

3

Snapper 705171

Cover Mandrel RH

$24.99

$

In Stock, only 1 left!

0

4

Snapper 705363

Bolt Hex Hd 5/16-18unc

$5.49

$

Usually ships in 2-12 days

0

6

Snapper 705090

Arm Suspension

$26.99

$

Usually ships in 2-12 days

0

7

Snapper 705233

Screw #10 x 0.750 BOS Thread

$4.99

$

Usually ships in 2-12 days

0

8

Snapper 705059

Bolt/Washer Asm 7/16-20 unf

$19.99

$

In Stock, only 2 left!

0

11

Snapper 704425

Blade Mower Hi-Lift

$40.99

$

In Stock, only 2 left!

0

13

Snapper 705058

Shaft Assembly, Mandrel
(Superseded to 705057)

$106.99

$

In Stock, only 2 left!

0

14

Snapper 705048

Housing, Mandrel
(Superseded to 705057)

$106.99

$

In Stock, only 2 left!

0

15

Snapper 704992

Bearing, Ball, Mandrel

$23.99

$

In Stock, only 1 left!

0

19

Snapper 705100

Bolt, Shoulder

$15.99

$

Usually ships in 2-12 days

0

21

Snapper 705349

Nut

$9.99

$

In Stock, Qty 5

0

23

Snapper 705056

Bracket, Deflector

$9.99

$

In Stock, only 1 left!

0

24

Snapper 704988

Cap, Sleeve

$9.99

$

In Stock, only 1 left!

0

25

Snapper 705103

Spring, Torsion, Deflector

$18.99

$

In Stock, only 1 left!

0

26

Snapper 704991

Nut, Push

$7.99

$

In Stock, only 3 left!

0

27

Snapper 705435

Shield, Deflector

$179.99

$

Usually ships in 2-12 days

0

29

Snapper 705009

Rod, Hinge

$7.99

$

Usually ships in 2-12 days

0

30

Snapper 705033

Screw Thdrol Rolling Wsh Hd
(Superseded to 709771)

$7.49

$

In Stock, Qty 20+

0

31

Snapper 705050

Washer, Spacer

$7.99

$

In Stock, only 3 left!

0

32

Snapper 705115

Pulley, Mandrel
(Superseded to 709731)

$34.99

$

In Stock, only 1 left!

0

33

Snapper 705134

Nut, Toplock, Flanged

$11.99

$

In Stock, only 2 left!

0

34

Snapper 705340

Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5

$9.49

$

Usually ships in 2-12 days

0

36

Snapper 705114

Pulley, Idler
(Superseded to 709729)

$70.99

$

In Stock, only 4 left!

0

37

Snapper 705335

Washer 13/32 x 13/16 x 16 Ga.

$5.99

$

Usually ships in 2-12 days

0

38

Snapper 705248

Keeper Belt Mandrel

$17.99

$

Usually ships in 2-12 days

0

40

Snapper 705353

Nut, Lock Flg. 3/8-16 unc
(Superseded to 709321)

$9.99

$

In Stock, only 1 left!

0

42

Snapper 705123

Spring Torsion Brake

$9.99

$

Usually ships in 2-12 days

0

43

Snapper 705108

Spring Torsion Retainer

$8.49

$

Usually ships in 2-12 days

0

46

Snapper 705013

Screw

$8.99

$

In Stock, only 1 left!

0

47

Snapper 705105

Bracket Clutch Cable

$8.99

$

Usually ships in 2-12 days

0

55

Snapper 705104

Arm, Idler

$

$

Not available

56

Snapper 705124

Spacer, Retainer

$12.99

$

In Stock, Qty 5

0

57

Snapper 705323

Screw Hexwsh Thd 3/8-16 x 1

$10.99

$

Usually ships in 2-12 days

0

59

Snapper 705018

Guard, Tuv Idler (94)

$9.99

$

Usually ships in 2-12 days

0

60

Snapper 705127

Arm Brake Mower

$38.99

$

Usually ships in 2-12 days

0

63

Snapper 705128

Arm Brake Mower

$41.99

$

Usually ships in 2-12 days

0

64

Snapper 705162

Linkage Brake
(Superseded to 709794)

$65.99

$

Usually ships in 2-12 days

0

67

Snapper 705150

Handle, Clutch Cable

$22.99

$

Usually ships in 2-12 days

0

68

Snapper 704427

V-Belt
(Superseded to 709795)

$77.99

$

In Stock, only 1 left!

0

69

Snapper 705344

Bolt

$7.99

$

Usually ships in 2-12 days

0

70

Snapper 705131

Clutch Asm. Manual

$148.99

$

Usually ships in 2-12 days

0

113

Snapper 705320

Screw 5/16-18

$10.99

$

Usually ships in 2-12 days

0

116

Snapper 705003

Bolt, Shoulder

$6.49

$

In Stock, Qty 7

0

117

Snapper 705051

Wheel, Gauge

$13.99

$

In Stock, Qty 5

0

119

Snapper 705333

Washer 13/32 x 7/8 x 14 Ga.

$

$

Currently unavailable

122

Snapper 705109

Keeper Belt Eng. LH

$

$

Not available

123

Snapper 705110

Keeper Belt Eng. RH

$32.99

$

In Stock, only 1 left!

0

144

Snapper 705126

Keeper Belt

$13.99

$

Usually ships in 2-12 days

0

145

Snapper 705061

Pulley Idler Primary
(Superseded to 708000)

$60.99

$

Usually ships in 2-12 days

0

147

Snapper 705147

Spring Return

$9.49

$

In Stock, only 1 left!

0

152

Snapper 705292

Cable Clutch Manual w/Spr.

$70.99

$

In Stock, Qty 5

0

188

Snapper 705088

Stud Fastener

$12.99

$

In Stock, only 2 left!

0

189

Snapper 705352

Nut Lock Hex Flange

$5.99

$

Usually ships in 2-12 days

0

195

Snapper 705322

Screw 3/8-16 x 3/4

$6.49

$

Usually ships in 2-12 days

0

197

Snapper 705334

Washer 13/32 x 13/16 x 12 Ga.

$

$

Currently unavailable

198

Snapper 705153

Baffle Center Front

$47.99

$

In Stock, only 2 left!

0

199

Snapper 705154

Baffle Front RH

$53.99

$

Usually ships in 2-12 days

0

200

Snapper 705228

Washer 13/32 x 1 x 1/2 11 Ga.

$6.99

$

Usually ships in 2-12 days

0

240

Snapper 705361

Bolt Fin Hex 3/8-16 x 2-1/4 Gr. 5

$5.99

$

In Stock, only 1 left!

0

241

Snapper 705025

Screw

$10.99

$

Usually ships in 2-12 days

0

242

Snapper 705231

Washout Port

$16.99

$

In Stock, only 1 left!

0

--

Snapper 705057

Mandrel Assembly (Includes housing (Key #14), shaft assembly (Key #13), and bearing (Key #15) only - pulley/nut/washer and blade bolt/washers not included)

$106.99

$

In Stock, only 2 left!

0

--

Snapper 705234

Quick Connect Coupling

$7.99

$

In Stock, only 1 left!

0

--
