ST 2106 (961910020-02) - Jonsered Snow Thrower (2007-10) HANDLE Parts Diagram

Snow Thrower

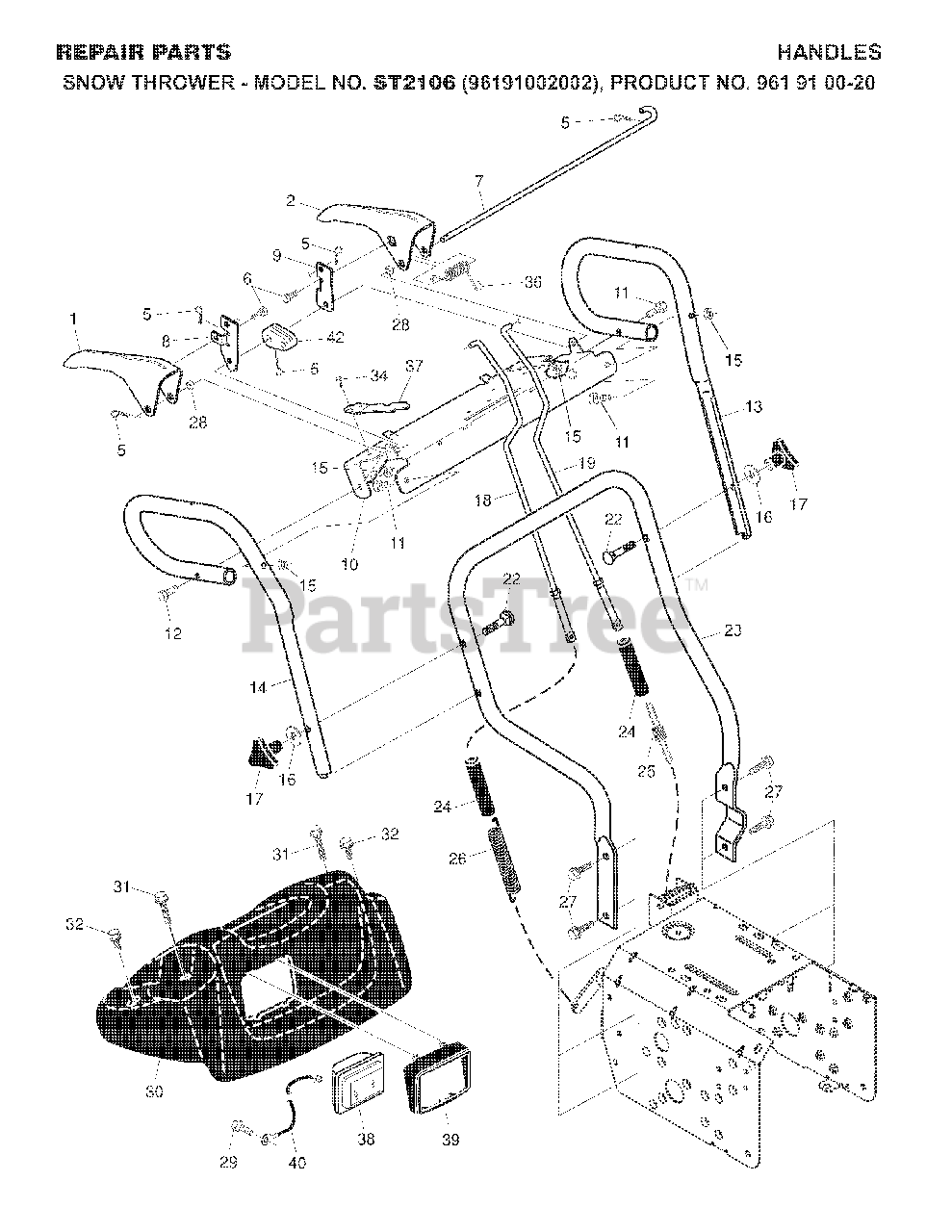

HANDLE Parts Diagram

  • Title

1

Jonsered 532415542

LEVER.CONTROL.RH.PNT
(Superseded to 580687702)

$31.99

$

Usually ships in 3-10 days

0

2

Jonsered 532415541

LEVER.CONTROL.LH.PNT
(Superseded to 532412681)

$

$

Not available

5

Jonsered 532169675

SPRING RETAINER

$7.49

$

In Stock, only 4 left!

0

6

Jonsered 817060408

SCREW

$4.99

$

Usually ships in 3-10 days

0

7

Jonsered 532412677

BAIL.CONTROL.INTERLOCK

$12.99

$

In Stock, only 1 left!

0

8

Jonsered 532199576

ARM,IMPELLER ROD
(Superseded to 532196333)

$

$

Not available

9

Jonsered 532415546

ARM.TRACTION.ROD.YZ

$4.99

$

Usually ships in 3-10 days

0

10

Jonsered 532415539

PANEL.CONTROL.PNT.BLACK

$27.99

$

Usually ships in 3-10 days

0

11

Jonsered 874780524

HEX BOLT
(Superseded to 596582201)

$3.99

$

In Stock, Qty 18

0

12

Jonsered 874780528

SCREW

$7.49

$

In Stock, only 4 left!

0

13

Jonsered 532415264

TUBE.HANDLE.LOOP.LH.BLACK
(Superseded to 532436114)

$66.99

$

Usually ships in 3-10 days

0

14

Jonsered 532415265

TUBE.HANDLE.LOOP.RH.BLACK
(Superseded to 532421121)

$72.99

$

Usually ships in 3-10 days

0

15

Jonsered 532751153

NUT, LOCK 5/16-18

$4.99

$

In Stock, Qty 9

0

16

Jonsered 819131316

WASHER

$4.99

$

In Stock, Qty 9

0

17

Jonsered 532178899

KNOB.HANDLE.3/8.TRI-POINT.BLAC

$8.99

$

In Stock, Qty 6

0

18

Jonsered 532180480

ROD.ASM.IMPELLER

$

$

Not available

19

Jonsered 532180481

ROD.ASM.TRACTION.

$27.99

$

Usually ships in 3-10 days

0

22

Jonsered 872120618

BOLT 3/8-16 X 2-1/4

$7.49

$

Usually ships in 3-10 days

0

23

Jonsered 532184087

TUBE.LOWER.HANDLE.24.BLACK

$

$

Not available

24

Jonsered 532180447

SLEEVE, SPRING

$6.49

$

In Stock, only 2 left!

0

25

Jonsered 532180926

SPRING, TRACTION DRIVE

$7.49

$

In Stock, Qty 7

0

26

Jonsered 532178669

SPRING, AUGER CONTROL

$8.99

$

In Stock, Qty 6

0

27

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 14

0

28

Jonsered 532412680

SPACER CONTROL LEVER

$

$

Not available

29

Jonsered 532408059

No Description Available

$

$

Not available

30

Jonsered 532183346

PANEL.CONSOLE.HEADLIGHTS

$36.99

$

Usually ships in 3-10 days

0

31

Jonsered 532175262

SCREW, HEX HD TAPPING #10-24 1

$7.49

$

In Stock, only 4 left!

0

32

Jonsered 532184471

SCREW, HEX HEAD, TAPPING

$4.99

$

Usually ships in 3-10 days

0

34

Jonsered 817060410

SCREW 14-20 X 5/8

$7.49

$

In Stock, only 2 left!

0

36

Jonsered 532178831

RP SPRING, TORSION
(Superseded to 532443215)

$6.49

$

In Stock, only 2 left!

0

37

Jonsered 532416288

SPRING.INTERLOCK
(Superseded to 532412675)

$

$

Not available

38

Jonsered 532178666

HEADLIGHT, HALOGEN

$145.99

$

Usually ships in 3-10 days

0

-

Jonsered 532401620

BULB.HEADLIGHT.HALOGEN.

$80.99

$

Usually ships in 3-10 days

0

39

Jonsered 532178668

BEZEL.HEADLIGHT.BLACK

$

$

Not available

40

Jonsered 532180964

HARNESS.WIRE.HALOGEN

$27.99

$

In Stock, only 3 left!

0

42

Jonsered 532414572

RP CAM.INTERLOCK.RELEASE
(Superseded to 532445291)

$4.99

$

In Stock, only 1 left!

0
