ST 2106 (961910020-05) - Jonsered Snow Thrower (2009-08) DRIVE Parts Diagram

Snow Thrower

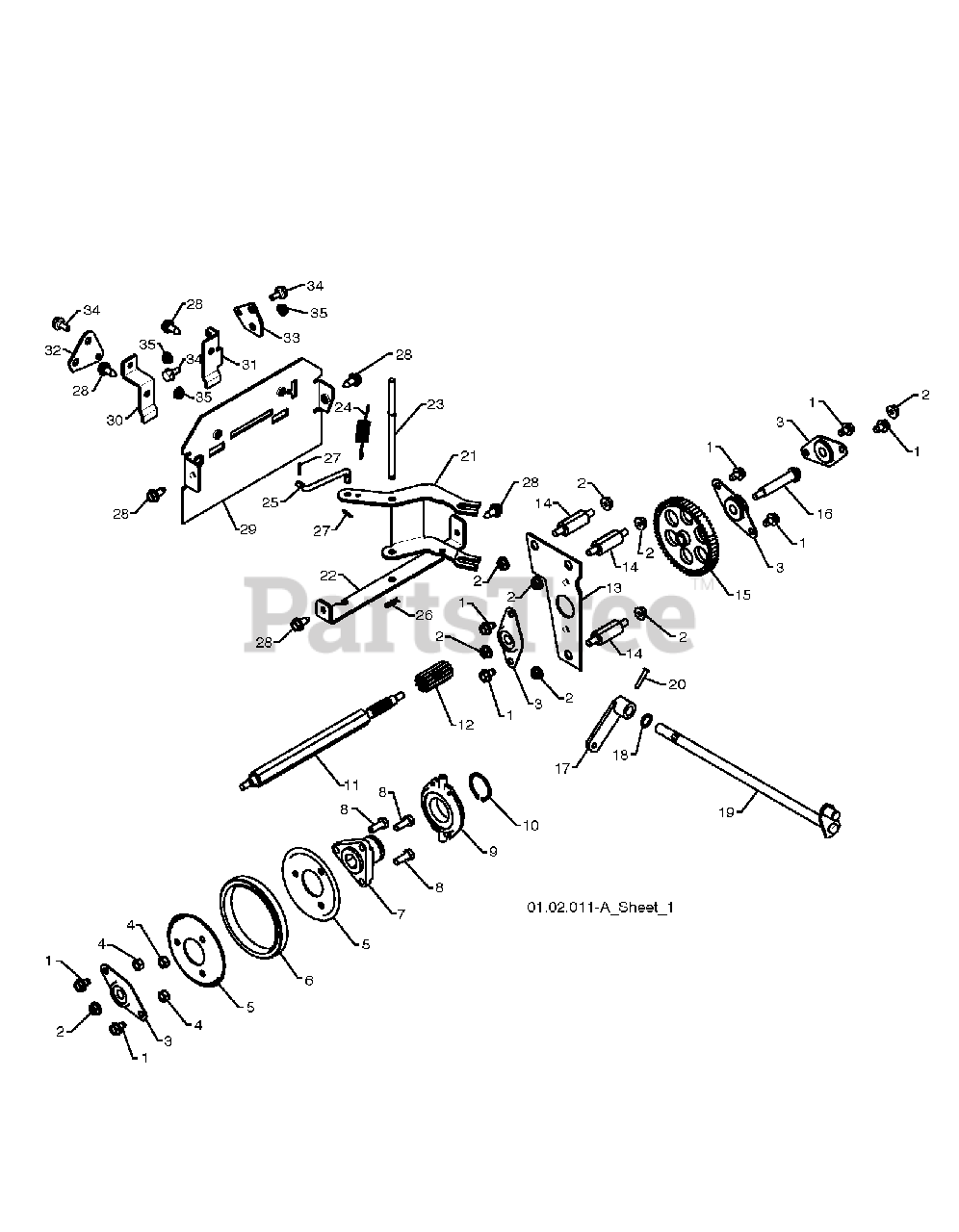

DRIVE Parts Diagram

  • Title

1

Jonsered 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

2

Jonsered 532751153

NUT, LOCK 5/16-18

$4.99

$

In Stock, Qty 9

0

3

Jonsered 532180017

BEARING, FLANGE

$24.99

$

Usually ships in 3-10 days

0

4

Jonsered 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 2 left!

0

5

Jonsered 532199509

PLATE.RUBBER.WHEEL
(Superseded to 532198176)

$

$

Not available

6

Jonsered 532179831

RING, RUBBER WHEEL
(Superseded to 585021001)

$24.99

$

In Stock, Qty 8

0

7

Jonsered 532178613

HUB, RUBBER WHEEL

$30.99

$

Usually ships in 3-10 days

0

8

Jonsered 874760514

BOLT

$6.49

$

Usually ships in 3-10 days

0

9

Jonsered 532175344

TRUNNION BEARING ASSY

$27.99

$

Usually ships in 3-10 days

0

10

Jonsered 812000012

RETAINING RING
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

11

Jonsered 532180066

SHAFT.HEX.LONG

$

$

Not available

12

Jonsered 532180065

GEAR, PINION

$

$

Not available

13

Jonsered 532192907

AUXILLARY PLATE
(Superseded to 532192616)

$6.49

$

Usually ships in 3-10 days

0

14

Jonsered 532179270

SPACER, PLATE

$4.99

$

Usually ships in 3-10 days

0

15

Jonsered 532180082

GEAR, INTERMEDIATE
(Superseded to 532441417)

$265.99

$

In Stock, only 1 left!

0

16

Jonsered 532180134

SHAFT, AUXILIARY

$

$

Not available

17

Jonsered 532405485

ARM, AUGER CONTROL

$10.99

$

In Stock, only 1 left!

0

18

Jonsered 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 20+

0

19

Jonsered 532426490

PULLEY.ENG.TRACTION

$15.99

$

In Stock, only 1 left!

0

20

Jonsered 532198580

CLEVIS PIN

$6.49

$

Usually ships in 3-10 days

0

21

Jonsered 532184080

LEVER, SPEED CONTROL

$

$

Not available

22

Jonsered 532187857

BRACKET, PIVOT, SHIFT
(Superseded to 532186951)

$7.49

$

Usually ships in 3-10 days

0

23

Jonsered 532178807

PIN, PIVOT

$4.99

$

Usually ships in 3-10 days

0

24

Jonsered 532180135

SPRING, BIAS

$6.49

$

In Stock, Qty 10

0

25

Jonsered 532187101

LINK, SPEED CONTROL

$

$

Not available

26

Jonsered 532085179

RETAINER CLIP PM

$7.49

$

Usually ships in 3-10 days

0

27

Jonsered 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

28

Jonsered 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 20+

0

29

Jonsered 532417539

No Description Available

$

$

Not available

30

Jonsered 532415433

BRACKET.SHIFTER.PLATE.BZP

$4.99

$

Usually ships in 3-10 days

0

31

Jonsered 532416864

BRACKET.CLUTCH.PLATE.BZP

$4.99

$

Usually ships in 3-10 days

0

32

Jonsered 532415450

PLATE.SHIFTER.BZP

$4.99

$

In Stock, only 3 left!

0

33

Jonsered 532415435

PLATE.CLUTCH.BZP

$2.99

$

Usually ships in 3-10 days

0

34

Jonsered 532402881

BOLT.SHOULDER.3/X.25

$4.99

$

Usually ships in 3-10 days

0

35

Jonsered 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 8

0
