ST 2106 (961910020-06) - Jonsered Snow Thrower (2009-09) CHASSIS / FRAME Parts Diagram

Snow Thrower

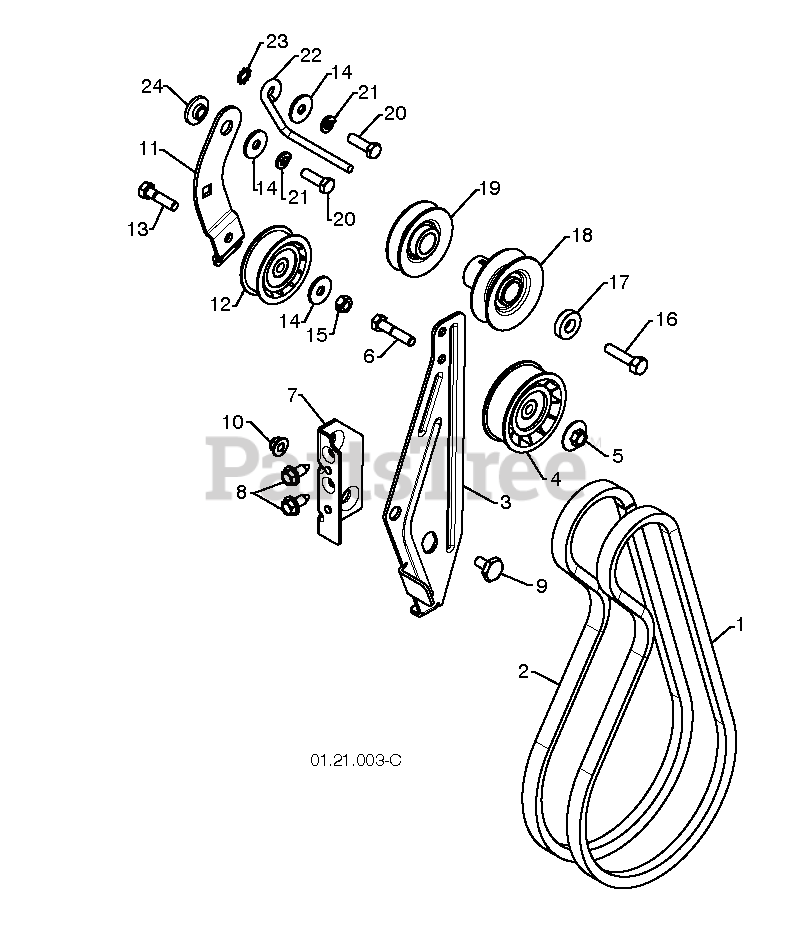

CHASSIS / FRAME Parts Diagram

  • Title

1

Jonsered 532408007

BELT.V.IMPELLER

$43.99

$

In Stock, Qty 20+

0

2

Jonsered 532419744

V-BELT.TRACTION

$34.99

$

In Stock, Qty 20+

0

3

Jonsered 532435802

RP ARM.IDLER.BRAKE
(Superseded to 584232402)

$

$

Not available

4

Jonsered 532180523

PULLEY.W/SPACER.2.75
(Superseded to 594095301)

$13.99

$

Usually ships in 3-10 days

0

5

Jonsered 532426589

NUT.FLANGE.HEX.5/16X18.BLACK

$4.99

$

In Stock, Qty 12

0

6

Jonsered 874780524

HEX BOLT
(Superseded to 539976935)

$3.49

$

In Stock, Qty 12

0

7

Jonsered 532435801

RP BRACKET.IDLER
(Superseded to 532423990)

$

$

Not available

8

Jonsered 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$5.99

$

In Stock, Qty 11

0

9

Jonsered 532424297

BOLT.SHOULDER.1/2X12

$

$

Not available

10

Jonsered 532751153

NUT, LOCK 5/16-18

$3.49

$

In Stock, Qty 20+

0

11

Jonsered 532187786

ARM, IDLER
(Superseded to 585238401)

$34.99

$

Usually ships in 3-10 days

0

12

Jonsered 532180522

PULLEY.W/SPACER.2.25

$28.99

$

In Stock, only 2 left!

0

13

Jonsered 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 595305701)

$4.99

$

In Stock, Qty 14

0

14

Jonsered 532059289

STEEL WASHER

$4.99

$

In Stock, only 2 left!

0

15

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.49

$

In Stock, Qty 20+

0

16

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

17

Jonsered 532400026

WASHER, FLAT 3/8

$9.49

$

In Stock, only 3 left!

0

18

Jonsered 532426491

PULLEY.IMPELER.

$20.99

$

In Stock, only 2 left!

0

19

Jonsered 532426490

PULLEY.ENG.TRACTION

$14.99

$

In Stock, only 2 left!

0

20

Jonsered 874610516

SCREW

$4.99

$

In Stock, Qty 5

0

21

Jonsered 810040500

LOCKWASHER
(Superseded to 596238801)

$3.49

$

In Stock, only 3 left!

0

22

Jonsered 532155452

GUIDE BELT

$5.99

$

In Stock, Qty 8

0

23

Jonsered 811050500

WASHER EXT TOOTH LOCK 5/16
(Superseded to 596238801)

$3.49

$

In Stock, only 3 left!

0

24

Jonsered 532175331

BUSHING, IDLER PIVOT
(Superseded to 587343701)

$6.99

$

Usually ships in 3-10 days
