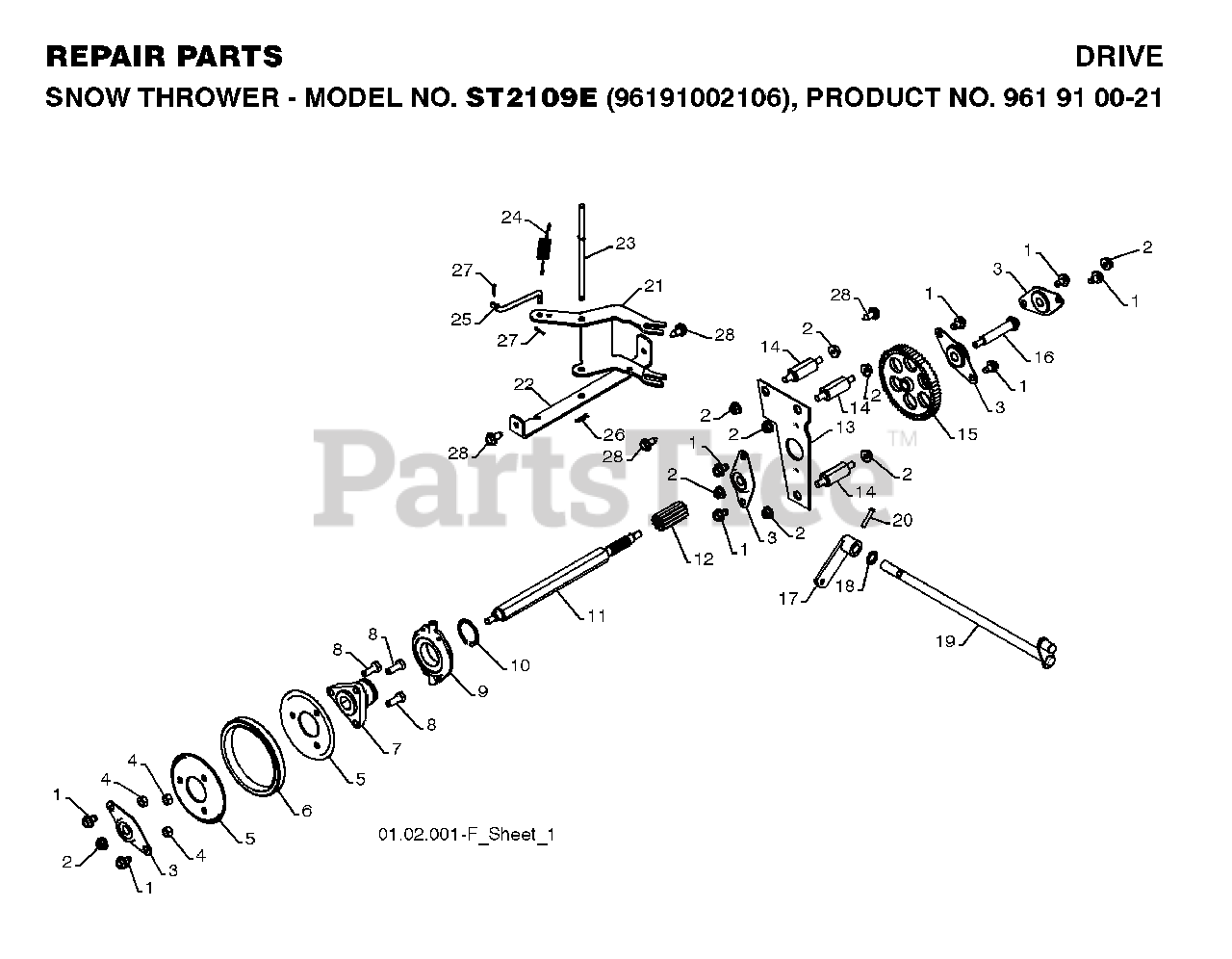

ST 2109 E (961910021-06) - Jonsered Snow Thrower (2008-10) DRIVE Parts Diagram

Snow Thrower

DRIVE Parts Diagram

  • Title

1

Jonsered 817490508

SCREW LT
(Superseded to 539990858)

$

$

Not available

2

Jonsered 532751153

NUT, LOCK 5/16-18

$3.49

$

In Stock, Qty 20+

0

3

Jonsered 532180017

BEARING, FLANGE

$28.99

$

Usually ships in 3-10 days

0

4

Jonsered 873930500

NUT.CENTERLOCK.5/16-

$3.49

$

In Stock, Qty 5

0

5

Jonsered 532199509

PLATE.RUBBER.WHEEL
(Superseded to 532435789)

$

$

Not available

6

Jonsered 532179831

RING, RUBBER WHEEL
(Superseded to 585021001)

$28.99

$

Usually ships in 3-10 days

0

7

Jonsered 532178613

HUB, RUBBER WHEEL

$28.99

$

Usually ships in 3-10 days

0

8

Jonsered 874760514

BOLT
(Superseded to 596322201)

$3.49

$

In Stock, Qty 8

0

9

Jonsered 532175344

TRUNNION BEARING ASSY
(Superseded to 597412801)

$37.99

$

In Stock, only 4 left!

0

10

Jonsered 812000012

RETAINING RING
(Superseded to 583607301)

$3.49

$

Usually ships in 3-10 days

0

11

Jonsered 532180066

SHAFT.HEX.LONG

$

$

Not available

12

Jonsered 532180065

GEAR, PINION

$

$

Not available

13

Jonsered 532192907

AUXILLARY PLATE
(Superseded to 532192616)

$

$

Not available

14

Jonsered 532179270

SPACER, PLATE

$13.99

$

Usually ships in 3-10 days

0

15

Jonsered 532180082

GEAR, INTERMEDIATE
(Superseded to 532441417)

$250.99

$

Usually ships in 3-10 days

0

16

Jonsered 532180134

SHAFT, AUXILIARY

$

$

Not available

17

Jonsered 532405485

ARM, AUGER CONTROL

$9.49

$

In Stock, Qty 6

0

18

Jonsered 532057079

THRUST WASHER

$2.49

$

In Stock, Qty 20+

0

19

Jonsered 532427542

CONTROL.SHAFT.ASM
(Superseded to 532429668)

$37.99

$

In Stock, only 2 left!

0

20

Jonsered 532198580

CLEVIS PIN

$3.49

$

In Stock, only 1 left!

0

21

Jonsered 532184077

LEVER.SHIFTER.PLATE.BLACK

$13.99

$

Usually ships in 3-10 days

0

22

Jonsered 532187857

BRACKET, PIVOT, SHIFT
(Superseded to 532435793)

$13.99

$

Usually ships in 3-10 days

0

23

Jonsered 532178807

PIN, PIVOT

$

$

Not available

24

Jonsered 532180135

SPRING, BIAS

$4.99

$

In Stock, Qty 5

0

25

Jonsered 532187101

LINK, SPEED CONTROL

$

$

Not available

26

Jonsered 532085179

RETAINER CLIP PM

$

$

Not available

27

Jonsered 532700279

RETAINER CLIP

$3.49

$

Usually ships in 3-10 days

0

28

Jonsered 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$5.99

$

In Stock, Qty 11

0
