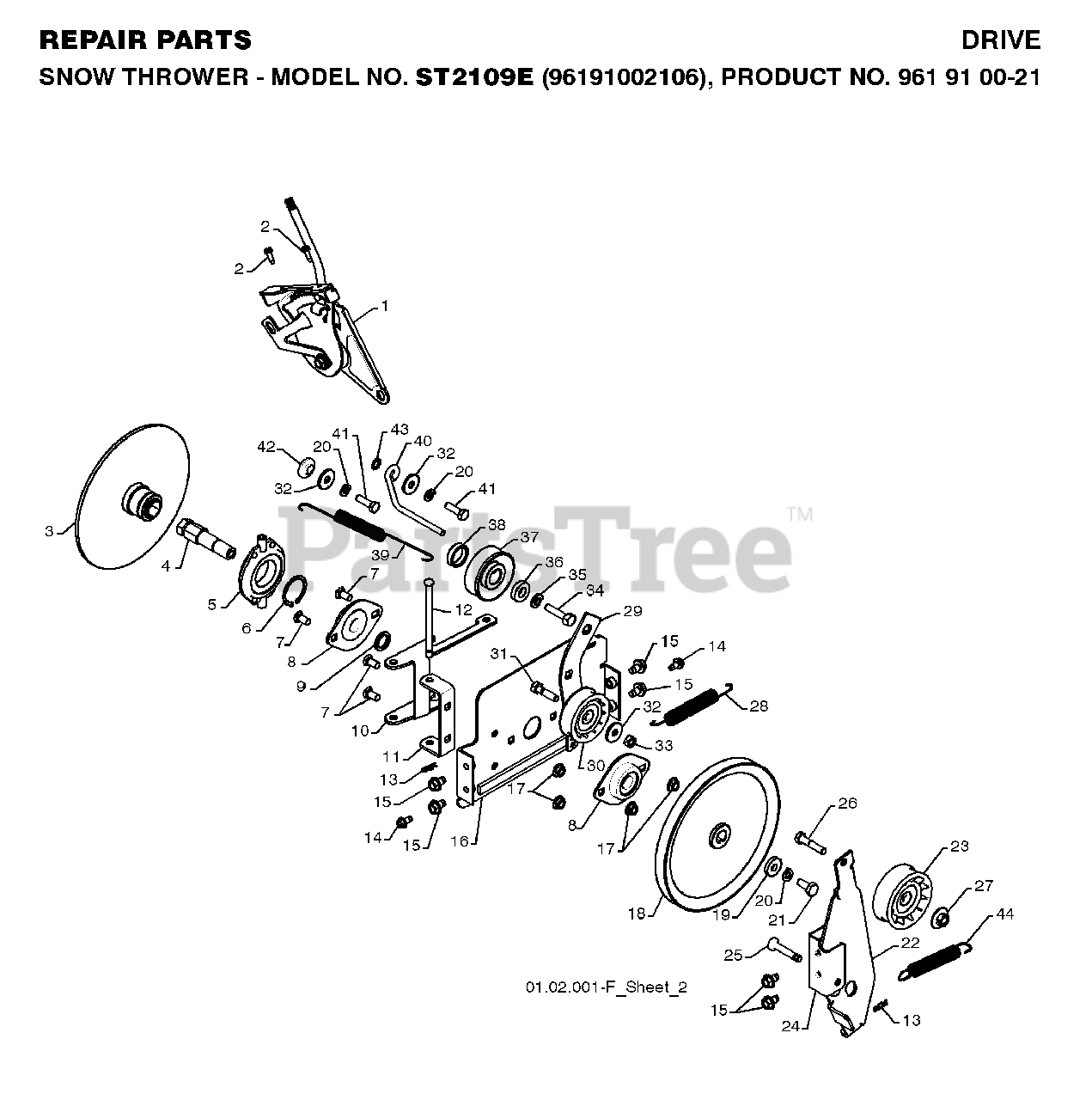

ST 2109 E (961910021-06) - Jonsered Snow Thrower (2008-10) DRIVE Parts Diagram

Snow Thrower

DRIVE Parts Diagram

  • Title

1

Jonsered 532198474

HEAD ASSY SPEED
(Superseded to 532429667)

$

$

Not available

2

Jonsered 817501010

SCREW #10-24 X 5/8

$

$

Not available

3

Jonsered 532197763

DRIVE PLATE WELDMENT

$

$

Not available

4

Jonsered 532197764

SHAFT.HEX.SHORT

$

$

Not available

5

Jonsered 532175344

TRUNNION BEARING ASSY
(Superseded to 597412801)

$37.99

$

In Stock, only 4 left!

0

6

Jonsered 812000012

RETAINING RING
(Superseded to 583607301)

$3.49

$

Usually ships in 3-10 days

0

7

Jonsered 872270505

BOLT
(Superseded to 596039401)

$2.49

$

In Stock, Qty 20+

0

8

Jonsered 532188909

BEARING FLANGE

$31.99

$

In Stock, Qty 12

0

9

Jonsered 532182504

SPACER, BEARING

$7.99

$

Usually ships in 3-10 days

0

10

Jonsered 532184077

LEVER.SHIFTER.PLATE.BLACK

$13.99

$

Usually ships in 3-10 days

0

11

Jonsered 532184076

BRACKET, SHIFTER SUPPORT
(Superseded to 532175349)

$

$

Not available

12

Jonsered 532178695

PIN, PIVOT LEVER

$5.99

$

In Stock, only 1 left!

0

13

Jonsered 532085179

RETAINER CLIP PM

$

$

Not available

14

Jonsered 817490408

SCREW
(Superseded to 596437001)

$3.49

$

In Stock, Qty 9

0

15

Jonsered 817490508

SCREW LT
(Superseded to 539990858)

$

$

Not available

16

Jonsered 532184075

PLATE.DRIVE.MOUNTING.BLACK

$

$

Not available

17

Jonsered 532155377

NUT.FLANGE.5/16
(Superseded to 596039201)

$3.49

$

In Stock, Qty 20+

0

18

Jonsered 532191080

PULLEY.TRACTION.7.75

$68.99

$

Usually ships in 3-10 days

0

19

Jonsered 819111507

WASHER, FLAT

$

$

Not available

20

Jonsered 810040500

LOCKWASHER
(Superseded to 596238801)

$3.49

$

In Stock, only 3 left!

0

21

Jonsered 874950512

SCREW

$4.99

$

In Stock, only 2 left!

0

22

Jonsered 532422111

ARM.IDLER.BRAKE.

$14.99

$

In Stock, only 1 left!

0

23

Jonsered 532180523

PULLEY.W/SPACER.2.75
(Superseded to 594095301)

$13.99

$

In Stock, only 2 left!

0

24

Jonsered 532184074

BRACKET, IDLER PIVOT
(Superseded to 532184789)

$102.99

$

Usually ships in 3-10 days

0

25

Jonsered 532175330

PIN, IDLER PIVOT

$5.99

$

In Stock, Qty 17

0

26

Jonsered 874780524

HEX BOLT
(Superseded to 539976935)

$3.49

$

In Stock, Qty 12

0

27

Jonsered 532166785

LOCKNUT 5/16-18
(Superseded to 532426589)

$4.99

$

In Stock, Qty 12

0

28

Jonsered 532181044

RP SPRING, TRACTION IDLER
(Superseded to 532414557)

$6.99

$

In Stock, only 4 left!

0

29

Jonsered 532179354

ARM, IDLER
(Superseded to 585238401)

$34.99

$

Usually ships in 3-10 days

0

30

Jonsered 532180522

PULLEY.W/SPACER.2.25

$28.99

$

In Stock, only 3 left!

0

31

Jonsered 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 595305701)

$4.99

$

In Stock, Qty 14

0

32

Jonsered 532059289

STEEL WASHER

$4.99

$

In Stock, only 2 left!

0

33

Jonsered 873930500

NUT.CENTERLOCK.5/16-

$3.49

$

In Stock, Qty 5

0

34

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

35

Jonsered 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

36

Jonsered 532400026

WASHER, FLAT 3/8

$9.49

$

In Stock, only 3 left!

0

37

Jonsered 532180478

PULLEY, ENGINE TRACTION DRIVE
(Superseded to 595926601)

$37.99

$

Usually ships in 3-10 days

0

38

Jonsered 532409475

SPACER.ENGINE.PULLEY

$8.49

$

Usually ships in 3-10 days

0

39

Jonsered 532179095

SPRING.RETURN

$4.99

$

In Stock, only 3 left!

0

40

Jonsered 532155452

GUIDE BELT

$5.99

$

In Stock, Qty 9

0

41

Jonsered 874610516

SCREW

$4.99

$

In Stock, Qty 5

0

42

Jonsered 532175331

BUSHING, IDLER PIVOT
(Superseded to 587343701)

$6.99

$

In Stock, only 1 left!

0

43

Jonsered 811050500

WASHER EXT TOOTH LOCK 5/16
(Superseded to 596238801)

$3.49

$

In Stock, only 3 left!

0

44

Jonsered 532178828

SPRING, BRAKE

$5.99

$

In Stock, only 3 left!

0
