ST 2111 E - Jonsered Snow Thrower (2009-08) CONTROL PANEL DISCHARGE CHUTE Parts Diagram

Snow Thrower

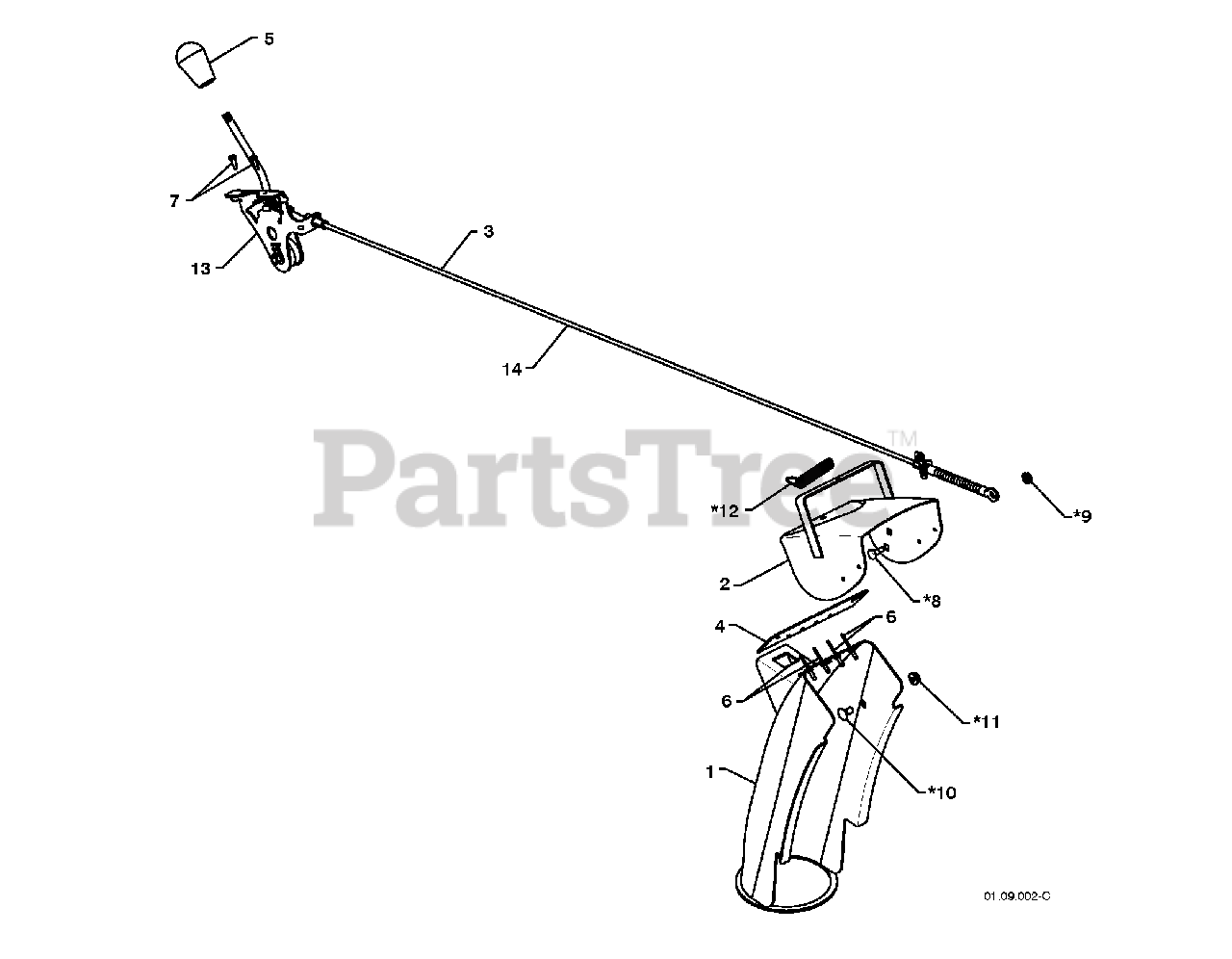

CONTROL PANEL DISCHARGE CHUTE Parts Diagram

  • Title

1

Jonsered 532430000

No Description Available
(Superseded to 583764701)

$

$

Not available

1

Jonsered 532430000

No Description Available
(Superseded to 583764701)

$

$

Not available

2

Jonsered 532184534

No Description Available
(Superseded to 588077804)

$

$

Not available

2

Jonsered 532184534

No Description Available
(Superseded to 588077804)

$

$

Not available

3

Jonsered 532420673

CONTROL.ASM.DEFLECTOR
(Superseded to 587030801)

$71.99

$

Usually ships in 3-10 days

0

3

Jonsered 532420673

CONTROL.ASM.DEFLECTOR
(Superseded to 587030801)

$71.99

$

Usually ships in 3-10 days

0

4

Jonsered 532420325

SEAL.DEFLECTOR

$7.49

$

In Stock, only 1 left!

0

4

Jonsered 532420325

SEAL.DEFLECTOR

$7.49

$

In Stock, only 1 left!

0

5

Jonsered 532414280

KNOB LEVER, BLACK

$8.49

$

In Stock, only 2 left!

0

5

Jonsered 532414280

KNOB LEVER, BLACK

$8.49

$

In Stock, only 2 left!

0

6

Jonsered 532128415

RIVET BLIND

$3.49

$

Usually ships in 3-10 days

0

6

Jonsered 532128415

RIVET BLIND

$3.49

$

Usually ships in 3-10 days

0

7

Jonsered 817501010

SCREW #10-24 X 5/8

$

$

Not available

7

Jonsered 817501010

SCREW #10-24 X 5/8

$

$

Not available

8

Jonsered 532179829

BOLT, SHOULDER

Note: PROVIDED IN BAG OF ITEMS SHIPPED WITH PRODUCT

$4.99

$

In Stock, Qty 7

0

8

Jonsered 532179829

BOLT, SHOULDER

Note: PROVIDED IN BAG OF ITEMS SHIPPED WITH PRODUCT

$4.99

$

In Stock, Qty 7

0

9

Jonsered 532191730

NUT.HEX.FLANGE.1/4

Note: PROVIDED IN BAG OF ITEMS SHIPPED WITH PRODUCT

$3.99

$

In Stock, only 2 left!

0

9

Jonsered 532191730

NUT.HEX.FLANGE.1/4

Note: PROVIDED IN BAG OF ITEMS SHIPPED WITH PRODUCT

$3.99

$

In Stock, only 2 left!

0

10

Jonsered 872250505

BOLT
(Superseded to 596136401)

Note: PROVIDED IN BAG OF ITEMS SHIPPED WITH PRODUCT

$3.99

$

In Stock, Qty 20+

0

10

Jonsered 872250505

BOLT
(Superseded to 596136401)

Note: PROVIDED IN BAG OF ITEMS SHIPPED WITH PRODUCT

$3.99

$

In Stock, Qty 20+

0

11

Jonsered 532751153

NUT, LOCK 5/16-18

Note: PROVIDED IN BAG OF ITEMS SHIPPED WITH PRODUCT

$3.49

$

In Stock, Qty 13

0

11

Jonsered 532751153

NUT, LOCK 5/16-18

Note: PROVIDED IN BAG OF ITEMS SHIPPED WITH PRODUCT

$3.49

$

In Stock, Qty 13

0

12

Jonsered 532184505

SPRING

Note: PROVIDED IN BAG OF ITEMS SHIPPED WITH PRODUCT

$8.49

$

In Stock, only 2 left!

0

12

Jonsered 532184505

SPRING

Note: PROVIDED IN BAG OF ITEMS SHIPPED WITH PRODUCT

$8.49

$

In Stock, only 2 left!

0

13

Jonsered 532420679

CHUTE.DEFLECTOR.HEAD.SERVICE.
(Superseded to 587030801)

Note: LISTED AS REFERENCE FOR SERVICE PARTS ONLY

$71.99

$

Usually ships in 3-10 days

0

13

Jonsered 532420679

CHUTE.DEFLECTOR.HEAD.SERVICE.
(Superseded to 587030801)

Note: SERVICE PART

$71.99

$

Usually ships in 3-10 days

0

14

Jonsered 532420672

SERVICE.CHUTE.DEF.CBL.BLK
(Superseded to 587030901)

Note: LISTED AS REFERENCE FOR SERVICE PARTS ONLY

$53.99

$

In Stock, only 2 left!

0

14

Jonsered 532420672

SERVICE.CHUTE.DEF.CBL.BLK
(Superseded to 587030901)

Note: SERVICE PART

$53.99

$

In Stock, only 2 left!

0
