ST 224 (961910087-01) - Husqvarna 24" Snow Blower (2015-05) CONTROL PANEL & DISCHARGE CHUTE 5 Parts Diagram

24" Snow Blower

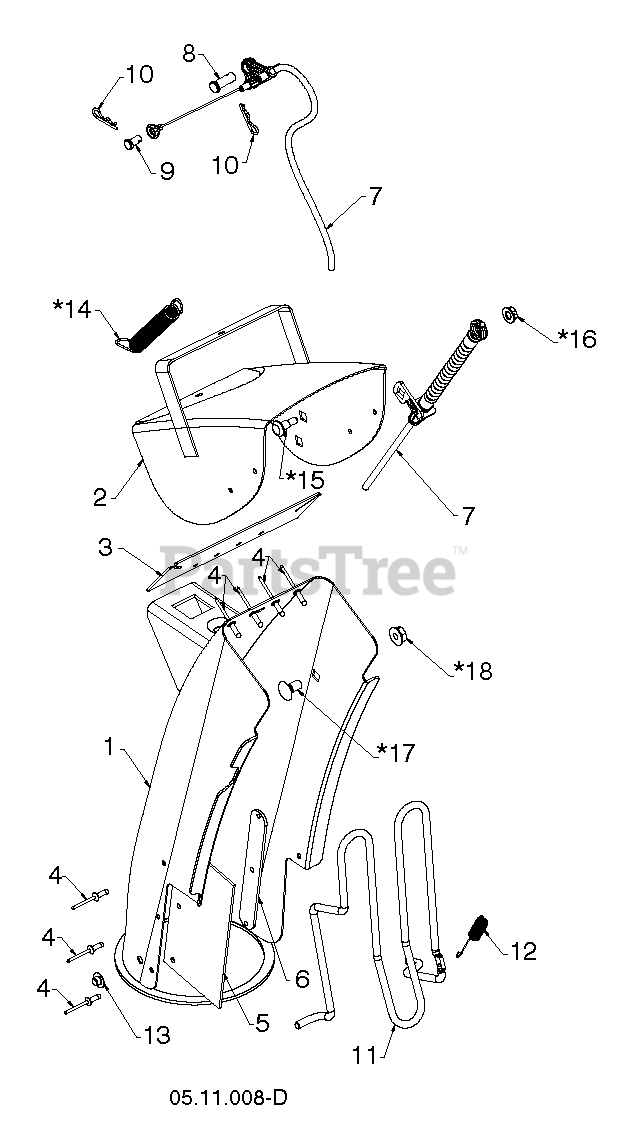

CONTROL PANEL & DISCHARGE CHUTE 5 Parts Diagram

  • Title

*16

Husqvarna 585691401

NUT.HEX.LRG.FLANGE.1/4-20.LOCK

Note: INCLUDED IN BAG OF PARTS

$3.49

$

In Stock, only 3 left!

0

*17

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

Note: INCLUDED IN BAG OF PARTS

$4.99

$

In Stock, only 3 left!

0

12

Husqvarna 532435616

SPRING.CHUTE.GUARD

$3.49

$

Usually ships in 3-10 days

0

2

000000000

Note: DEFLECTOR

$

$

Not available

3

000000000

Note: SEAL

$

$

Not available

*15

Husqvarna 585832201

BOLT SHOULDER 1/4

Note: INCLUDED IN BAG OF PARTS

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 585808301

PIN CLEVIS .25 X .31

$4.99

$

In Stock, only 4 left!

0

7

Husqvarna 586961501

CABLE CONTROL.CHUTE.DEFL.BOWDE

$31.99

$

In Stock, only 4 left!

0

*18

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

Note: INCLUDED IN BAG OF PARTS

$

$

Not available

*14

Husqvarna 532184505

SPRING.DEFLECTOR.REM.CHUTE

Note: INCLUDED IN BAG OF PARTS

$7.99

$

In Stock, Qty 5

0

8

Husqvarna 581329401

PIN CLEVIS 5/16X.875

$3.49

$

In Stock, Qty 5

0

6

000000000

Note: RETAINER

$

$

Not available

10

Husqvarna 532423303

HAIRPIN.SOFT.ZINC.059X1.125
(Superseded to 583404901)

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532435582

ROD.GUARD.CHUTE (2 2)

$14.99

$

Usually ships in 3-10 days

0

1

Husqvarna 588077802

ASM.CHUTE/DEFLECTOR.668

Note: Includes chute, deflector, seal & pop rivets

$113.99

$

Usually ships in 3-10 days

0

5

000000000

Note: SHIELD

$

$

Not available

13

Husqvarna 532059349

NUT
(Superseded to 582935201)

$3.49

$

Usually ships in 3-10 days

0

4

000000000

Note: POP RIVET

$

$

Not available
