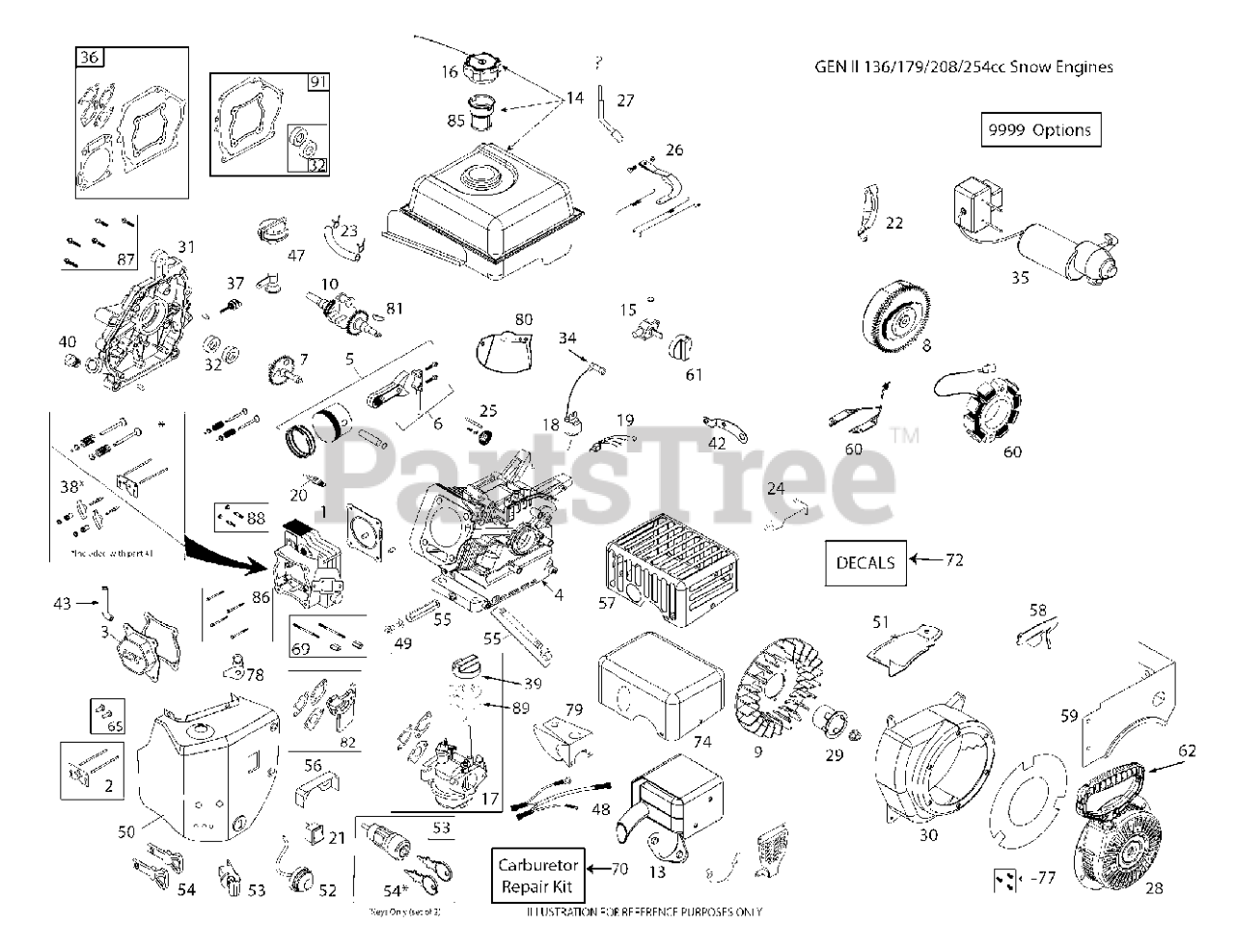

ST 224 (961910087-03) - Husqvarna 24" Snow Blower (2017-05) ENGINE Parts Diagram

24" Snow Blower

ENGINE Parts Diagram

  • Title

14

Husqvarna 532436564

FUEL.TK.ASSY.GENII.SKSN0311.1

$179.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532420580

VALVE COVER ASSEMBLY
(Superseded to 587176901)

$59.99

$

Usually ships in 3-10 days

0

80

000000000

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

56

Husqvarna 532429260

SHIELD.VAPOR.SNOW

$21.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532424942

FUEL CAP OVERSIZED CLICK STYLE

$11.99

$

In Stock, only 3 left!

0

2

Husqvarna 532420579

KIT.PUSH.ROD.SRV(SK208-1001)

$51.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532443893

208CC 60W ALTERNATOR

$89.99

$

Usually ships in 3-10 days

0

17

Husqvarna 587147901

CARBURETTOR L10-1D.W/SP

$119.99

$

In Stock, Qty 7

0

23

Husqvarna 532432144

FUEL HOSE KIT
(Superseded to 532438014)

$11.99

$

In Stock, only 2 left!

0

26

Husqvarna 581768701

CARBURETTOR GOVERNOR LINK.ASM.

$9.99

$

In Stock, only 1 left!

0

48

Husqvarna 532429262

WIRE.HARNESS.SNOW
(Superseded to 532429284)

$35.99

$

In Stock, only 3 left!

0

10

Husqvarna 532446642

CRNKSHFT-KYD#14.208CCSKSNO8001
(Superseded to 584362101)

$143.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532436561

HEATER.BOX.ASY-GEN2

$179.99

$

Usually ships in 3-10 days

0

4

000000000

Note: NOT AVAILABLE FOR THIS ENGINE

$

$

Not available

21

Husqvarna 532424957

SWITCH.ON/OFF(SKSN-0403)

$43.99

$

In Stock, only 3 left!

0

18

Husqvarna 532443934

208CC IGN COIL (STD)

$77.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532443773

COVER.CRANKCASE.LCT.HIGH.OIL.F

$

$

Not available

13

Husqvarna 587737801

MUFFLER KIT LCT SKSN2205.1

$65.99

$

Usually ships in 3-10 days

0

47

Husqvarna 581007201

TUBE ASSY HIGH OIL-FILL

$11.99

$

In Stock, only 1 left!

0

65

Husqvarna 581372801

TAPPET.KIT.LCT.208CC

$34.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532432688

BOLT.KIT.RECOIL.LCT.ALL.ENGINE

$4.99

$

In Stock, Qty 5

0

57

000000000

Note: NOT AVAILABLE FOR THIS ENGINE

$

$

Not available

7

Husqvarna 532420584

KIT.CAMSHAFT.208CC.LCT
(Superseded to 582051401)

$53.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532429646

GOVENOR.GEARS ASM(SK2082900)

$9.99

$

Usually ships in 3-10 days

0

42

000000000

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

40

Husqvarna 532429598

NON REMOVABLE PLUG

$17.99

$

Usually ships in 3-10 days

0

30

Husqvarna 580960501

BLOWER.HOUSING.ELEC.START.LCT

$

$

Not available

89

Husqvarna 587124801

KNOB LCT.SKSN5325.1 SPEED

$9.99

$

In Stock, only 4 left!

0

88

Husqvarna 586326801

STUD.MUFFLER.KIT.LCT

$2.49

$

In Stock, only 4 left!

0

28

Husqvarna 532436967

RECOIL.STRT.ROUND(BLK) SNOW

$77.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532420586

FLYWHEEL FAN 420586

$14.99

$

In Stock, only 2 left!

0

32

Husqvarna 532429599

SEAL KIT (2 PCS)

$21.99

$

In Stock, only 2 left!

0

91

Husqvarna 587525701

COVER CRANKCASE GASKET

$22.99

$

In Stock, only 2 left!

0

9999

Husqvarna 579806401

KIT.BOLT.LCT.SK9990.1

Note: NOT SHOWN

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532443059

KEY SET(2 KEYS) SKSN0407.1

$15.99

$

In Stock, only 1 left!

0

36

Husqvarna 532429601

GASKET.KIT.208CC(SK2084300.1)

$62.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532424960

GOVERNOR.LINK.SHIELD PLATE

$

$

Not available

9999

Husqvarna 586326201

HIGH.ALTITUDE.JET 6,000FT

$17.99

$

Usually ships in 3-10 days

0

86

Husqvarna 586327301

KIT.BOLT.CYLINDER.HEAD.(4PC)

$7.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532435495

KIT.OIL.DRAIN.PLUG(SK2089911

$9.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532424939

SPARK.PLUG(2083810)

$15.99

$

In Stock, Qty 5

0

59

Husqvarna 532436562

FUEL.TNK.SKRT.GENII.SKSN0103.1

$71.99

$

Usually ships in 3-10 days

0

43

Husqvarna 580353401

TUBE.BREATHER.LCT.208

$4.99

$

In Stock, only 3 left!

0

74

Husqvarna 587821101

MUFFLER GUARD.EUR./LCT.SKSN220

$39.99

$

Usually ships in 3-10 days

0

81

Husqvarna 585297201

KEYS.FLYWHEEL.208/414CC.5PACK

$8.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532420961

DIPSTICK SMALL

$14.99

$

In Stock, only 2 left!

0

51

Husqvarna 532437119

SHIELD.CYLINGER.LCT.SKSN0608.1
(Superseded to 583516301)

$53.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532436671

STARTER.EL.230C.SNO.LCT.208CC.
(Superseded to 583510401)

$455.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532435647

KIT.ENGINE.DECAL.208CC.LCT.SK1

$

$

Not available

53

Husqvarna 532424954

SWITH.KEY.ASSEM.SNOW.SINGLE.ST

$23.99

$

In Stock, only 1 left!

0

62

Husqvarna 532424968

STARTER.GRIP.SNOW.LCT.SKSN0603
(Superseded to 532443899)

$21.99

$

In Stock, only 2 left!

0

34

Husqvarna 532436966

SPARK.PLUG.BOOT.SNW,SKSN4691.1

$21.99

$

In Stock, only 2 left!

0

78

Husqvarna 581459301

BRACKET

$8.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532424975

SHLD.ELEC.START.FLY(SKSN-0605)

$

$

Not available

39

Husqvarna 532429224

CHOKE.KNOW.SNOW(SKSN4500)

$9.99

$

In Stock, only 2 left!

0

70

Husqvarna 580353601

CARB.REPAIR.KIT.LCT.SK9900.2
(Superseded to 580353602)

$59.99

$

In Stock, only 1 left!

0

27

Husqvarna 532420602

KIT.GOVERNOR.CRANK(SK208-3100)
(Superseded to 581768701)

$9.99

$

In Stock, only 1 left!

0

5

Husqvarna 532420582

KIT.PISTON.SRV(SK208-1400)

$119.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532436968

STRTER.CUP(NON-SLOT)SKSN0601.2

$14.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532429259

SPEED.CTRL.BRKT.(SKSN0150)

$21.99

$

Usually ships in 3-10 days

0

55

Husqvarna 587154401

OIL PIPE DRAIN LCT 254

$37.99

$

In Stock, only 1 left!

0

61

Husqvarna 532432752

FUEL KNOB-SNOW

$9.99

$

In Stock, Qty 16

0

15

Husqvarna 532429234

FUEL.PETCOCK.SNOW(SKSN4900)

$20.99

$

Usually ships in 3-10 days

0

79

Husqvarna 585773701

COVER.CARBURETOR.SNOW
(Superseded to 595012701)

$14.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532420578

CYLINDR.HEAD.SRV.KIT W/GASKET
(Superseded to 582045701)

Note: with gasket

$239.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532420583

KIT.CONNECT.ROD.SRV(SK208-1500

$41.99

$

Usually ships in 3-10 days

0

19

000000000

Note: NOT AVAILABLE FOR THIS ENGINE

$

$

Not available

69

Husqvarna 532424951

CARB.STUDS & COUPLING KIT.SNOW

$9.99

$

In Stock, only 2 left!

0

8

Husqvarna 532443892

208CC ELEC START FLYWHEEL
(Superseded to 595012401)

$143.99

$

Usually ships in 3-10 days

0

87

Husqvarna 586326901

KIT.BOLT.CRANKCASE.COVER.6PC

$8.49

$

In Stock, only 3 left!

0

82

Husqvarna 585020503

SPACER.CARBURETOR.208CC.LCT

$5.99

$

In Stock, only 2 left!

0

38

Husqvarna 532429691

ROCKER ARM KIT

$96.99

$

Usually ships in 3-10 days

0

85

Husqvarna 586325601

STRAINER.FUEL.TANK.LCT.208CC

$4.99

$

In Stock, Qty 12

0

52

Husqvarna 532424949

PRIMER.BULB.WITH HOSE (SNOW)
(Superseded to 595079601)

$

$

Not available
