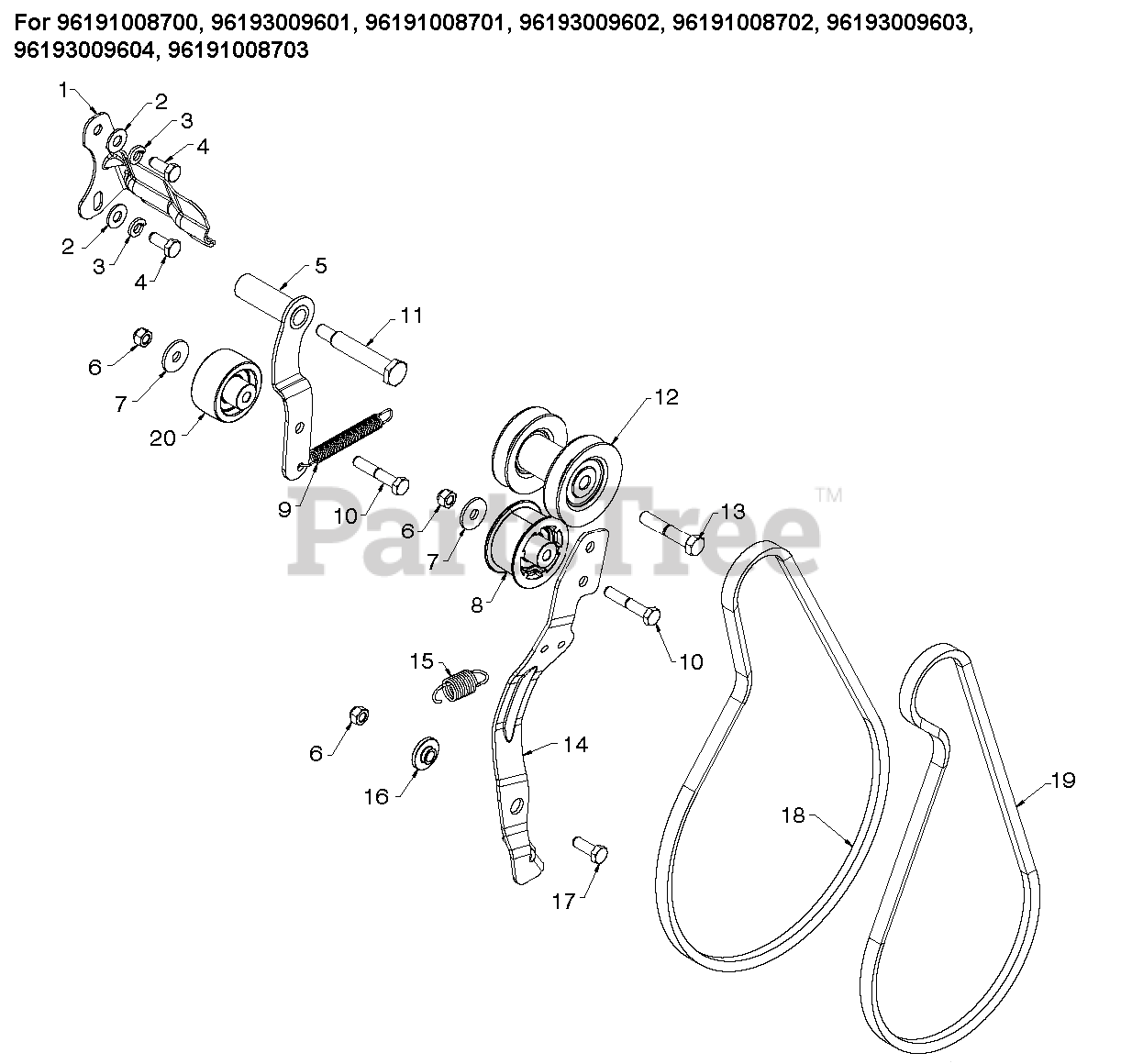

ST 224 - Husqvarna 24" Snow Blower CHASSIS, ENGINE & PULLEYS 2 Parts Diagram

24" Snow Blower

CHASSIS, ENGINE & PULLEYS 2 Parts Diagram

  • Title

8

Husqvarna 581141401

PULLEY,IDLER,2.00 W SPA
(Superseded to 581141402)

$15.99

$

In Stock, only 2 left!

0

18

Husqvarna 584216102

BELT.DRIVE.SNOW.DUAL

$21.99

$

In Stock, Qty 6

0

10

Husqvarna 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, only 3 left!

0

19

Husqvarna 501818201

LOW CRANK IMPELLER BELT

$22.99

$

In Stock, Qty 17

0

3

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 586880201

PULLEY.IDLER.FLANG.2.O/SPACER
(Superseded to 586880202)

$15.99

$

In Stock, Qty 5

0

1

Husqvarna 581623702

BRACKET.BELT.KEEPER.004.BZP

Note: For 96191008700, 96193009601

$

$

Not available

14

Husqvarna 580831102

ARM.IDLER.SNOW.BLACK

Note: For 96191008700

$

$

Not available

13

Husqvarna 532179617

BOLT.BLADE

Note: For 96191008700, 96193009601

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 587031201

SPRING RETURN, IDLER ARM, IMPE

$5.99

$

In Stock, only 3 left!

0

7

Husqvarna 532059289

STEEL WASHER

$4.99

$

In Stock, Qty 5

0

1

Husqvarna 588492802

BELT KEEPER BRACKET

Note: For 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703

$7.49

$

Usually ships in 3-10 days

0

4

Husqvarna 874610512

SCREW 5/16-24 X .75 GR5

$3.99

$

In Stock, only 2 left!

0

2

Husqvarna 819111216

WASHER M
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 587893703

PULLEY.ASM.IMPELLER/DRIVE

$35.99

$

In Stock, only 2 left!

0

17

Husqvarna 874760514

BOLT
(Superseded to 596322201)

$3.99

$

In Stock, only 4 left!

0

13

Husqvarna 532191760

BOLT.HD.HEAD.3/8-24X2.50 (2 2)

Note: For 96191008701, 96193009602

$5.99

$

In Stock, only 1 left!

0

14

Husqvarna 580831106

ARM.IDLER.AUTO-PH.676

Note: For 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703

$9.49

$

In Stock, only 2 left!

0

9

Husqvarna 580753001

SPRING RETURN IDLER ARM

$5.99

$

In Stock, only 4 left!

0

16

Husqvarna 587343701

BUSHING.BRAKE.ARM

$7.49

$

In Stock, only 3 left!

0

11

Husqvarna 581413801

BOLT 5/16-24X2.25 HEX HEAD SHO

$3.49

$

In Stock, only 2 left!

0

5

Husqvarna 581338203

ARM IDLER DRIVE WELDMENT_HOT
(Superseded to 593192502)

$14.99

$

In Stock, only 1 left!

0

13

Husqvarna 582388401

BOLT.ENGINE.PULLEY

Note: For 96191008702, 96193009603, 96193009604, 96191008703

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0
