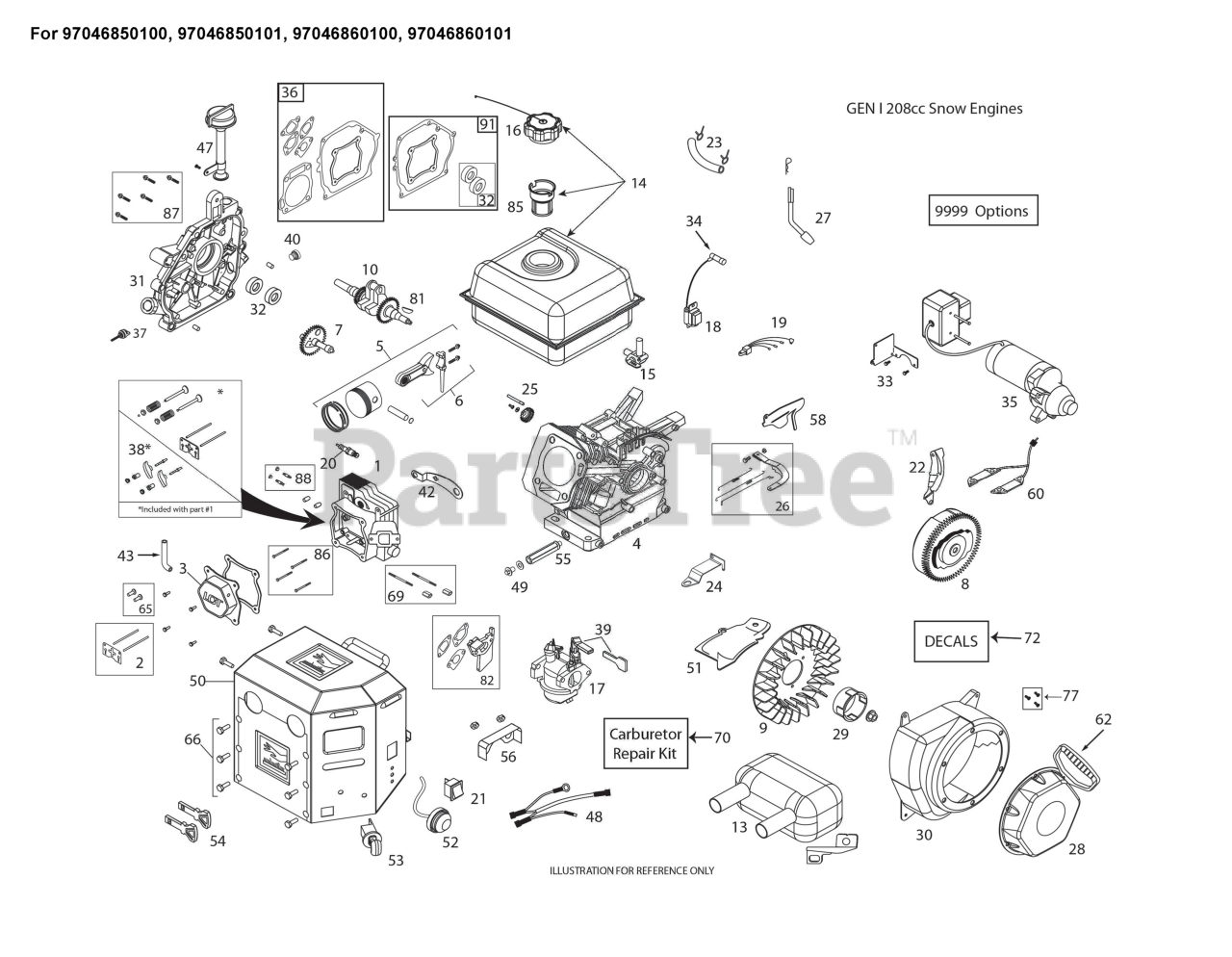

ST 224 - Husqvarna 24" Snow Blower ENGINE Parts Diagram

24" Snow Blower

ENGINE Parts Diagram

  • Title

5

Husqvarna 532420582

KIT.PISTON.SRV(SK208-1400)

$169.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532436966

SPARK.PLUG.BOOT.SNW,SKSN4691.1

$20.99

$

In Stock, only 2 left!

0

14

Husqvarna 532436564

FUEL.TK.ASSY.GENII.SKSN0311.1

$169.99

$

In Stock, only 1 left!

0

10

Husqvarna 584362101

CRNKSHFT-KYD#14.208CCSKSNO8001

$148.99

$

Usually ships in 3-10 days

0

48

Husqvarna 595012501

HARNESS WIRE. W/O OFF/ON SWITC

$20.99

$

Usually ships in 3-10 days

0

85

Husqvarna 586325601

STRAINER.FUEL.TANK.LCT.208CC

$8.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532420579

KIT.PUSH.ROD.SRV(SK208-1001)

$51.99

$

In Stock, only 1 left!

0

78

000000000

Note: For 97046850100, 97046850101, 97046860101. Part of Ref 58, All One Part.

$

$

Not available

79

000000000

Note: For 97046850100, 97046850101, 97046860101. Part of Ref 58, All One Part.

$

$

Not available

9999

Husqvarna 597930001

BOLTS

Note: For 97046850100

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532420602

KIT.GOVERNOR.CRANK(SK208-3100)
(Superseded to 581768701)

$9.49

$

In Stock, Qty 11

0

13

Husqvarna 599716601

MUFFLERS

Note: For 97046860100, 97046860101

$45.99

$

Usually ships in 3-10 days

0

30

Husqvarna 599716701

HOUSINGS

Note: For 97046850100, 97046860100, 97046860101

$31.99

$

Usually ships in 3-10 days

0

88

Husqvarna 586326801

STUD.MUFFLER.KIT.LCT

$11.99

$

In Stock, only 4 left!

0

32

Husqvarna 532429599

SEAL KIT (2 PCS)

$20.99

$

Usually ships in 3-10 days

0

43

Husqvarna 580353401

TUBE.BREATHER.LCT.208

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532436968

STRTER.CUP(NON-SLOT)SKSN0601.2

$34.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532436672

SHIELD.MUFFLER.CE.COMPLIANT

Note: For 97046850100, 97046850101

$68.99

$

Usually ships in 3-10 days

0

56

Husqvarna 595012701

SHIELD GOVENOR & CARB - COMPOS

Note: For 97046860100

$13.99

$

Usually ships in 3-10 days

0

26

Husqvarna 581768701

CARBURETTOR GOVERNOR LINK.ASM.

$9.49

$

In Stock, Qty 11

0

47

Husqvarna 581007201

TUBE ASSY HIGH OIL-FILL

$11.99

$

In Stock, only 2 left!

0

23

Husqvarna 532438014

KIT.FUEL.HOSE.208CC.SING/STAGE

$12.99

$

In Stock, Qty 6

0

17

Husqvarna 597929901

CARBURETORS

Note: For 97046860100, 97046860101

$102.99

$

Usually ships in 3-10 days

0

91

Husqvarna 587525701

COVER CRANKCASE GASKET

$24.99

$

Usually ships in 3-10 days

0

97

Husqvarna 590640101

GUARD.MUFFLER.MANIFOLD.LCT

Note: Not included in engine spec.

$17.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532443059

KEY SET(2 KEYS) SKSN0407.1

$13.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532424951

CARB.STUDS & COUPLING KIT.SNOW

$21.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532429234

FUEL.PETCOCK.SNOW(SKSN4900)

$20.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532436967

RECOIL.STRT.ROUND(BLK) SNOW

$56.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532443893

208CC 60W ALTERNATOR

$79.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532424942

FUEL CAP OVERSIZED CLICK STYLE

$20.99

$

In Stock, only 2 left!

0

81

Husqvarna 585297201

KEYS.FLYWHEEL.208/414CC.5PACK

$26.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532429259

SPEED.CTRL.BRKT.(SKSN0150)

$20.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532420961

DIPSTICK SMALL

$13.99

$

Usually ships in 3-10 days

0

65

Husqvarna 581372801

TAPPET.KIT.LCT.208CC

$34.99

$

Usually ships in 3-10 days

0

17

Husqvarna 587147901

CARBURETTOR L10-1D.W/SP

Note: For 97046850100, 97046850101

$121.99

$

Usually ships in 3-10 days

0

31

Husqvarna 581007301

COVER CRANKCASE.LCT.SK2083605

$136.99

$

Usually ships in 3-10 days

0

52

Husqvarna 590920801

STARTER SCREW.STARTER SWITCH B

Note: For 97046860100, 97046860101

$5.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532432686

EXTENDED OIL DRAIN TUBE

$42.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532435495

KIT.OIL.DRAIN.PLUG(SK2089911

$9.99

$

In Stock, only 3 left!

0

25

Husqvarna 532429646

GOVENOR.GEARS ASM(SK2082900)

$56.99

$

Usually ships in 3-10 days

0

51

Husqvarna 583516301

SHIELD.CYLINGER.LCT.SKSN0608.2

$51.99

$

Usually ships in 3-10 days

0

35

Husqvarna 595915501

STARTER 230C EL START.LCT SKSN
(Superseded to 583510401)

Note: For 97046860100, 97046860101

$545.99

$

Usually ships in 3-10 days

0

13

Husqvarna TBD

Note: For 97046850100

$

$

Not available

74

Husqvarna 587821101

MUFFLER GUARD.EUR./LCT.SKSN220

Note: Not included in engine spec.

$42.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532429691

ROCKER ARM KIT

$96.99

$

Usually ships in 3-10 days

0

50

Husqvarna 595012601

BOX HEATER.W/O OFF/ON SWITCH.L

$79.99

$

Usually ships in 3-10 days

0

9999

Husqvarna 579806401

KIT.BOLT.LCT.SK9990.1

$3.99

$

Usually ships in 3-10 days

0

9999

Husqvarna 590920801

STARTER SCREW.STARTER SWITCH B

Note: For 97046850100, 97046850101

$5.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532424949

PRIMER.BULB.WITH HOSE (SNOW)
(Superseded to 595079601)

Note: For 97046850100, 97046850101

$11.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532435648

HOP SNOW DECAL KIT

$9.49

$

Usually ships in 3-10 days

0

58

Husqvarna 595012701

SHIELD GOVENOR & CARB - COMPOS

Note: (also repls 56, 79, 80)

$13.99

$

Usually ships in 3-10 days

0

9999

Husqvarna 586326201

HIGH.ALTITUDE.JET 6,000FT

$17.99

$

Usually ships in 3-10 days

0

70

Husqvarna 580353602

CARBURETOR.REPAIR KIT.LCT.

$60.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532436466

ELEC.START.GEN2.SKSN0451.1

Note: For 97046850100, 97046850101

$460.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532420584

KIT.CAMSHAFT.208CC.LCT
(Superseded to 582051401)

$113.99

$

Usually ships in 3-10 days

0

82

Husqvarna 585020503

SPACER.CARBURETOR.208CC.LCT

$8.99

$

Usually ships in 3-10 days

0

8

Husqvarna 595012401

FLYWHEEL ELECTRIC START W/6 MA

$136.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532436562

FUEL.TNK.SKRT.GENII.SKSN0103.1

Note: Not included in engine spec.

$68.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532429601

GASKET.KIT.208CC(SK2084300.1)

$66.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532429224

CHOKE.KNOW.SNOW(SKSN4500)

$9.49

$

In Stock, Qty 9

0

86

Husqvarna 586327302

BOLT KIT.CYLINDER HEAD.LCT(4)1

$8.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532420586

FLYWHEEL FAN 420586

$13.99

$

In Stock, only 1 left!

0

77

Husqvarna 532432688

BOLT.KIT.RECOIL.LCT.ALL.ENGINE

$4.99

$

In Stock, only 1 left!

0

61

Husqvarna 532432752

FUEL KNOB-SNOW

Note: Not included in engine spec.

$12.99

$

In Stock, Qty 7

0

1

Husqvarna 532420578

CYLINDR.HEAD.SRV.KIT W/GASKET
(Superseded to 582045701)

$193.99

$

Usually ships in 3-10 days

0

78

Husqvarna 581459301

BRACKET

$7.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532424954

SWITH.KEY.ASSEM.SNOW.SINGLE.ST

$31.99

$

In Stock, Qty 6

0

18

Husqvarna 532443934

208CC IGN COIL (STD)

$68.99

$

Usually ships in 3-10 days

0

22

Husqvarna 585772401

SHIELD.FLYWHEEL.ELEC.STRT.208C

$8.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532424939

SPARK.PLUG(2083810)

$31.99

$

In Stock, only 2 left!

0

40

Husqvarna 532429598

NON REMOVABLE PLUG

$17.99

$

Usually ships in 3-10 days

0

13

Husqvarna 587737801

MUFFLER KIT LCT SKSN2205.1

Note: For 97046850101

$62.99

$

Usually ships in 3-10 days

0

56

000000000

Note: For 97046850100, 97046850101, 97046860101. Part of ref 58. all one piece.

$

$

Not available

87

Husqvarna 586326901

KIT.BOLT.CRANKCASE.COVER.6PC

$10.99

$

In Stock, only 4 left!

0

3

Husqvarna 587176901

VALVE COVER LCT 179/208

$56.99

$

Usually ships in 3-10 days

0
