ST 227 P - Husqvarna 27" Snow Blower AUGER HOUSING & IMPELLER Parts Diagram

27" Snow Blower

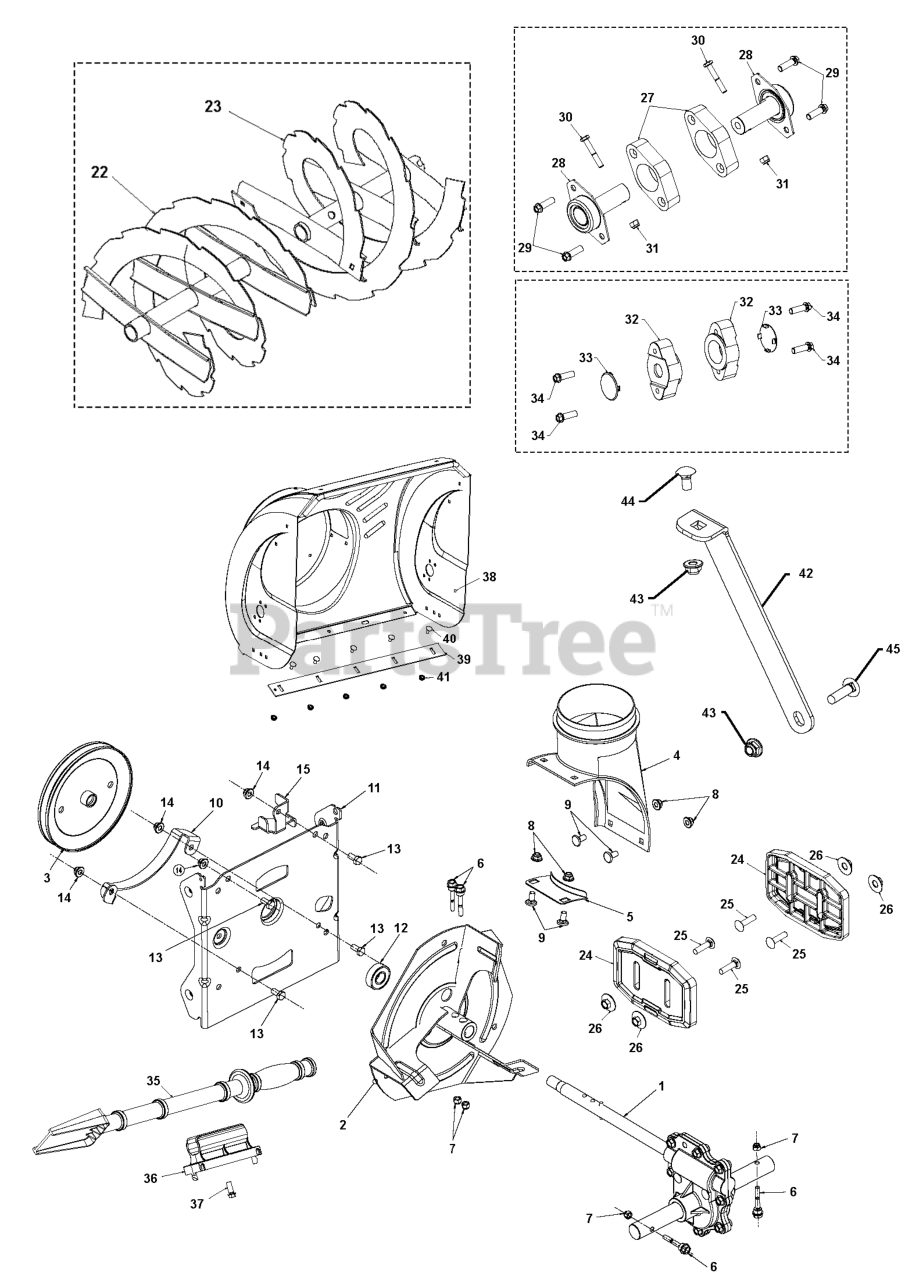

AUGER HOUSING & IMPELLER Parts Diagram

  • Title

1

Husqvarna 582867601

TRANSMISSION.GEARBOX.ALUM.DD
(Superseded to 582867602)

Note: For 96193009705, 96191008804

$

$

Not available

14

Husqvarna 532427942

NUTNYLOK.FLRANGE.5/16-18
(Superseded to 594944401)

$7.49

$

In Stock, Qty 18

0

6

Husqvarna 588077502

BOLT SHEAR HX HD 1/4-20 CLEAR

$2.49

$

In Stock, Qty 20+

0

39

Husqvarna 532404932

BAR.SCRAPER.27.PNT.BLACK

$14.99

$

In Stock, only 1 left!

0

37

Husqvarna 532194189

SCREW.HWH.13-16-5.8.BZP

$4.99

$

In Stock, Qty 13

0

10

Husqvarna 581632002

BRACKET.BELT.KEEPER.LOWER.BLAC

Note: For all EXCEPT 96193009706, 96191008805, 96193009705, 96191008804

$7.49

$

In Stock, only 4 left!

0

2

Husqvarna 586607202

IMPELLER.STEEL.SNOW.BLACK
(Superseded to 586607203)

$65.99

$

In Stock, Qty 17

0

26

Husqvarna 585802801

NUT.HEX.FL 5/16-18 TOP LCK BLK

Note: For all EXCEPT 96193009706, 96193009704

$5.99

$

In Stock, Qty 15

0

45

Husqvarna 872110510

BOLT.CARRIAGE.5/16-18

Note: For 96193009706, 96191008805, 96193009705, 96191008804

$5.99

$

In Stock, only 2 left!

0

28

Husqvarna 594082801

BALL BEARING AUGER BALL BEARIN

Note: For all EXCEPT 96191008805

$21.99

$

In Stock, Qty 5

0

22

Husqvarna 532436255

AUGER.WELD.RIB.BUT.27.LH.GREY

Note: LH

$179.99

$

Usually ships in 3-10 days

0

15

Husqvarna 587587202

GUIDE.LOWER.AUGER.BELT.479

Note: For all EXCEPT 96193009706, 96191008805, 96193009705, 96191008804, 96191008800, 96193009701

$11.99

$

In Stock, only 4 left!

0

3

Husqvarna 586715201

PULLEY SCREW ON 7.3

Note: For 96191008800, 96193009701

$17.99

$

In Stock, only 2 left!

0

27

Husqvarna 532188170

BEARING RETAINER, PLASTIC

Note: For all EXCEPT 96191008805

$

$

Not available

25

Husqvarna 585802901

BOLT CAR BLK 5/16-18 X 1-1/4

$5.99

$

In Stock, only 3 left!

0

29

Husqvarna 584299401

SCREW.HI-LO. 5/16 X 1.00

Note: For all EXCEPT 96191008805

$3.99

$

In Stock, only 4 left!

0

23

Husqvarna 532436256

AUGER.WELD.RIB.BUT.27.RH.GREY

Note: RH

$191.99

$

In Stock, only 3 left!

0

31

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

Note: For all EXCEPT 96193009706, 96191008805

$2.49

$

In Stock, Qty 20+

0

43

Husqvarna 585691301

NUT HEX FLG NYLOCK BLK 5_16-1

Note: For 96193009706, 96191008805, 96193009705, 96191008804

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 597433002

Brackets

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532420478

BEARING.AUGER.SHAFT

Note: For 96191008805

$8.49

$

In Stock, only 2 left!

0

7

Husqvarna 595086601

NUT HEXAGON 1/4-20 ST ZPB
(Superseded to 582478602)

Note: For 96193009706, 96191008805

$2.49

$

In Stock, Qty 20+

0

12

Husqvarna 532198791

BEARING

$13.99

$

In Stock, only 3 left!

0

11

Husqvarna 581592502

BRACKET.AUG.HOUSING.INTER.BLAC
(Superseded to 581592503)

Note: For all EXCEPT 96193009706, 96191008805, 96193009705, 96191008804

$35.99

$

In Stock, only 2 left!

0

36

Husqvarna 532405400

CLIP.CLEANOUT.TOOL

$3.99

$

In Stock, Qty 7

0

24

Husqvarna 583838801

PLATE.SKID.SHOE.COMPOSITE

$9.49

$

In Stock, only 4 left!

0

31

Husqvarna 595086601

NUT HEXAGON 1/4-20 ST ZPB
(Superseded to 582478602)

Note: For 96193009706

$2.49

$

In Stock, Qty 20+

0

1

Husqvarna 582867602

Gears

Note: For 96193009706, 96191008805

$

$

Not available

40

Husqvarna 596039401

BOLT ROUND HEAD SQUARE NECK BO

$2.49

$

In Stock, Qty 20+

0

26

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

Note: For 96193009706, 96193009704

$3.49

$

In Stock, only 4 left!

0

41

Husqvarna 532155377

NUT.FLANGE.5/16
(Superseded to 596039201)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 584299401

SCREW.HI-LO. 5/16 X 1.00

Note: For 96191008805

$3.99

$

In Stock, only 4 left!

0

9

Husqvarna 585691201

BOLT CARR WAFER BLK 5_16-18 X

$3.99

$

In Stock, Qty 17

0

3

Husqvarna 587402401

PULLEY SCREW ON 7.3 5/8

Note: For all EXCEPT 96191008800, 96193009701

$27.99

$

In Stock, only 4 left!

0

30

Husqvarna 874780426

SCREW.HEX.HD1/4-20X
(Superseded to 596322101)

Note: For all EXCEPT 96193009706, 96191008805

$3.99

$

In Stock, Qty 20+

0

44

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

Note: For 96193009706, 96191008805, 96193009705, 96191008804

$4.99

$

In Stock, only 2 left!

0

35

Husqvarna 532192199

CLEAN OUT TOOL

$21.99

$

In Stock, Qty 6

0

33

Husqvarna 532411939

PLUG.BEARING.HOLE.HSG

Note: For 96191008805

$7.99

$

In Stock, only 2 left!

0

30

Husqvarna 596322101

BOLT HEXAGON BOLT 1/4-20 X 1-5

Note: For 96193009706

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18
(Superseded to 596031601)

Note: For all EXCEPT 96193009706, 96191008805, 96193009705, 96191008804

$2.49

$

Usually ships in 3-10 days

0

1

Husqvarna 597371501

KIT.GEARBOX.ALUM.DD.SHAFT
(Superseded to 598831601)

Note: For all EXCEPT 96193009705, 96191008804, 96193009706, 96191008805

$275.99

$

In Stock, only 3 left!

0

4

Husqvarna 585056901

CHUTE.DISCHARGE.BASE

$13.99

$

In Stock, Qty 6

0

8

Husqvarna 585691301

NUT HEX FLG NYLOCK BLK 5_16-1

$5.99

$

Usually ships in 3-10 days

0

38

Husqvarna 581708398

KIT.AUGER.HOUSING.586184005

$418.99

$

Usually ships in 3-10 days

0

42

Husqvarna 589323002

BRACE SUPPORT GEARBOX 200 SERI

Note: For 96193009706, 96191008805, 96193009705, 96191008804

$11.99

$

In Stock, only 1 left!

0

7

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

Note: For all EXCEPT 96193009706, 96191008805

$2.49

$

In Stock, Qty 20+

0
