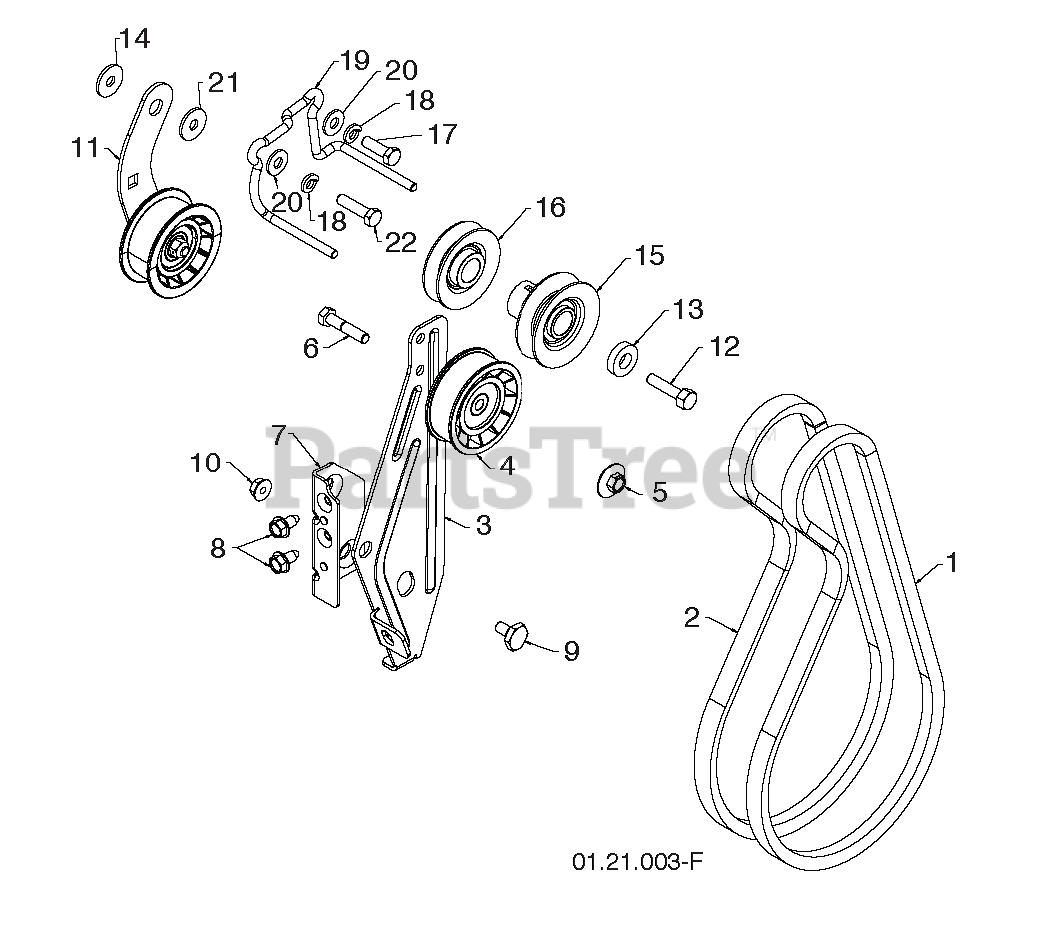

ST 230 E (961950016-03) - Husqvarna 30" Snow Blower (2013-08) "CHASSIS, ENGINE & PULLEYS" 3 Parts Diagram

30" Snow Blower

"CHASSIS, ENGINE & PULLEYS" 3 Parts Diagram

  • Title

18

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, only 3 left!

0

4

Husqvarna 532180523

PULLEY.W/SPACER.2.75
(Superseded to 594095301)

$13.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 532400026

WASHER, FLAT 3/8

$9.49

$

In Stock, only 3 left!

0

2

Husqvarna 532419744

V-BELT TRACTION 34.25

$34.99

$

In Stock, Qty 20+

0

9

Husqvarna 532424297

BOLT.SHOULDER.1/2X12

$

$

Not available

21

Husqvarna 532175331

RP BUSHING, IDLER PIVOT
(Superseded to 587343701)

$6.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532155415

WASHER.20X8.5

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$1.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532426589

NUT.FLANGE.HEX.5/16X18.BLACK
(Superseded to 585802801)

$5.99

$

In Stock, only 3 left!

0

19

Husqvarna 585058201

RB GUIDE.BELT.CHAIN.LS.SNOW
(Superseded to 585540501)

$13.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532426491

PULLEY.IMPELER.

$20.99

$

In Stock, only 2 left!

0

8

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$5.99

$

In Stock, Qty 20+

0

11

Husqvarna 585238401

ARM.ASM.TRACTION.IDLER.

$34.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532426490

PULLEY.ENG.TRACTION

$14.99

$

In Stock, only 2 left!

0

7

Husqvarna 585284901

BRACKET.IDLER.PIVOT.ZINC
(Superseded to 532423990)

$

$

Not available

1

Husqvarna 532408007

BELT.V.IMPELLER

$43.99

$

In Stock, Qty 20+

0

14

Husqvarna 532059289

STEEL WASHER

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 874610520

CAPSCREW.HEXHD.5/16X1.25.

$9.49

$

Usually ships in 3-10 days

0

17

Husqvarna 874610516

SCREW

$4.99

$

In Stock, Qty 5

0

3

Husqvarna 584232402

ARM.IDLER BRAKE.CLEAR.ZINC

$

$

Not available

10

Husqvarna 532751153

NUT.LOCK.5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, only 3 left!

0
