ST 230 - Husqvarna 30" Snow Blower ENGINE Parts Diagram

30" Snow Blower

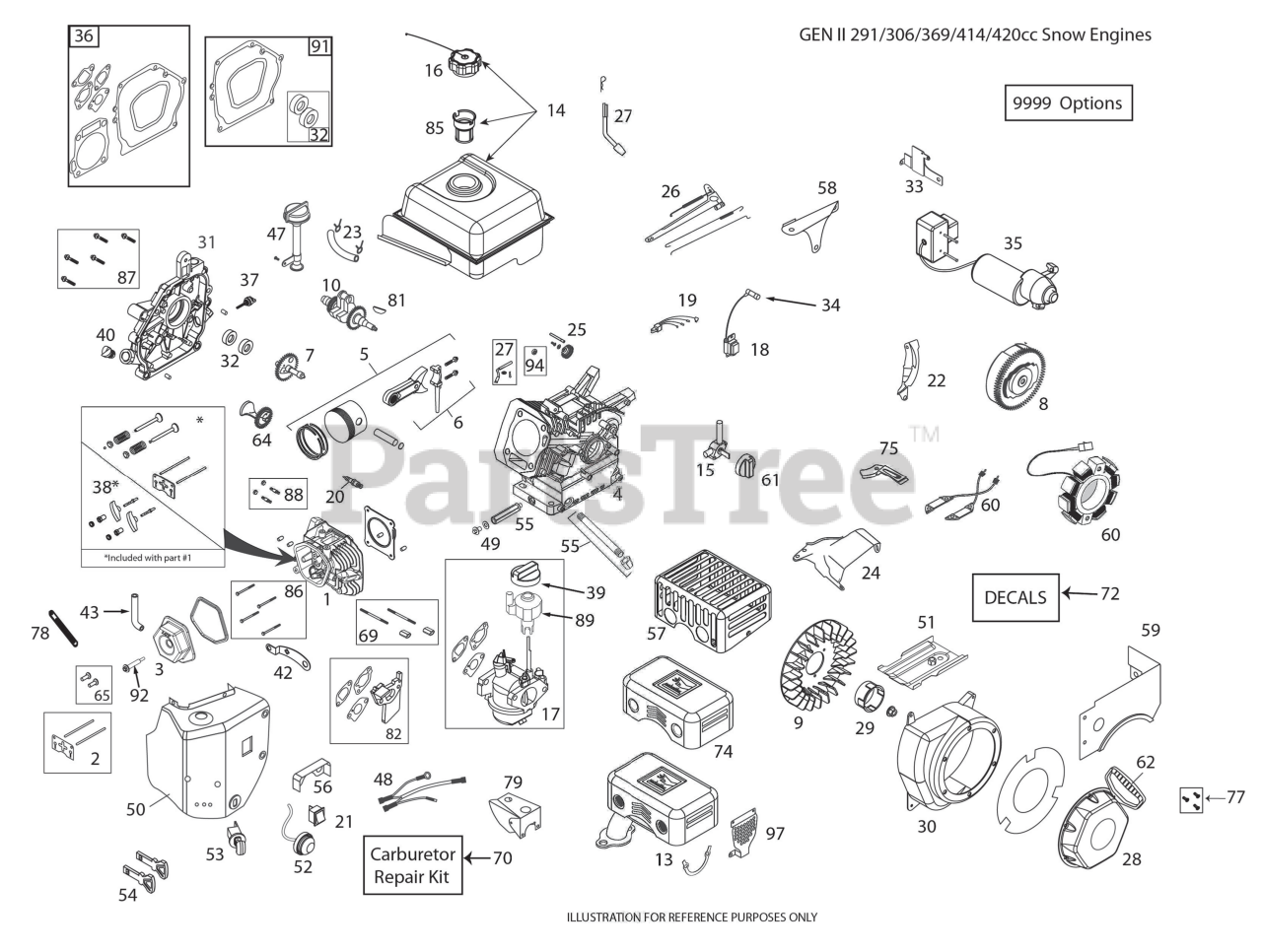

ENGINE Parts Diagram

  • Title

42

Husqvarna 532429257

CDI.BOX.BRKT.SNOW(SKSN4402)

$

$

Not available

9

Husqvarna 532429238

FLYWHEEL.FAN

$20.99

$

In Stock, only 2 left!

0

43

Husqvarna 587179601

BREATHER TUBE LCT 291/369/414

$5.99

$

In Stock, only 1 left!

0

85

Husqvarna 586325601

STRAINER.FUEL.TANK.LCT.208CC

$4.99

$

In Stock, Qty 12

0

3

Husqvarna 532429303

VALVE.COVER.LCT.414CC.

$33.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532437463

STARTER, ELECTRIC, 230V
(Superseded to 583519801)

$376.99

$

In Stock, only 2 left!

0

1

Husqvarna 532429254

CYLINDER.HEAD.ASSY(SK2911000)

$359.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532429255

SPARK.PLUG(SK2911550)
(Superseded to 532424939)

$15.99

$

In Stock, Qty 7

0

32

Husqvarna 532429283

OIL.SEAL.KIT(SK2913900)

$14.99

$

In Stock, only 1 left!

0

75

Husqvarna 590922501

WIRE GUARD

$5.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532429284

WIRE.HARNESS(SKSN4406)

$35.99

$

In Stock, only 3 left!

0

51

Husqvarna 532429231

SHIELD.CYLINDER.SNOW(SK4141010

$4.99

$

Usually ships in 3-10 days

0

78

Husqvarna N/A

NEEDS DESCRIPTION

$

$

Not available

25

Husqvarna 532429292

GOVERNOR.GEAR.ASSY(SK2912900)

$28.99

$

Usually ships in 3-10 days

0

81

Husqvarna 585297202

KEYS.FLYWHEEL.136/291CC.5PACK

Note: NOT SHOWN

$29.99

$

Usually ships in 3-10 days

0

57

Husqvarna 582668401

MUFFLER GUARD.CE.LCT

$65.99

$

Usually ships in 3-10 days

0

13

Husqvarna 587198701

MUFFLER ASSY LCT SNO

$203.99

$

Usually ships in 3-10 days

0

69

Husqvarna 586326601

STUD.CARB.MOUTING.KIT.291CC

$

$

Not available

34

Husqvarna 532436966

SPARK.PLUG.BOOT.SNW,SKSN4691.1

$21.99

$

In Stock, only 2 left!

0

77

Husqvarna 532432688

BOLT.KIT.RECOIL.LCT.ALL.ENGINE

$4.99

$

In Stock, Qty 5

0

2

Husqvarna 532429613

PUSH ROD TAPPET KIT
(Superseded to 581618401)

$53.99

$

Usually ships in 3-10 days

0

74

Husqvarna 587375301

MUFFLER SHIELD

$35.99

$

Usually ships in 3-10 days

0

9999

Husqvarna 586326401

HIGH.ALTITUDE.JET.6000FT ANDUP

$23.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532429225

GOVERNOR.LINK.SHIELD(SKSN2501)

$8.49

$

Usually ships in 3-10 days

0

88

Husqvarna 586326801

STUD.MUFFLER.KIT.LCT

$2.49

$

In Stock, only 4 left!

0

18

Husqvarna 532443897

COIL.IGN.CDI.SKSN2403.1
(Superseded to 532443944)

$71.99

$

In Stock, only 2 left!

0

47

Husqvarna 532429237

HIGHOIL.FILL.ASSY.KIT(SKSN4911

$11.99

$

In Stock, only 2 left!

0

26

Husqvarna 532429248

GOVERNOR.ARM.ASSY.(SKSN2502)

$9.99

$

Usually ships in 3-10 days

0

28

Husqvarna 582621101

STARTER RECOIL.291/306CC.LCT

$96.99

$

Usually ships in 3-10 days

0

59

Husqvarna 582621401

FUEL TANK SKIRT.LCT.291/306CC

$45.99

$

Usually ships in 3-10 days

0

92

Husqvarna 587995201

CENTER VALVE COVER BOLT

$6.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532443059

KEY SET(2 KEYS) SKSN0407.1

$15.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532429234

FUEL.PETCOCK.SNOW(SKSN4900)

$20.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532429224

CHOKE.KNOW.SNOW(SKSN4500)

$9.99

$

In Stock, only 2 left!

0

52

Husqvarna 532429218

PRIMER.BULB.ASSY(SKSN4304)
(Superseded to 595079601)

$

$

Not available

82

Husqvarna 585020502

SPACER.CARBURETOR.291CC.LCT

$7.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532429221

KEY.SWITCH.ASSY.SNOW(SKSN4401)
(Superseded to 532424954)

$23.99

$

In Stock, only 1 left!

0

29

Husqvarna 582621301

STARTER CUP.LCT.291/306CC

$23.99

$

Usually ships in 3-10 days

0

17

Husqvarna 597937201

CARBURETORS

$191.99

$

In Stock, only 1 left!

0

30

Husqvarna 582621201

BLOWER HOUSING.LCT.291/306CC W

$77.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532429206

HEATER.BOX.ASSY.SNOW(SKSN2100)

$79.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532434889

FUEL TANK ASSY - SNOW (291CC)

$167.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532429223

ON/OFF.SWITCH.SNOW(SKSN4403)

$14.99

$

Usually ships in 3-10 days

0

6

Husqvarna 587142601

CONNECTING ROD ASSY SNO.LCT

$131.99

$

Usually ships in 3-10 days

0

10

Husqvarna 590922201

CRANKSHAFT

$263.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532435534

DIPSTK.OIL.BLK.LCTSK4143711.1

$14.99

$

In Stock, only 2 left!

0

9999

Husqvarna 579806401

KIT.BOLT.LCT.SK9990.1

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532429612

ROCKER ARM KIT

$14.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532429258

PISTON.AND.ROD.ASSY(SK2911400)

$113.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532429241

CRANKCASE.COVER.ASY(SK2913600)

$263.99

$

Usually ships in 3-10 days

0

86

Husqvarna 586327401

KIT.BOLT.CYLINDER.HEAD.(4PC)

$21.99

$

Usually ships in 3-10 days

0

4

Husqvarna 587142501

CYLINDER ASSY SNO.LCT
(Superseded to 580426107)

$1367.99

$

Usually ships in 3-10 days

0

91

Husqvarna 587994103

GASKET KIT CRANKSHAFT.LCT

$34.99

$

In Stock, only 1 left!

0

60

Husqvarna 532443896

ALTERN.60WATT.SKSN2402.1

$136.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532435579

TOP.SHIELD.LCT.
(Superseded to 597505201)

$21.99

$

Usually ships in 3-10 days

0

65

Husqvarna 581372901

TAPPET KIT.LCT.SK2911005.1

$15.99

$

Usually ships in 3-10 days

0

70

Husqvarna 580353701

CARBURETTOR REPAIR KIT 291CC/4

$65.99

$

In Stock, only 4 left!

0

33

Husqvarna 587142801

SWITCHBOX BRACKET ES LCT 291 S

$10.99

$

Usually ships in 3-10 days

0

87

Husqvarna 586327201

KIT.7-BOLT.CRANKCASE.CVR.291CC

$21.99

$

Usually ships in 3-10 days

0

79

Husqvarna 587152001

SHIELD CARBURRETOR COVER 414

$14.99

$

Usually ships in 3-10 days

0

89

Husqvarna 587124801

KNOB LCT.SKSN5325.1 SPEED

$9.99

$

In Stock, only 4 left!

0

27

Husqvarna 532429250

GOVERNOR.SHAFT.(SK2913100)

$10.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532443899

HANDLE.RECOIL.DELUXE.LCT

$21.99

$

In Stock, only 2 left!

0

56

Husqvarna 532429213

SHIELD.VAPOR(SKSN4606)

$35.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532443895

FLYWHEEL.EL.ST.SKSNO2401.1

$239.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532432146

FUEL HOSE KIT
(Superseded to 532438014)

$11.99

$

In Stock, only 2 left!

0

40

Husqvarna 532429242

NONREMVABLE.OIL.PLUG(SK4143715

$2.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532429615

ENGINE.GASKET.KIT(SK2914300)

$47.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532429253

CAMSHAFT.LCT.291CC

$119.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532429211

FUEL.TANK.CAP.SNOW(SKSN4301)
(Superseded to 532424942)

$11.99

$

In Stock, only 2 left!

0

61

Husqvarna 532432752

FUEL KNOB-SNOW

$9.99

$

In Stock, Qty 15

0

55

Husqvarna 587139901

OIL PIPE DRAIN EXTENDED.LCT SK

$29.99

$

Usually ships in 3-10 days

0
