ST 230 P (961910090-00) - Husqvarna 30" Snow Blower (2014-06) CONTROL PANEL & DISCHARGE CHUTE 3 Parts Diagram

30" Snow Blower

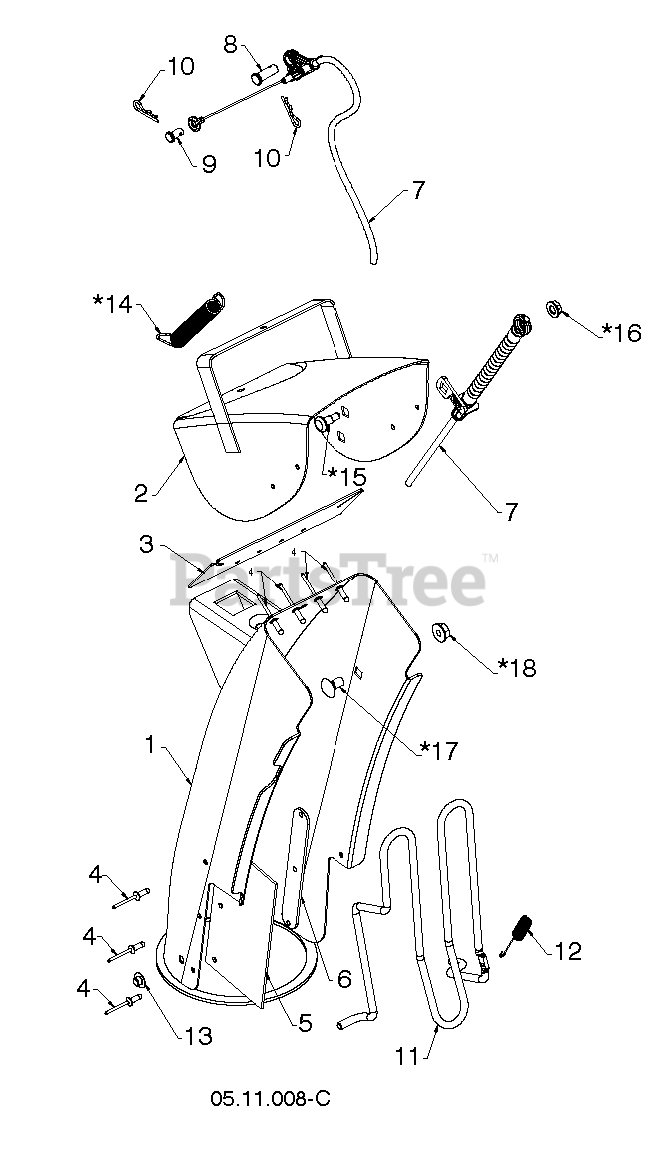

CONTROL PANEL & DISCHARGE CHUTE 3 Parts Diagram

  • Title

*14

Husqvarna 532184505

SPRING.DEFLECTOR.REM.CHUTE

Note: * ITEM PROVIDED IN THE BOP

$8.49

$

In Stock, only 2 left!

0

1

Husqvarna 532444041

CHUTE.WELDMENT.SNOW.ORANGE
(Superseded to 588077802)

$131.99

$

In Stock, only 1 left!

0

2

Husqvarna 532184113

DEFLECTOR.WELDMENT.PNT.ORANGE
(Superseded to 588077802)

$131.99

$

In Stock, only 1 left!

0

6

Husqvarna 532421728

STRAP.SHEILD.RETAINER
(Superseded to 532419822)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 581329401

PIN CLEVIS 5/16X.875

$3.99

$

In Stock, Qty 5

0

9

Husqvarna 585808301

PIN CLEVIS .25 X .31

$4.99

$

In Stock, only 4 left!

0

*16

Husqvarna 585691401

NUT.HEX.LRG.FLANGE.1/4-20.LOCK

Note: * ITEM PROVIDED IN THE BOP

$3.49

$

In Stock, only 2 left!

0

13

Husqvarna 532059349

NUT
(Superseded to 582935201)

$3.99

$

Usually ships in 3-10 days

0

*18

Husqvarna 585691501

NUT.HEX.FLANGE.LOCK.5/16-18

Note: * ITEM PROVIDED IN THE BOP

$3.99

$

In Stock, only 3 left!

0

12

Husqvarna 532435616

SPRING.CHUTE.GUARD

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532423303

HAIRPIN.SOFT.ZINC.059X1.125
(Superseded to 583404901)

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532435582

ROD.GUARD.CHUTE (2 2)
(Superseded to 593622201)

$14.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532430324

SHIELD.SNOW.CHUTE

$23.99

$

In Stock, only 1 left!

0

7

Husqvarna 586961501

CABLE CONTROL.CHUTE.DEFL.BOWDE

$33.99

$

In Stock, only 3 left!

0

*15

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

Note: * ITEM PROVIDED IN THE BOP

$4.99

$

In Stock, only 2 left!

0

3

Husqvarna 532420325

SEAL.DEFLECTOR

$7.49

$

In Stock, only 1 left!

0

*17

Husqvarna 585832201

BOLT SHOULDER 1/4

Note: * ITEM PROVIDED IN THE BOP

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532128415

RIVET BLIND

$3.49

$

Usually ships in 3-10 days

0
