ST 230 P (961930101-04) - Husqvarna 30" Snow Blower (2017-04) ACCESSORIES Parts Diagram

30" Snow Blower

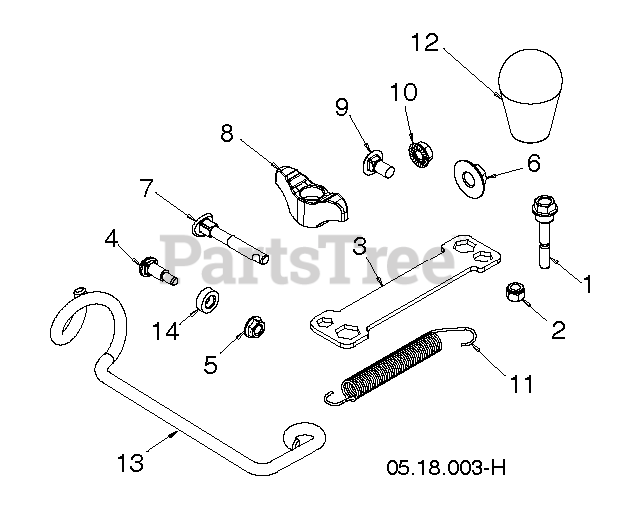

ACCESSORIES Parts Diagram

  • Title

7

Husqvarna 588059901

BOLT.CARRIAGE.5/16-18 X 2.25

$4.99

$

In Stock, only 4 left!

0

10

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$

$

Not available

12

Husqvarna 581697501

KNOB.SOFT.TOUCH.SLOTTED.428

$11.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532185577)

$9.99

$

In Stock, Qty 20+

0

2

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 532184505

SPRING.DEFLECTOR.REM.CHUTE

$8.49

$

In Stock, only 2 left!

0

4

Husqvarna 501417301

BOLT.CARR.W.3125 SHLDR..25-20

$3.99

$

In Stock, only 2 left!

0

Husqvarna 588077603

Note: NOT SHOWN-OPTIONAL

$35.99

$

Usually ships in 3-10 days

0

1

Husqvarna 588077501

BOLT.1/4-20 X 1-13/16 SHEAR
(Superseded to 588077502)

$2.49

$

In Stock, Qty 20+

0

13

Husqvarna 581897301

SUPPORT ROTATION CABLE

$9.99

$

In Stock, Qty 7

0

5

Husqvarna 585691401

NUT.HEX.LRG.FLANGE.1/4-20.LOCK

$3.49

$

In Stock, only 2 left!

0

14

Husqvarna 501417401

WASHER.NYLON.326 X.625 X.205

$3.99

$

In Stock, only 2 left!

0

9

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

$4.99

$

In Stock, only 2 left!

0

3

Husqvarna 532429112

WRENCH.SNOWTHROWER.ZINC.YZ

$

$

Not available

6

Husqvarna 585691001

NUT.HEX.FLANGE.LOCK BLK 3/8-16

$

$

Not available
