ST 230 P - Husqvarna 30" Snow Blower CONTROL PANEL & DISCHARGE CHUTE Parts Diagram

30" Snow Blower

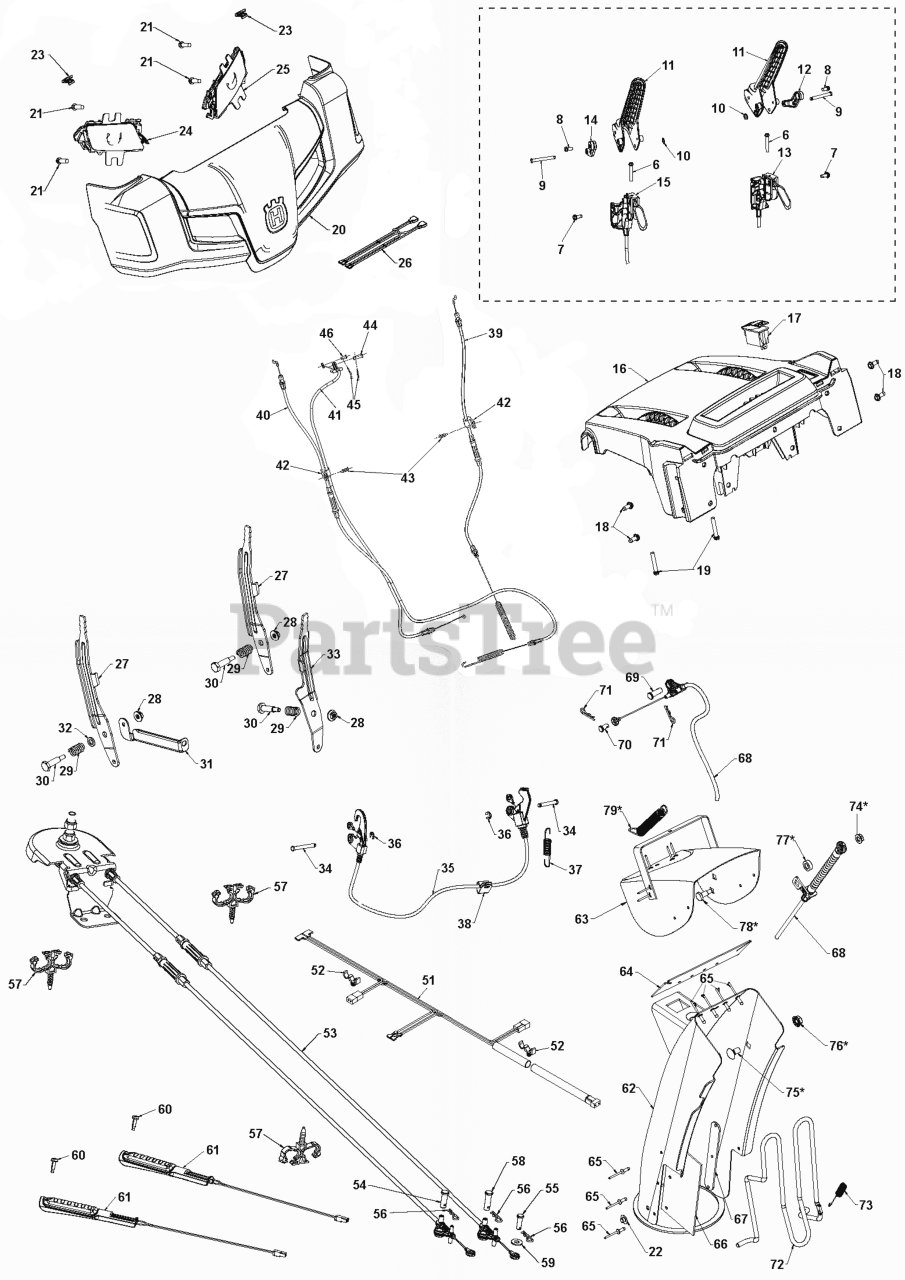

CONTROL PANEL & DISCHARGE CHUTE Parts Diagram

  • Title

78*

Husqvarna 501417301

BOLT.CARR.W.3125 SHLDR..25-20

Note: INCLUDED IN BAG OF PARTS

$3.99

$

In Stock, only 1 left!

0

41

Husqvarna 588122301

CABLE.CONTROL.SPEED.DSST.OPP

Note: For all EXCEPT 96191009005

$17.99

$

Usually ships in 3-10 days

0

57

Husqvarna 584652201

CLIP.CONDUIT.DOUBLE LOOP

$3.49

$

In Stock, only 4 left!

0

68

Husqvarna 590587001

CABLE.CONTROL.CHUTE.DEFLEC
(Superseded to 590587002)

Note: For all EXCEPT 96191009005, 96193010106

$27.99

$

Usually ships in 3-10 days

0

76*

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

Note: INCLUDED IN BAG OF PARTS

$

$

Not available

77*

Husqvarna 501417401

WASHER.NYLON.326 X.625 X.205

Note: INCLUDED IN BAG OF PARTS

$3.99

$

In Stock, only 2 left!

0

58

Husqvarna 587130803

PIN CLEVIS CLEVIS

$3.99

$

In Stock, only 2 left!

0

59

Husqvarna 586682101

WASHER FLAT_.250 X .625 X .06

$3.99

$

In Stock, only 3 left!

0

15

Husqvarna 588263901

CABLE.POWER STEERING.LHS

Note: LH

$21.99

$

In Stock, Qty 5

0

16

Husqvarna 581131204

CONSOLE.BASE.MULTICONT.498SWIT
(Superseded to 581131212)

$62.99

$

In Stock, Qty 20+

0

13

Husqvarna 588263902

CABLE.POWER STEERING.RHS

Note: RH

$21.99

$

In Stock, only 2 left!

0

71

Husqvarna 532423303

HAIRPIN.SOFT.ZINC.059X1.125
(Superseded to 583404901)

$3.49

$

Usually ships in 3-10 days

0

40

Husqvarna 588113802

CABLE.CONTROL.AUGER

$21.99

$

Usually ships in 3-10 days

0

29

Husqvarna 581329601

SPRING.COMPRESSION.82LBS

$4.99

$

In Stock, Qty 5

0

19

Husqvarna 581329501

SCREW HEX_WASH_13-16 X 1.50_H

$5.99

$

In Stock, Qty 9

0

44

Husqvarna 581329401

PIN CLEVIS 5/16X.875

$3.99

$

In Stock, Qty 5

0

70

Husqvarna 585808301

PIN CLEVIS .25 X .31

$4.99

$

In Stock, only 4 left!

0

36

Husqvarna 812000014

E-RING

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 586723501

LIGHT ASM.HUSQVARNA.RH

Note: RH

$83.99

$

In Stock, only 1 left!

0

11

Husqvarna 587463001

LEVER CONTROL DSST OPP MPP

$14.99

$

In Stock, only 3 left!

0

39

Husqvarna 582519002

CABLE.DRIVE CONTROL W/ADJ

$23.99

$

In Stock, Qty 20+

0

52

Husqvarna 532145006

PUSH CLIP

$3.99

$

In Stock, only 1 left!

0

54

Husqvarna 581329401

PIN CLEVIS 5/16X.875

$3.99

$

In Stock, Qty 5

0

31

Husqvarna 584468402

BRACE.SUPPORT.SPEED.BLACK

$2.49

$

In Stock, only 2 left!

0

12

Husqvarna 587739702

LEVER.CABLE.ARM.RHS.BLACK

Note: RH

$5.99

$

In Stock, Qty 6

0

7

Husqvarna 817060410

SCREW 14-20 X 5/8

$3.99

$

In Stock, Qty 5

0

73

Husqvarna 532435616

SPRING.CHUTE.GUARD

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532197991

CLIP.CABLE.BLK

$3.99

$

In Stock, Qty 11

0

61

Husqvarna 532442250

SCREW.PAN.HD.TORX.1/4-20X.750

$4.99

$

In Stock, only 3 left!

0

27

Husqvarna 581123902

LEVER.CONTROL.SPEED/DEFLEC.BLK

$9.99

$

In Stock, only 2 left!

0

67

000000000

Note: RETAINER

$

$

Not available

9

Husqvarna 588147701

PIN.GROOVED

$4.99

$

In Stock, Qty 8

0

79*

Husqvarna 532184505

SPRING.DEFLECTOR.REM.CHUTE

Note: INCLUDED IN BAG OF PARTS

$8.49

$

In Stock, only 2 left!

0

53

Husqvarna 581680302

CABLE ASSY CONTROL
(Superseded to 598803401)

$71.99

$

In Stock, only 4 left!

0

65

000000000

Note: POP RIVET

$

$

Not available

69

Husqvarna 581329401

PIN CLEVIS 5/16X.875

$3.99

$

In Stock, Qty 5

0

28

Husqvarna 586668901

NUT HEX_LRG FLG_1_4-20_LOCK

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 532423303

HAIRPIN.SOFT.ZINC.059X1.125
(Superseded to 583404901)

$3.49

$

Usually ships in 3-10 days

0

46

Husqvarna 585808301

PIN CLEVIS .25 X .31

$4.99

$

In Stock, only 4 left!

0

63

000000000

Note: DEFLECTOR

$

$

Not available

41

Husqvarna 593848401

Cables

Note: For 96191009005

$21.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532194189

SCREW.HWH.13-16-5.8.BZP

$4.99

$

In Stock, Qty 17

0

10

Husqvarna 812000014

E-RING

$3.49

$

Usually ships in 3-10 days

0

37

Husqvarna 581151201

SPRING RETURN_INTERLOCK_DSST
(Superseded to 581151202)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 817411308

SCREW.HWH.13-16X.50

$3.99

$

In Stock, Qty 9

0

64

000000000

Note: SEAL

$

$

Not available

14

Husqvarna 587739701

LEVER.CABLE.ARM.LHS.BLACK

Note: LH

$5.99

$

In Stock, only 4 left!

0

51

Husqvarna 587535701

HARNESS WIRE.LIGHT AND GRIPS

$29.99

$

Usually ships in 3-10 days

0

20

Husqvarna 581127901

COVER CONSOLE_ASM_HUSQVARNA

$62.99

$

In Stock, only 3 left!

0

68

Husqvarna 590587002

CABLE CONTROL.CHUTE.DEFLECTOR.

Note: For 96191009005, 96193010106

$27.99

$

Usually ships in 3-10 days

0

32

Husqvarna 587031301

WASHER.FLAT.625 X .375 NYLON

$3.99

$

In Stock, Qty 6

0

74*

Husqvarna 585691401

NUT.HEX.LRG.FLANGE.1/4-20.LOCK

Note: INCLUDED IN BAG OF PARTS

$3.49

$

In Stock, only 2 left!

0

75*

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

Note: INCLUDED IN BAG OF PARTS

$4.99

$

In Stock, only 2 left!

0

66

000000000

Note: SHIELD

$

$

Not available

17

Husqvarna 585805001

SWITCH HEATED GRIP BLK

$21.99

$

Usually ships in 3-10 days

0

55

Husqvarna 877100812

PIN.CLEVIS

$3.99

$

In Stock, only 2 left!

0

62

Husqvarna 588077802

ASM.CHUTE/DEFLECTOR.668

Note: INCLUDES KEY NUMBERS 1-6

$131.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532431762

PIN.GROOVED
(Superseded to 583473901)

$3.49

$

In Stock, only 2 left!

0

60

Husqvarna 590493601

GRIP.HANDLE.HEATED

$27.99

$

In Stock, only 2 left!

0

18

Husqvarna 817060410

SCREW 14-20 X 5/8

$3.99

$

In Stock, Qty 5

0

26

Husqvarna 585868301

HARNESS.WIRE.LIGHT.JUMPER

$15.99

$

Usually ships in 3-10 days

0

33

Husqvarna 581241602

LEVER.CONTROL.CHUTE.ROTATON.BL

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 581928701

CLIP PANEL ERGO 30603

$5.99

$

In Stock, only 1 left!

0

35

Husqvarna 593853401

CABLE INTERLOCK CONTROL ACETAL

$35.99

$

In Stock, Qty 9

0

38

Husqvarna 532197991

CLIP.CABLE.BLK

$3.99

$

In Stock, Qty 11

0

6

Husqvarna 581329501

SCREW HEX_WASH_13-16 X 1.50_H

$5.99

$

In Stock, Qty 9

0

22

Husqvarna 532059349

NUT
(Superseded to 582935201)

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$2.49

$

In Stock, only 2 left!

0

72

Husqvarna 532435582

ROD.GUARD.CHUTE (2 2)
(Superseded to 593622201)

Note: For all EXCEPT 96191009005, 96193010106

$14.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532423303

HAIRPIN.SOFT.ZINC.059X1.125
(Superseded to 583404901)

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 586723601

LIGHT ASM.HUSQVARNA.LH

Note: LH

$79.99

$

Usually ships in 3-10 days

0

30

Husqvarna 581329702

BOLT SHOULDER_HEX HD_1/4-20_3/

$3.99

$

In Stock, only 2 left!

0
