ST 2368 EP (961910092-01) - Jonsered Snow Thrower (2015-07) CONTROL PANEL DISCHARGE CHUTE Parts Diagram

Snow Thrower

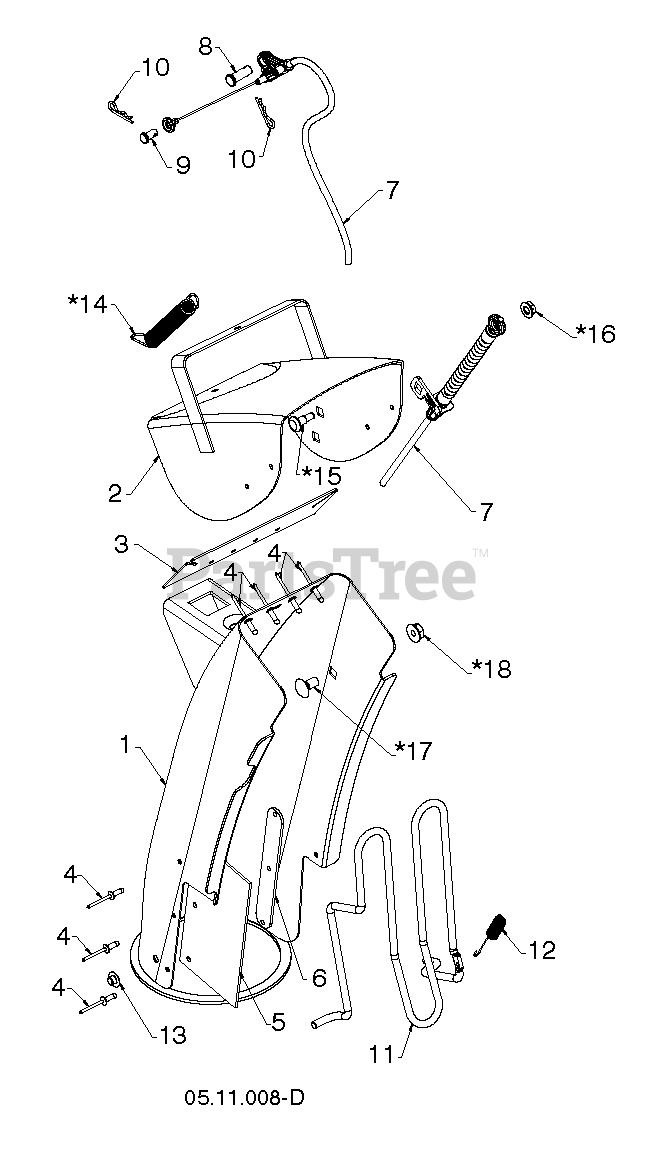

CONTROL PANEL DISCHARGE CHUTE Parts Diagram

  • Title

1

Jonsered 588077804

DEFLECTOR.WELDMENT.RED

Note: INCLUDES KEY NUMBERS 1-6. 1-6

$

$

Not available

2

Jonsered 000000000

No Description Available

Note: DEFLECTOR

$

$

Not available

3

Jonsered 000000000

No Description Available

Note: SEAL

$

$

Not available

4

Jonsered 000000000

No Description Available

Note: POP RIVET

$

$

Not available

5

Jonsered 000000000

No Description Available

Note: SHIELD

$

$

Not available

6

Jonsered 000000000

No Description Available

Note: RETAINER

$

$

Not available

7

Jonsered 586961501

Deflector Chute Control Cable

$33.99

$

In Stock, only 3 left!

0

8

Jonsered 581329401

Clevis Pin, 5/16 X .875

$3.99

$

In Stock, only 2 left!

0

9

Jonsered 585808301

Clevis Pin, .25 X .31

$4.99

$

In Stock, only 2 left!

0

10

Jonsered 532423303

Hair Pin, .059 X 1.125
(Superseded to 583404901)

$3.99

$

In Stock, Qty 5

0

11

Jonsered 532435582

No Description Available

$14.99

$

Usually ships in 3-10 days

0

12

Jonsered 532435616

No Description Available

$3.99

$

Usually ships in 3-10 days

0

13

Jonsered 532059349

No Description Available
(Superseded to 582935201)

$3.99

$

Usually ships in 3-10 days

0

14

Jonsered 532184505

SPRING

Note: INCLUDED IN BAG OF PARTS

$8.49

$

In Stock, only 2 left!

0

15

Jonsered 585832001

Carriage Bolt, 5/16-18 X 5/8 Black

Note: INCLUDED IN BAG OF PARTS

$4.99

$

In Stock, only 2 left!

0

16

Jonsered 585691401

Flange Hex Lock Nut, 1/4-20 Large

Note: INCLUDED IN BAG OF PARTS

$3.49

$

In Stock, only 2 left!

0

17

Jonsered 585832001

Carriage Bolt, 5/16-18 X 5/8 Black

Note: INCLUDED IN BAG OF PARTS

$4.99

$

In Stock, only 2 left!

0

18

Jonsered 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

Note: INCLUDED IN BAG OF PARTS

$3.99

$

In Stock, Qty 20+

0
