ST 2376 EP (961910093-00) - Jonsered Snow Thrower (2014-07) CONTROL PANEL DISCHARGE CHUTE Parts Diagram

Snow Thrower

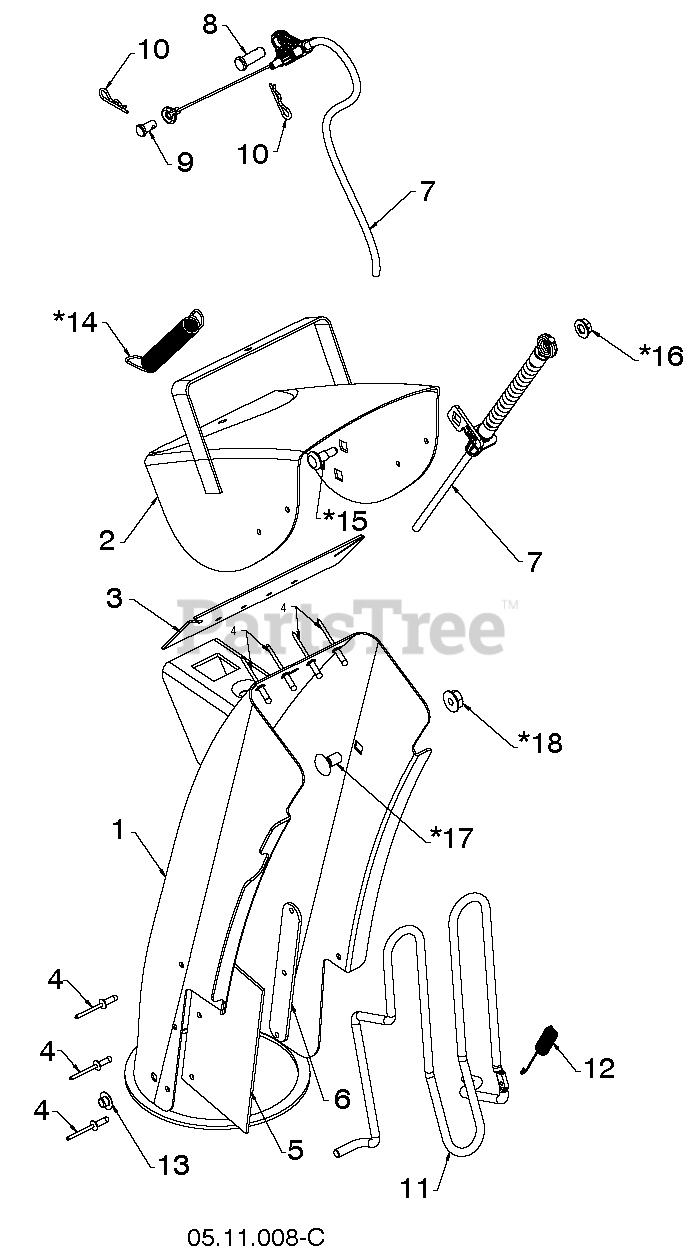

CONTROL PANEL DISCHARGE CHUTE Parts Diagram

  • Title

1

Jonsered 532444041

CHUTE.WELDMENT.PNT.ORANGE

$62.99

$

Usually ships in 3-10 days

0

2

Jonsered 532184113

DEFLECTOR.WELDMENT.PNT.ORANGE
(Superseded to 588077802)

$131.99

$

Usually ships in 3-10 days

0

3

Jonsered 532420325

SEAL.DEFLECTOR

$7.49

$

In Stock, only 1 left!

0

4

Jonsered 532128415

RIVET BLIND

$3.49

$

Usually ships in 3-10 days

0

5

Jonsered 532430324

SHIELD.SNOW.CHUTE

$23.99

$

In Stock, only 1 left!

0

6

Jonsered 532421728

STRAP.SHEILD.RETAINER

$

$

Not available

7

Jonsered 586961501

Deflector Chute Control Cable

$33.99

$

In Stock, only 3 left!

0

8

Jonsered 581329401

Clevis Pin, 5/16 X .875

$3.99

$

In Stock, Qty 5

0

9

Jonsered 585808301

Clevis Pin, .25 X .31

$4.99

$

In Stock, only 4 left!

0

10

Jonsered 532423303

Hair Pin, .059 X 1.125
(Superseded to 583404901)

$3.49

$

Usually ships in 3-10 days

0

11

Jonsered 532435582

No Description Available

$14.99

$

Usually ships in 3-10 days

0

12

Jonsered 532435616

No Description Available

$3.99

$

Usually ships in 3-10 days

0

13

Jonsered 532059349

No Description Available
(Superseded to 582935201)

$3.99

$

Usually ships in 3-10 days

0

14

Jonsered 532184505

SPRING

Note: ITEM PROVIDED IN THE BOP

$8.49

$

In Stock, only 4 left!

0

15

Jonsered 585832201

Shoulder Bolt, 1/4

Note: ITEM PROVIDED IN THE BOP

$3.49

$

Usually ships in 3-10 days

0

16

Jonsered 585691401

Flange Hex Lock Nut, 1/4-20 Large

Note: ITEM PROVIDED IN THE BOP

$3.49

$

In Stock, only 3 left!

0

17

Jonsered 585832001

Carriage Bolt, 5/16-18 X 5/8 Black

Note: ITEM PROVIDED IN THE BOP

$4.99

$

In Stock, only 2 left!

0

18

Jonsered 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

Note: ITEM PROVIDED IN THE BOP

$3.99

$

In Stock, Qty 20+

0
