ST 2446 (2691570-00) - Snapper 46" Lawn Tractor, Hydro Drive, 24hp Seat Group Parts Diagram

46" Lawn Tractor, Hydro Drive, 24hp

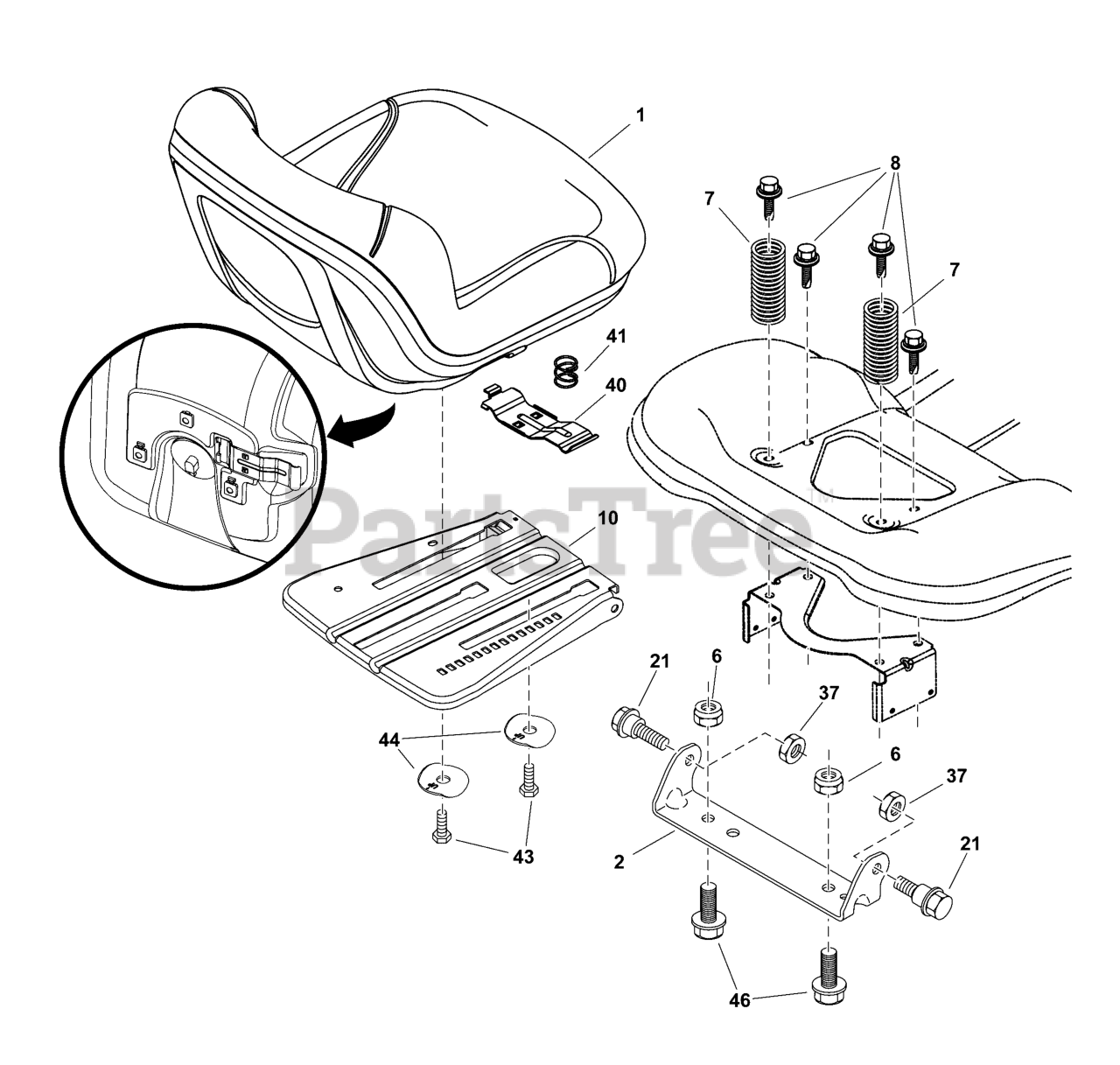

Seat Group Parts Diagram

  • Title

1

Snapper 705174

Seat

$471.99

$

Usually ships in 2-12 days

0

2

Snapper 705043

BRACKET, Pivot

$12.99

$

Usually ships in 2-12 days

0

6

Snapper 705351

Nut, Lock w/Ins. 3/8-16 unc

$6.49

$

Usually ships in 2-12 days

0

7

Snapper 84004037

SPRING, SEAT CPRSN

$8.99

$

Usually ships in 2-12 days

0

8

Snapper 705031

Bolt 5/16-18 unc x 3/4 w/Sems

$7.49

$

Usually ships in 2-12 days

0

10

Snapper 84004039

PAN, Seat

$54.99

$

Usually ships in 2-12 days

0

21

Snapper 84004322

BOLT, 5/16-18 x 5/8, Shoulder

$

$

Currently unavailable

37

Snapper 705350

Nut, Lock 5/16-18 unc

$5.99

$

Usually ships in 2-12 days

0

40

Snapper 705116

Handle Slide Seat

$8.99

$

Usually ships in 2-12 days

0

41

Snapper 705122

Spring Latch Seat

$9.49

$

Usually ships in 2-12 days

0

43

Snapper 705365

Bolt Fin Hex 3/8-16 unc x 3/4

$5.99

$

In Stock, only 1 left!

0

44

Snapper 84004040

WASHER, Winged

$8.99

$

Usually ships in 2-12 days

0

46

Snapper 84004042

BOLT, 3/8-16 X 1, 1.25 OD, WSH SEMS

$8.49

$

Usually ships in 2-12 days

0
