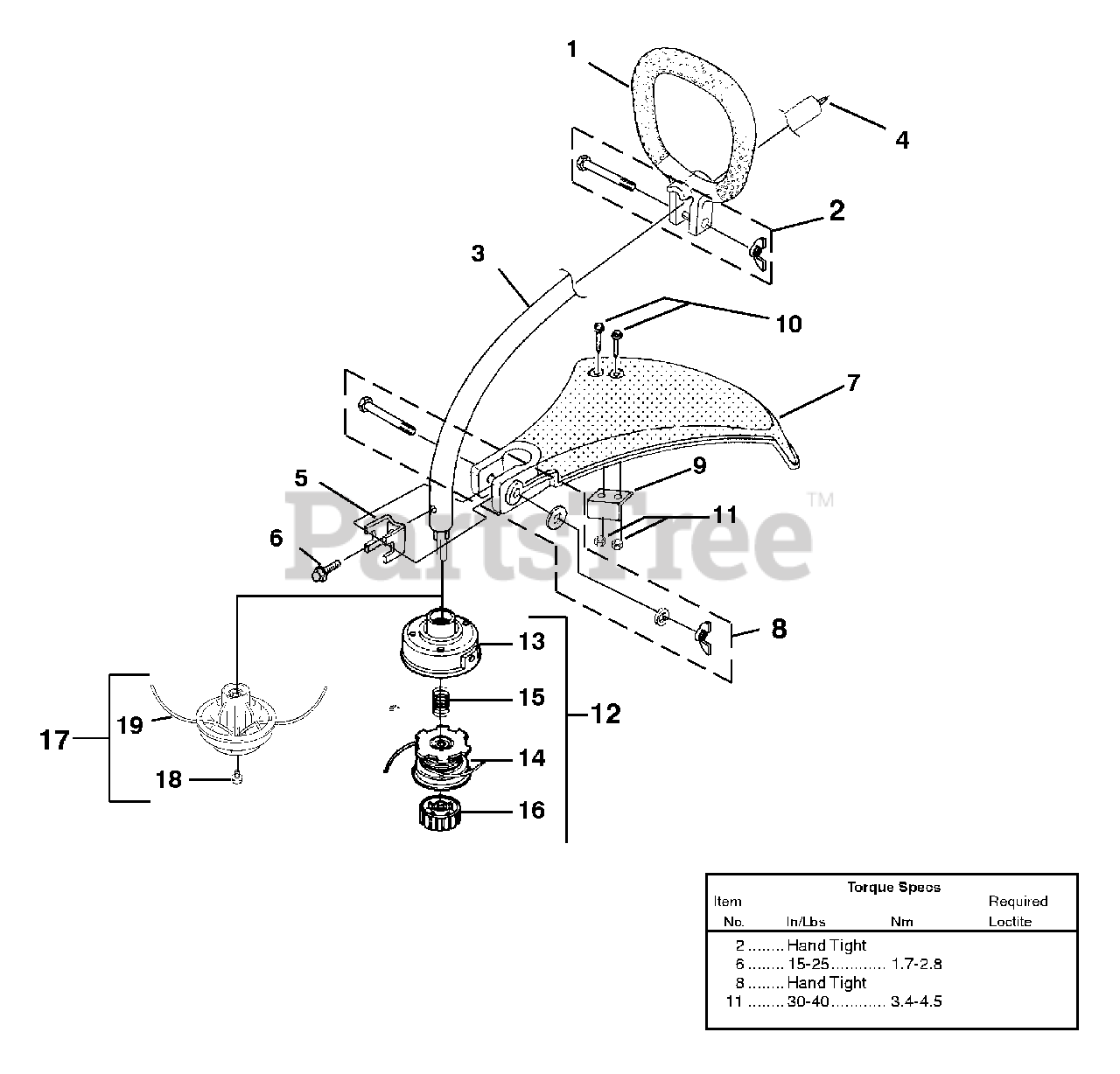

ST 2517 CRG (UT-20819) - Homelite String Trimmer Shaft - Spool & String - Grass Deflector Parts Diagram

String Trimmer

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite UP03010A

HANDLE ASSY.-Front

Note: Includes item 2

$

$

Not available

2

Homelite PA00249

FASTENER PARTS KIT

$

$

Not available

3

Homelite PA00472A

DRIVESHAFT HOUSING ASSY.
(Superseded to 985380001)

Note: Includes items 4-6

$

$

Not available

4

Homelite PS01502

SHAFT-Flexible
(Superseded to 986117001)

$

$

Not available

5

Homelite 07928

CLAMP
(Superseded to UP04137)

$

$

Not available

6

Homelite 983823001

SCREW-T.F. Hex Hd. (10-32 X 3/8")
(Superseded to 660647001)

$2.49

$

In Stock, Qty 10

0

7

Homelite UP06710A

DEFLECTOR & BLADE KIT (55 Deg.)
(Superseded to T308744001)

Note: Includes items 8-11

$

$

Not available

8

Homelite PA00249

FASTENER PARTS KIT

$

$

Not available

9

Homelite UP04119

BLADE-Cut-Off

$

$

Not available

10

Homelite 82531

SCREW-Mach. Hex Hd. (10-24 X 7/8")
(Superseded to 660616001)

$

$

Not available

11

Homelite 81261

NUT-Hex (10-24)

$

$

Not available

12

Homelite UP04408

STRINGHEAD-Complete
(Superseded to UP04408A)

Note: Includes items 13-16

$

$

Not available

13

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

14

Homelite PA0387A

SPOOL & STRING (.080" Line)
(Superseded to 308044002)

$

$

Not available

15

Homelite 06713

SPRING-Compression

$2.49

$

In Stock, only 1 left!

0

16

Homelite A98866A

RETAINER-Spool (RH Thread, Black)
(Superseded to 308042002)

$

$

Not available

17

Homelite DA09364A

STRINGHEAD-Pro-Cut w/line
(Superseded to 308925001)

Note: (UT20819, UT20820); Includes item 18

$

$

Not available

18

Homelite PS00082

SCREW-Stringhead Retainer

$

$

Not available

19

Homelite PS00319

LINE-Replacement

$

$

Not available
