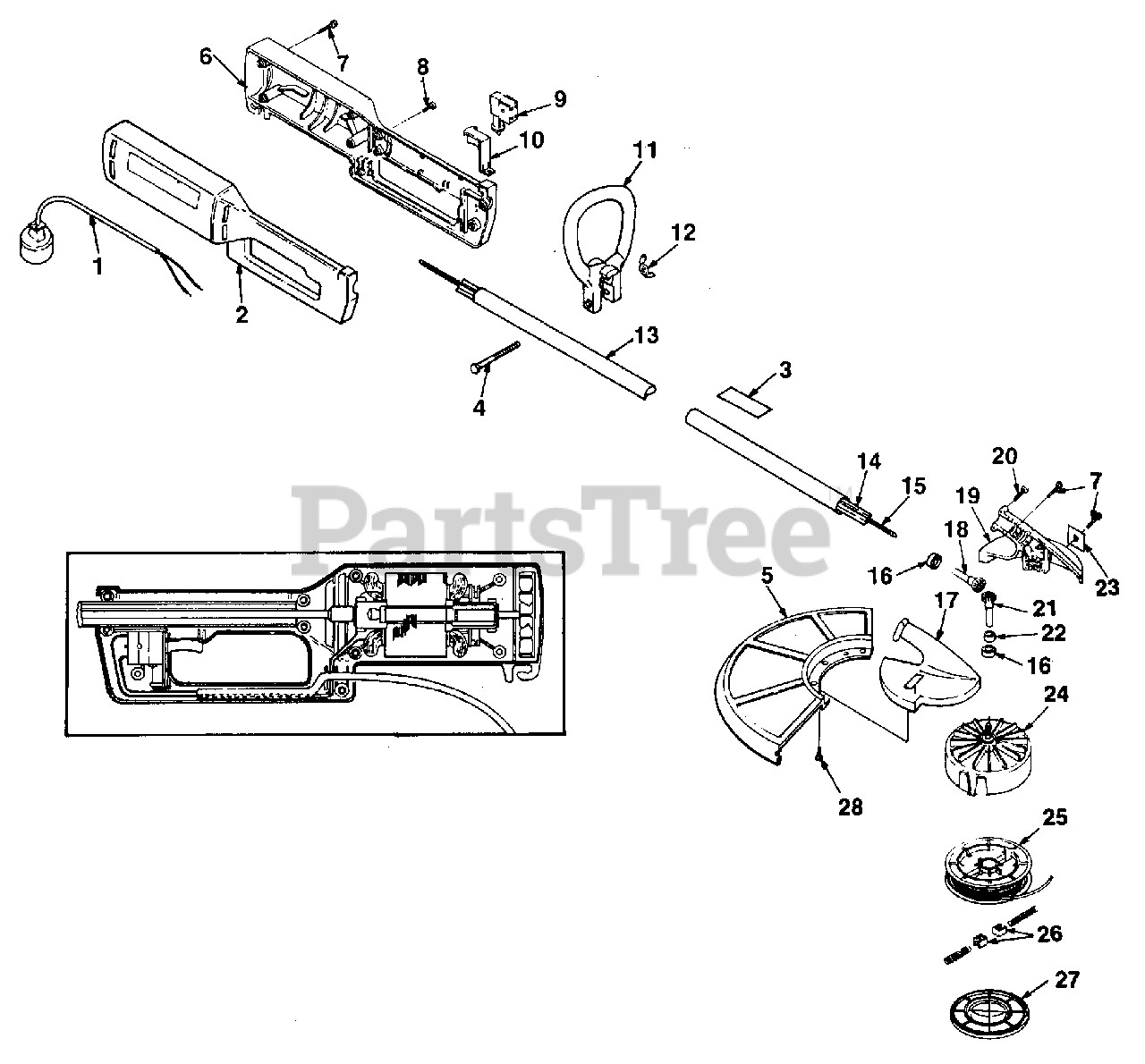

ST 30 (UT-21523) - Homelite Electric String Trimmer Exploded View Parts Diagram

Electric String Trimmer

Exploded View Parts Diagram

  • Title

1

Homelite 98720A

CORD SET

$

$

Currently unavailable

2

Homelite 98980

HOUSING- Motor (right)

$

$

Not available

Homelite 989801

HOUSING- Motor (right) ST-30C

$

$

Not available

3

Homelite 00308

LABEL- Warning
(Superseded to 983751001)

$

$

Not available

4

Homelite 80295

SCREW- Hex hd. 1/4-20 x 2

$2.99

$

Usually ships in 3-7 days

0

5

Homelite A00639

STRING GUARD w/Cut-off blade

$

$

Currently unavailable

6

Homelite 98979

HOUSING- Motor (left)

$

$

Not available

Homelite 989791

HOUSING Motor (left) ST-30C

$

$

Not available

7

Homelite 94065

SCREW- Thd. forming 10-16 x 3/4

$

$

Not available

8

Homelite 93243

SCREW- Thread forming #10-16 x 9/16
(Superseded to 95198)

$

$

Not available

9

Homelite 95547A

SWITCH
(Superseded to A00859)

$

$

Currently unavailable

10

Homelite 98983

TRIGGER- Switch

$

$

Not available

11

Homelite 00065

HANDLE- Front

$

$

Not available

12

Homelite 93992

NUT- Wing

$

$

Not available

13

Homelite 98978

TUBE

$

$

Not available

14

Homelite 00002

TUBE- Liner

$

$

Currently unavailable

15

Homelite 00003A

SHAFT- Flexible

$

$

Currently unavailable

16

Homelite 98843

BEARING

$

$

Not available

17

Homelite 98988A

HOUSING- Gear (Right)

$

$

Currently unavailable

18

Homelite 98990A

GEAR- Drive

$

$

Currently unavailable

19

Homelite 98987A

HOUSING- Gear (Left)

$

$

Not available

20

Homelite 82526

SCREW

$

$

Not available

21

Homelite 98989A

GEAR- Driven

$

$

Not available

22

Homelite 00441

BEARING- Flange

$

$

Not available

23

Homelite 00781

BLADE

$

$

Not available

24

Homelite A00766

STRINGHEAD & EYELET ASSY. w/Drive Connector

$

$

Currently unavailable

25

Homelite DA00825

SPOOL & STRING

$

$

Not available

26

Homelite A00826

SLIDE & SPRING KIT
(Superseded to A00826A)

$

$

Not available

27

Homelite 951371

RETAINER- Spool

$

$

Currently unavailable

28

Homelite 82524

SCREW- Thread forming #10-14 x 1/2
(Superseded to UP03888)

$

$

Not available
