ST 324 (961930126-01) - Husqvarna 24" Snow Blower (2019-03) "CHASSIS, ENGINE & PULLEYS" Parts Diagram

24" Snow Blower

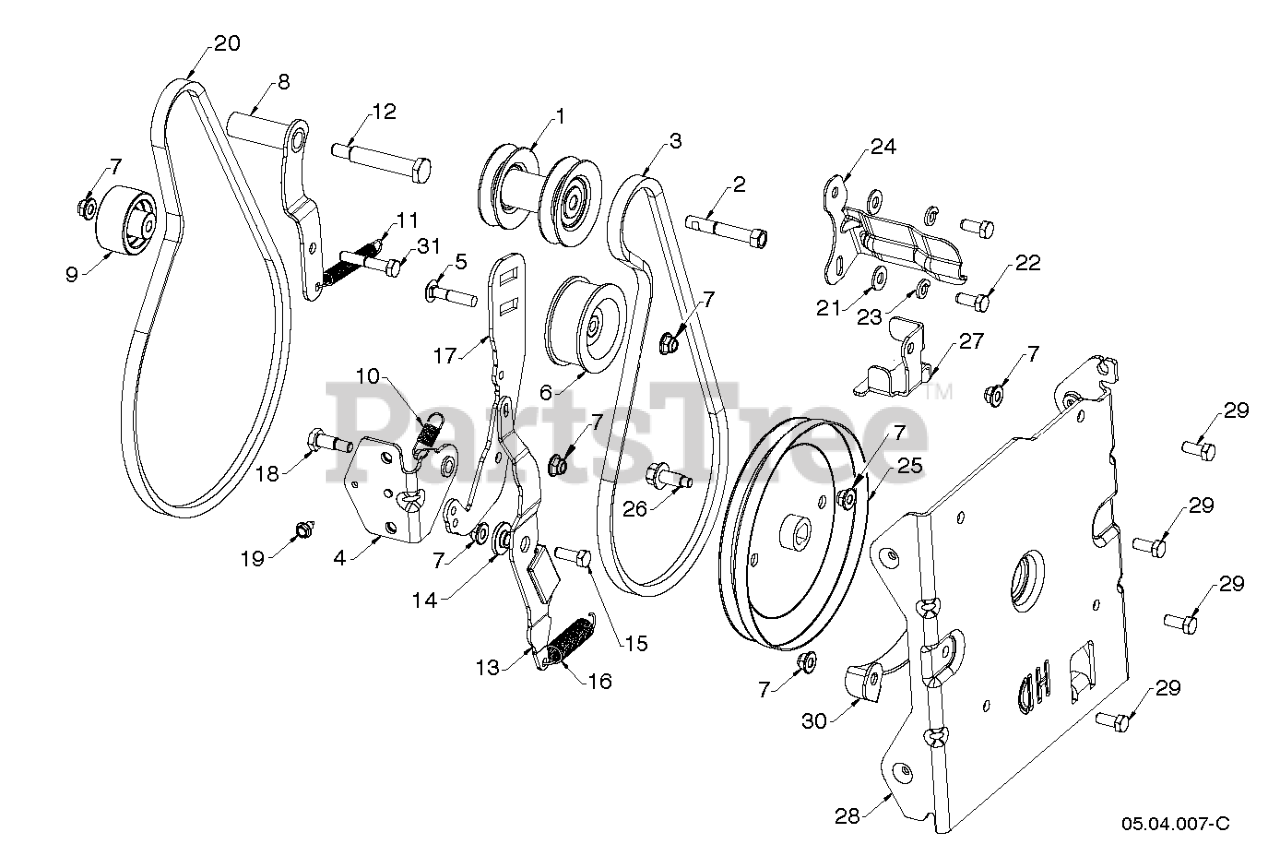

"CHASSIS, ENGINE & PULLEYS" Parts Diagram

  • Title

19

Husqvarna 817060408

SCREW

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 588492802

BELT KEEPER BRACKET

$6.49

$

In Stock, only 1 left!

0

9

Husqvarna 586880202

PULLEY.IDLER.FLNGLESS.W/SPACER

$12.99

$

In Stock, only 1 left!

0

1

Husqvarna 587893703

PULLEY.ASM.IMPELLER/DRIVE

$31.99

$

In Stock, only 4 left!

0

11

Husqvarna 580753001

SPRING RETURN IDLER ARM

$4.99

$

In Stock, Qty 12

0

25

Husqvarna 589369201

PULLEY IMPELLER DD 4L HD

$31.99

$

Usually ships in 3-10 days

0

16

Husqvarna 579763501

SPRING EXTENSION - BRAKE

$2.49

$

Usually ships in 3-10 days

0

22

Husqvarna 874610512

SCREW 5/16-24 X .75 GR5

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 582388401

BOLT.ENGINE.PULLEY

$4.99

$

In Stock, Qty 14

0

23

Husqvarna 596238801

WASHER SPRING LOCK WASHER WITH

$3.99

$

In Stock, Qty 18

0

28

Husqvarna 501595402

BRACKET AUGER HOUSING INTERFAC

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 596322201

BOLT HEXAGON BOLT 5/16-18 X 7/

$3.99

$

In Stock, only 2 left!

0

21

Husqvarna 596204101

WASHER 11/32 X 11/16 X 14 GA T

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 587587202

GUIDE.LOWER.AUGER.BELT.479

$10.99

$

In Stock, only 2 left!

0

17

Husqvarna 589262902

ARM IDLER BLACK ZINC

$7.99

$

Usually ships in 3-10 days

0

26

Husqvarna 595517901

SCREW HEXAGON HEAD FLANGE 3/8-

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 596030501

SCREW HEXAGON HEAD SCREW 5/16-

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 581338203

ARM IDLER DRIVE WELDMENT_HOT

$10.99

$

Usually ships in 3-10 days

0

14

Husqvarna 587343701

BUSHING.BRAKE.ARM

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 584216102

BELT.DRIVE.SNOW.DUAL

$15.99

$

In Stock, only 4 left!

0

12

Husqvarna 581413801

BOLT 5/16-24X2.25 HEX HEAD SHO

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 579763301

ARM IMPELLER BRAKE

$30.99

$

In Stock, only 1 left!

0

10

Husqvarna 589263701

SPRING IDLER RETURN

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 589262702

Pulleys

$12.99

$

Usually ships in 3-10 days

0

7

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

$4.99

$

In Stock, Qty 15

0

31

Husqvarna 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 589263402

BRACKET WELDMENT, IDLER ARM ZI

$8.99

$

Usually ships in 3-10 days

0

30

Husqvarna 581632002

BRACKET.BELT.KEEPER.LOWER.BLAC

$7.49

$

In Stock, only 4 left!

0

18

Husqvarna 589263601

SCREW HEX HEAD SHOULDER

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 589284501

BOLT 5/16-18 CARRIAGE 1.5L

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 501818201

LOW CRANK IMPELLER BELT

$15.99

$

In Stock, Qty 5

0
