ST 324 (970469301-00) - Husqvarna 24" Snow Blower (2020-05) CHASSIS, ENGINE & PULLEYS Parts Diagram

24" Snow Blower

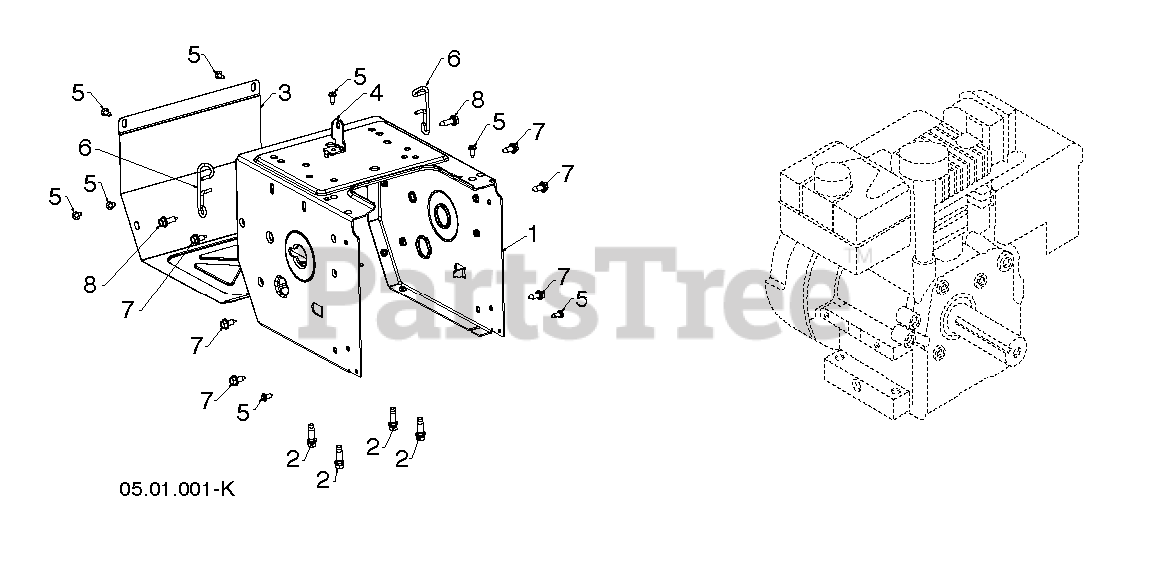

CHASSIS, ENGINE & PULLEYS Parts Diagram

  • Title

7

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$5.99

$

In Stock, Qty 9

0

Husqvarna 596958903

ENGINES

Note: COMPLETE LCT ENGINE PWRHK18750178Y

$1367.99

$

Usually ships in 3-10 days

0

1

Husqvarna 589264705

FRAME MS 668

$136.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, only 2 left!

0

5

Husqvarna 582906901

SCREW.HEX HEAD W/COLLAR 1/4-20

$3.49

$

In Stock, only 1 left!

0

6

Husqvarna 588954501

WIREFORM.SUPPORT.CABLE
(Superseded to 585206001)

$

$

Not available

4

Husqvarna 501060403

BRACKET.SHIFTER.BZP

$7.99

$

Usually ships in 3-10 days

0

3

Husqvarna 580839505

COVER COVER.FRAME MS668 ORANGE

$62.99

$

Usually ships in 3-10 days

0

8

Husqvarna 585217501

SCREW HEX_SERR_HD_5_16-18X1.0
(Superseded to 593337201)

$3.49

$

Usually ships in 3-10 days

0
