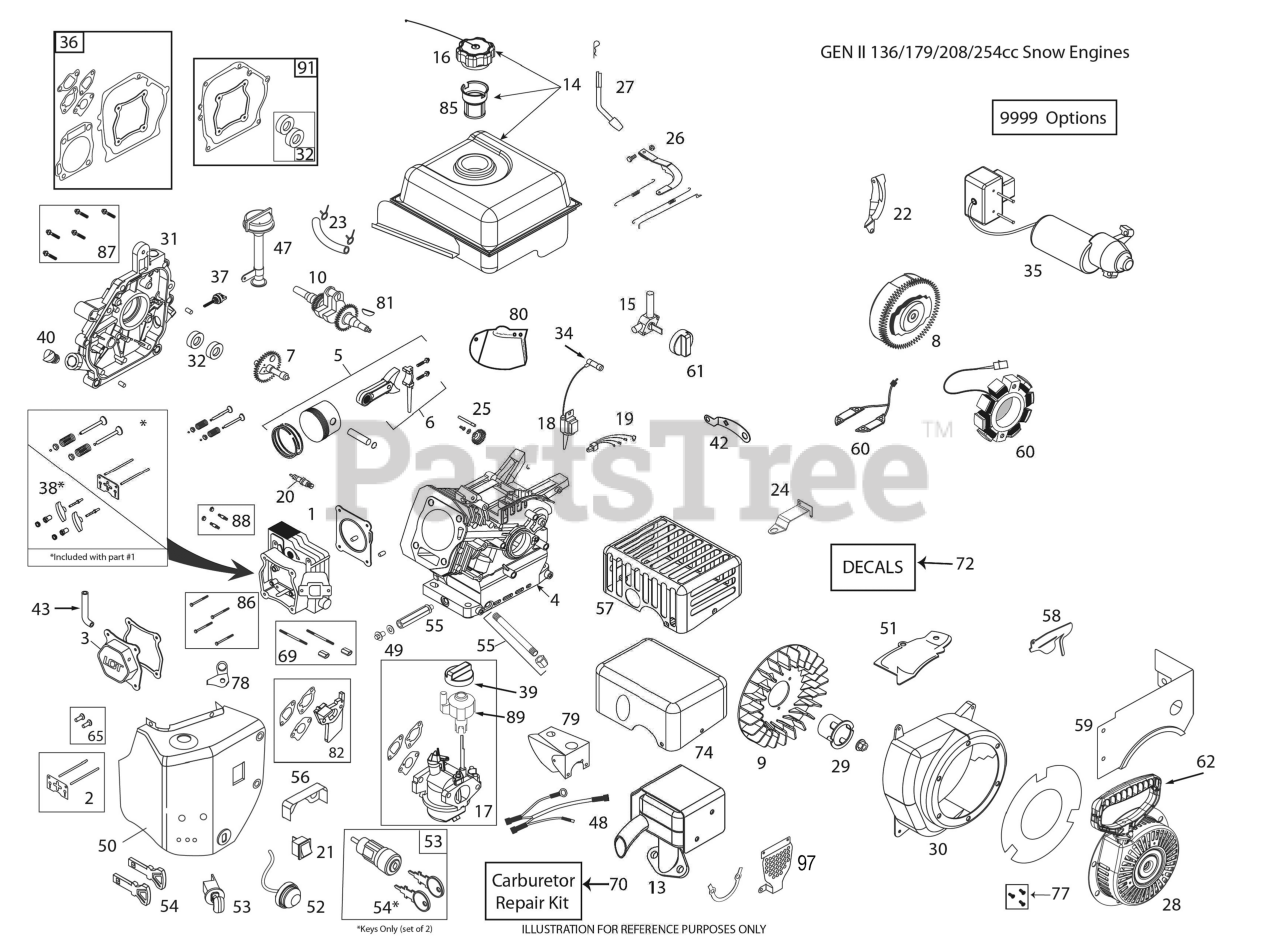

ST 324 - Husqvarna 24" Snow Blower ENGINE Parts Diagram

24" Snow Blower

ENGINE Parts Diagram

  • Title

49

Husqvarna 532435495

KIT.OIL.DRAIN.PLUG(SK2089911

$9.99

$

Usually ships in 3-10 days

0

2

Husqvarna 585771501

KIT.PUSH.ROD.&.PLATE.W/VC.GASK

$9.49

$

Usually ships in 3-10 days

0

56

000000000

Note: Part of ref 58, all one piece

$

$

Not available

48

Husqvarna 595012501

HARNESS WIRE. W/O OFF/ON SWITC

Note: For 97046930100, 97046880100

$21.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532420586

FLYWHEEL FAN 420586

$14.99

$

In Stock, only 2 left!

0

60

Husqvarna 532443893

208CC 60W ALTERNATOR

$89.99

$

Usually ships in 3-10 days

0

35

Husqvarna 595915501

STARTER 230C EL START.LCT SKSN
(Superseded to 583510401)

Note: For 97046930100

$455.99

$

Usually ships in 3-10 days

0

3

Husqvarna 585771601

COVER.VALVE.W/GASKET.254CC

$17.99

$

In Stock, only 2 left!

0

23

Husqvarna 532438014

KIT.FUEL.HOSE.208CC.SING/STAGE

$11.99

$

In Stock, only 2 left!

0

59

Husqvarna 585773501

SKIRT.FUEL.TANK.SNOW.254CC

Note: For 96193012301

$21.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532436671

STARTER.EL.230C.SNO.LCT.208CC.
(Superseded to 583510401)

Note: For 96193012601

$455.99

$

Usually ships in 3-10 days

0

1

Husqvarna 585771401

CYLINDER.HEAD.ASM.W/GASKET.254

$136.99

$

In Stock, only 1 left!

0

47

Husqvarna 581007201

TUBE ASSY HIGH OIL-FILL

$11.99

$

In Stock, only 1 left!

0

20

Husqvarna 532443898

PLUG.SPARK.PLAT.SKSN2404.1
(Superseded to 590844201)

$4.99

$

In Stock, Qty 9

0

24

Husqvarna 585772501

BRACKET.SPEED.CNTRL.FIXED.254C

$14.99

$

Usually ships in 3-10 days

0

55

Husqvarna 587154401

OIL PIPE DRAIN LCT 254

Note: For 96193012601, 96193012301

$37.99

$

In Stock, only 1 left!

0

18

Husqvarna 532443894

COIL.ING.CDI.HI TEMP.SKSNO416.
(Superseded to 580941301)

$74.99

$

In Stock, only 1 left!

0

91

Husqvarna 587994102

CRANKSHAFT GASKET KIT.LCT

$23.99

$

Usually ships in 3-10 days

0

14

Husqvarna 585772201

FUEL.TANK.SNOW.2.7L.BLACK.254C

$143.99

$

Usually ships in 3-10 days

0

87

Husqvarna 586326901

KIT.BOLT.CRANKCASE.COVER.6PC

$8.49

$

In Stock, only 3 left!

0

65

Husqvarna 581372801

TAPPET.KIT.LCT.208CC

$34.99

$

Usually ships in 3-10 days

0

26

Husqvarna 585772601

KIT.GOVERNOR.ARM.&.LINK.254CC

$22.99

$

Usually ships in 3-10 days

0

31

Husqvarna 585772701

CRANKCASE.CVR.PRESS.IN.HI-OIL.

$51.99

$

Usually ships in 3-10 days

0

36

Husqvarna 585772901

KIT.ENGINE.GASKET.254CC

$29.99

$

In Stock, only 2 left!

0

10

Husqvarna 585772001

CRANKSHAFT.KEYED(#18).SNOW.254

$143.99

$

Usually ships in 3-10 days

0

58

Husqvarna 599717001

SHIELDS
(Superseded to 585773401)

Note: Gov and Carb Shield (also repls 56,79,80)

$14.99

$

Usually ships in 3-10 days

0

9999

Husqvarna 597930001

BOLTS

$3.99

$

Usually ships in 3-10 days

0

51

Husqvarna 585773201

SHIELD.CYLINDER.COVER.254CC

$11.99

$

Usually ships in 3-10 days

0

74

Husqvarna 581768801

COVER.MUFFLER.HEAT.SHIELD.

Note: For 96193012601

$34.99

$

In Stock, only 2 left!

0

29

Husqvarna 532436968

STRTER.CUP(NON-SLOT)SKSN0601.2

$14.99

$

Usually ships in 3-10 days

0

43

Husqvarna 580353401

TUBE.BREATHER.LCT.208

$4.99

$

In Stock, only 3 left!

0

38

Husqvarna 585773001

KIT.ROCKER.ARM.W/GASKET.254CC

$17.99

$

Usually ships in 3-10 days

0

9999

Husqvarna 587154801

JET HIGH ALTITUDE LCT 5000 25

$7.99

$

Usually ships in 3-10 days

0

9999

Husqvarna 597671101

CLIPS

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 585771701

PISTON.&.ROD ASSEM.254CC

$119.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532429262

WIRE.HARNESS.SNOW
(Superseded to 532429284)

Note: For 96193012601, 96193012301

$35.99

$

In Stock, only 3 left!

0

39

Husqvarna 532429224

CHOKE.KNOW.SNOW(SKSN4500)

$9.99

$

In Stock, only 2 left!

0

80

000000000

Note: Part of ref 58, all one piece

$

$

Not available

9999

Husqvarna 599721601

O-RINGS

$5.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532436966

SPARK.PLUG.BOOT.SNW,SKSN4691.1

$21.99

$

In Stock, only 2 left!

0

32

Husqvarna 585772801

KIT.SEAL.OIL.2.PIECES.254CC

$17.99

$

In Stock, only 1 left!

0

13

Husqvarna 585772101

MUFFLER.ASSEM.GEN2.SNOW.254CC
(Superseded to 582582901)

$107.99

$

Usually ships in 3-10 days

0

35

Husqvarna 593110701

STARTER.ELECTRIC 120V
(Superseded to 532436466)

Note: For 97046880100

$376.99

$

Usually ships in 3-10 days

0

9999

Husqvarna 590920801

STARTER SCREW.STARTER SWITCH B

$7.49

$

Usually ships in 3-10 days

0

77

Husqvarna 532432688

BOLT.KIT.RECOIL.LCT.ALL.ENGINE

$4.99

$

In Stock, Qty 5

0

59

Husqvarna 587154501

FUEL TANK SKIRT SHIELD LCT 254

Note: For 97046930100, 97046880100, 96193012601

$22.99

$

In Stock, only 4 left!

0

88

Husqvarna 586326801

STUD.MUFFLER.KIT.LCT

$2.49

$

In Stock, only 4 left!

0

57

Husqvarna 532436672

SHIELD.MUFFLER.CE.COMPLIANT

Note: For 97046930100, 97046880100, 96193012601

$68.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532436466

ELEC.START.GEN2.SKSN0451.1

Note: For 96193012301

$376.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532436967

RECOIL.STRT.ROUND(BLK) SNOW

$77.99

$

Usually ships in 3-10 days

0

8

Husqvarna 585771901

FLYWHEEL.ELEC.STRT.(8.MAGNETS)

$179.99

$

Usually ships in 3-10 days

0

79

000000000

Note: Part of ref 58, all one piece

$

$

Not available

21

Husqvarna 532424957

SWITCH.ON/OFF(SKSN-0403)

Note: For 96193012601, 96193012301

$43.99

$

In Stock, only 3 left!

0

55

Husqvarna 532432686

EXTENDED OIL DRAIN TUBE

Note: For 97046930100, 97046880100

$27.99

$

In Stock, only 2 left!

0

25

Husqvarna 532429646

GOVENOR.GEARS ASM(SK2082900)

$9.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532443059

KEY SET(2 KEYS) SKSN0407.1

$15.99

$

Usually ships in 3-10 days

0

81

Husqvarna 585297201

KEYS.FLYWHEEL.208/414CC.5PACK

$8.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532420602

KIT.GOVERNOR.CRANK(SK208-3100)
(Superseded to 581768701)

$9.99

$

In Stock, only 1 left!

0

61

Husqvarna 532432752

FUEL KNOB-SNOW

$9.99

$

In Stock, Qty 15

0

40

Husqvarna 532429598

NON REMOVABLE PLUG

$17.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532435647

KIT.ENGINE.DECAL.208CC.LCT.SK1

Note: For 97046930100, 97046880100, 96193012301

$

$

Not available

17

Husqvarna 587154101

CARBURETTOR LCT 254 W/IDLEDOWN

$113.99

$

In Stock, only 3 left!

0

50

Husqvarna 599716901

HOUSINGS

$83.99

$

Usually ships in 3-10 days

0

74

Husqvarna 587821101

MUFFLER GUARD.EUR./LCT.SKSN220

Note: For 97046930100, 97046880100, 96193012301

$39.99

$

Usually ships in 3-10 days

0

86

Husqvarna 586327301

KIT.BOLT.CYLINDER.HEAD.(4PC)

$7.49

$

Usually ships in 3-10 days

0

19

000000000

Note: For 96193012601, 96193012301

$

$

Not available

72

000000000

Note: For 96193012601

$

$

Not available

70

Husqvarna 580353601

CARB.REPAIR.KIT.LCT.SK9900.2
(Superseded to 580353602)

$59.99

$

In Stock, only 1 left!

0

22

Husqvarna 585772401

SHIELD.FLYWHEEL.ELEC.STRT.208C

$4.99

$

Usually ships in 3-10 days

0

82

Husqvarna 585020503

SPACER.CARBURETOR.208CC.LCT

$5.99

$

In Stock, only 2 left!

0

7

Husqvarna 585771801

CAMSHAFT.MCR.W/GASKET.254CC

$45.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532424951

CARB.STUDS & COUPLING KIT.SNOW

$9.99

$

In Stock, only 2 left!

0

16

Husqvarna 532424942

FUEL CAP OVERSIZED CLICK STYLE

$11.99

$

In Stock, only 2 left!

0

85

Husqvarna 586325601

STRAINER.FUEL.TANK.LCT.208CC

$4.99

$

In Stock, Qty 12

0

15

Husqvarna 532429234

FUEL.PETCOCK.SNOW(SKSN4900)

$20.99

$

Usually ships in 3-10 days

0

30

Husqvarna 587154201

BLOWER HSG.LCT 254 GLOSS BLK S

$59.99

$

Usually ships in 3-10 days

0

97

Husqvarna 590640101

GUARD.MUFFLER.MANIFOLD.LCT

$17.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532424949

PRIMER.BULB.WITH HOSE (SNOW)
(Superseded to 595079601)

$

$

Not available

89

Husqvarna 587124801

KNOB LCT.SKSN5325.1 SPEED

$9.99

$

In Stock, only 4 left!

0

57

000000000

Note: For 96193012301

$

$

Not available

53

Husqvarna 532424954

SWITH.KEY.ASSEM.SNOW.SINGLE.ST

$23.99

$

In Stock, only 1 left!

0

62

Husqvarna 532443899

HANDLE.RECOIL.DELUXE.LCT

$21.99

$

In Stock, only 2 left!

0

9999

Husqvarna 579806401

KIT.BOLT.LCT.SK9990.1

$3.99

$

Usually ships in 3-10 days

0
