ST 324 P (961910082-01) - Husqvarna 24" Snow Blower (2015-07) CONTROL PANEL & DISCHARGE CHUTE 11 Parts Diagram

24" Snow Blower

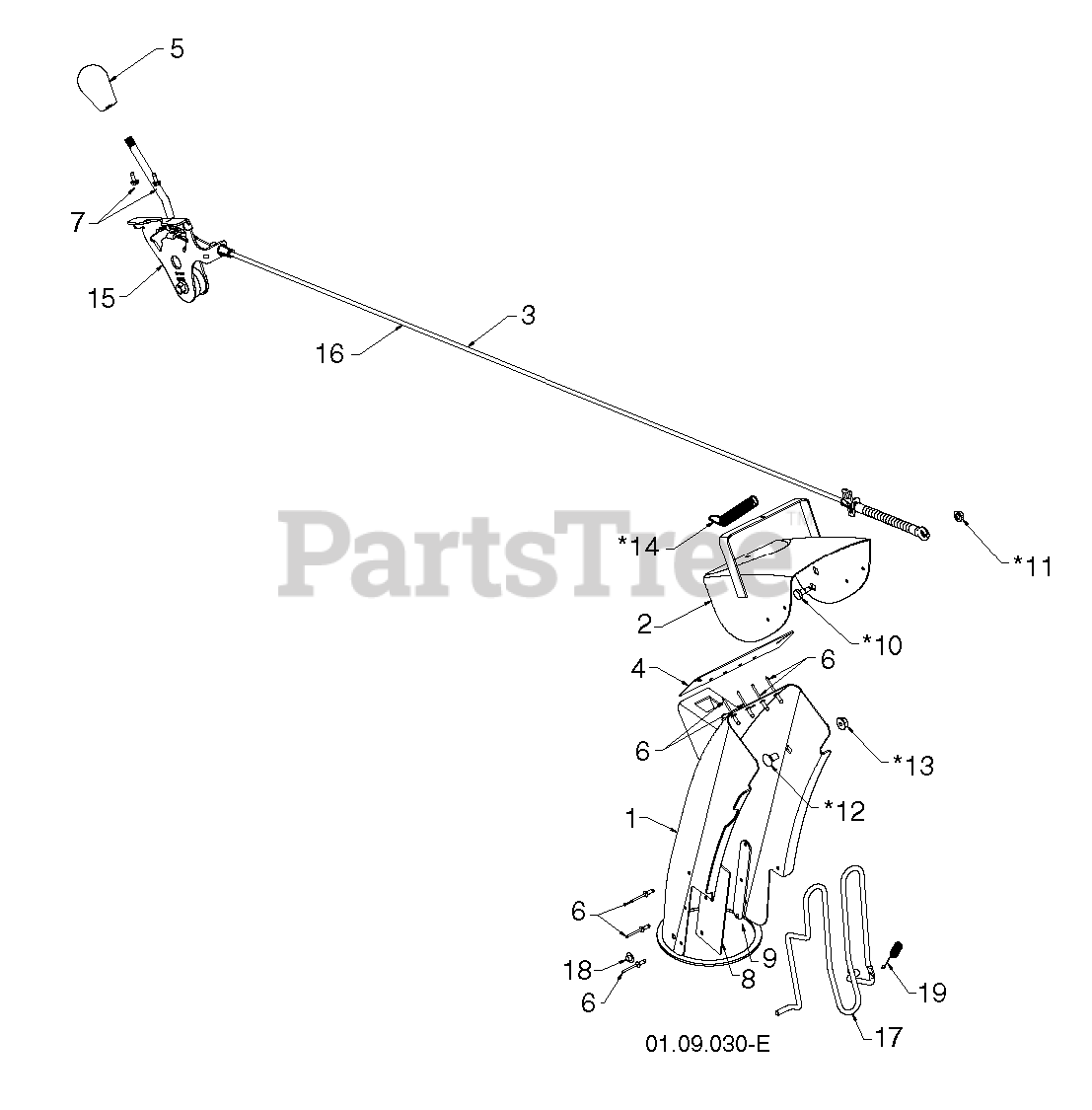

CONTROL PANEL & DISCHARGE CHUTE 11 Parts Diagram

  • Title

16

Husqvarna 587030901

RP CABLE.DEFLECTOR.BOWDEN

Note: SERVICE PART

$53.99

$

In Stock, only 2 left!

0

15

Husqvarna 532420679

RP CNTRL.HEAD.ASSEM.DEFLECTOR
(Superseded to 587030801)

Note: SERVICE PART

$71.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532059349

NUT
(Superseded to 582935201)

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 588077802

ASM.CHUTE/DEFLECTOR.668

Note: INCLUDES KEY NOS. 1,2,4,6,8,9

$131.99

$

Usually ships in 3-10 days

0

9

000000000

Note: STRAP

$

$

Not available

4

000000000

$

$

Not available

17

Husqvarna 532435582

ROD.GUARD.CHUTE (2 2)
(Superseded to 593622201)

$14.99

$

Usually ships in 3-10 days

0

2

000000000

Note: DEFLECTOR

$

$

Not available

*11

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$3.99

$

In Stock, only 2 left!

0

*12

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

$4.99

$

In Stock, only 2 left!

0

5

Husqvarna 580673201

KNOB.OVERMOLD.DS.HUSQVARNA/BLK

$27.99

$

Usually ships in 3-10 days

0

*13

Husqvarna 532751153

NUT.LOCK.5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, Qty 15

0

7

Husqvarna 817541008

SCREW

$4.99

$

Usually ships in 3-10 days

0

*14

Husqvarna 532184505

SPRING.DEFLECTOR.REM.CHUTE

$8.49

$

In Stock, only 2 left!

0

6

000000000

Note: POP RIVET

$

$

Not available

*10

Husqvarna 532179829

BOLT, SHOULDER

$4.99

$

In Stock, Qty 7

0

3

Husqvarna 587030801

CONTROL.ASM.DEFLEC.BLK.BOWDEN

$71.99

$

Usually ships in 3-10 days

0

8

000000000

Note: SHIELD

$

$

Not available

19

Husqvarna 532435616

SPRING.CHUTE.GUARD

$3.99

$

Usually ships in 3-10 days

0
