ST 324 P - Husqvarna 24" Snow Blower CONTROL PANEL & DISCHARGE CHUTE Parts Diagram

24" Snow Blower

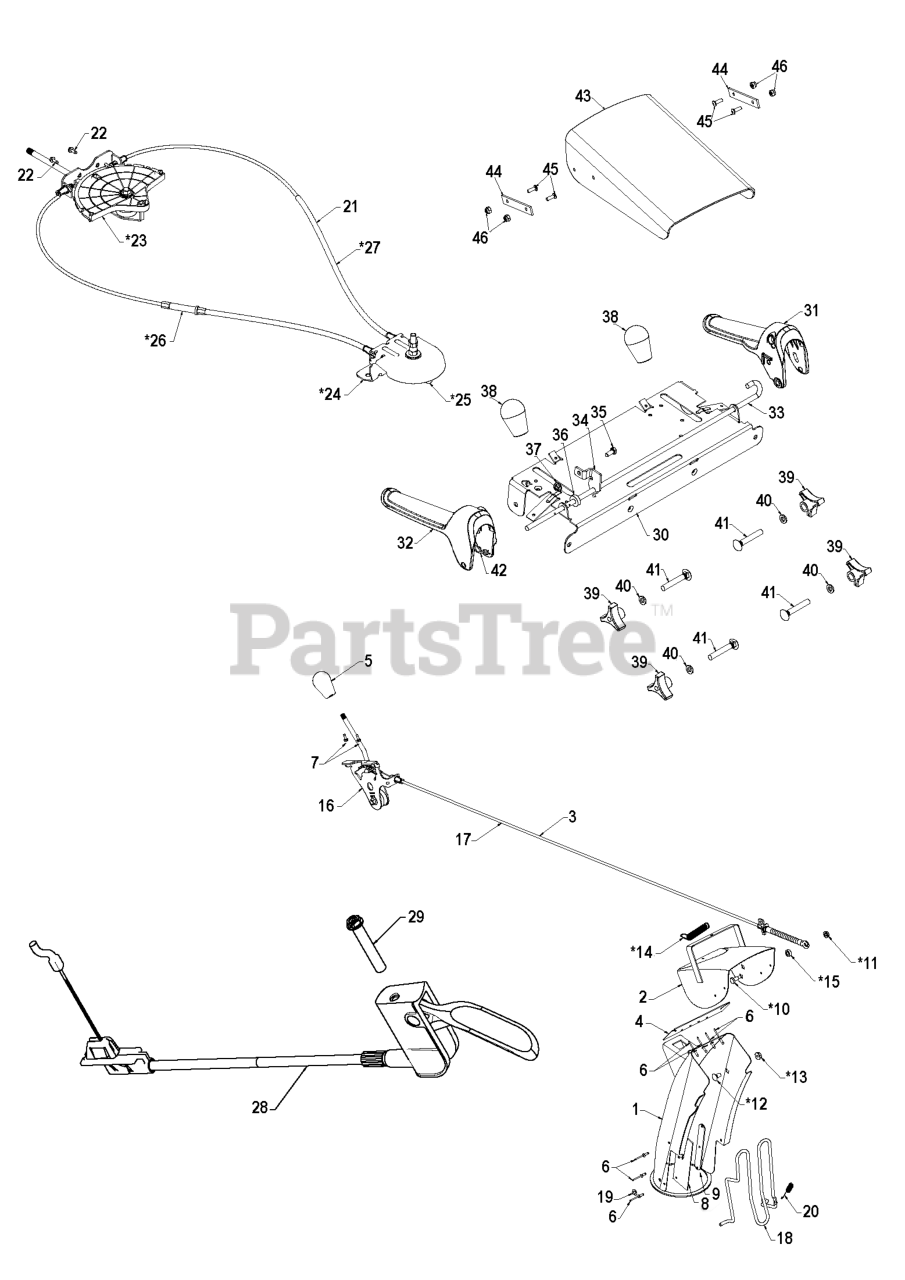

CONTROL PANEL & DISCHARGE CHUTE Parts Diagram

  • Title

16

Husqvarna 532420679

RP CNTRL.HEAD.ASSEM.DEFLECTOR
(Superseded to 587030801)

Note: SERVICE PART

$68.99

$

Usually ships in 3-10 days

0

*24

Husqvarna 585199201

BRACKET.ROTATOR.HEAD

$20.99

$

Usually ships in 3-10 days

0

*25

Husqvarna 532420675

SNOW.PIVOT.PULLY

$68.99

$

Usually ships in 3-10 days

0

*15

Husqvarna 501417401

WASHER.NYLON.326 X.625 X.205

$3.49

$

In Stock, only 3 left!

0

6

000000000

Note: POP RIVET

$

$

Not available

8

000000000

Note: SHIELD

$

$

Not available

32

Husqvarna 581779701

LEVER.CONTROL.RH.PL.BLACK

$22.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532423247

DEFLECTOR SHIELD STRAP
(Superseded to 532435831)

$5.99

$

Usually ships in 3-10 days

0

1

Husqvarna 588077802

ASM.CHUTE/DEFLECTOR.668

Note: INCLUDES KEY NOS. 1,2,4,6,8,9

$113.99

$

In Stock, only 2 left!

0

37

Husqvarna 532088349

NUT

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532435582

ROD.GUARD.CHUTE (2 2)

$14.99

$

Usually ships in 3-10 days

0

31

Husqvarna 581779801

LEVER.CONTROL.LH.PL.BLACK

$

$

Not available

3

Husqvarna 587030801

CONTROL.ASM.DEFLEC.BLK.BOWDEN

$68.99

$

Usually ships in 3-10 days

0

*23

Husqvarna 532420678

CHUTE.ROT.HEAD.SERVICE

$227.99

$

In Stock, only 1 left!

0

29

Husqvarna 874041024

SCREW

$3.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532421613

SPACER.CONTROL.LEVER

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 586118001

SCREW.MACHINE.8-32 X 1/2-BLK

$3.49

$

In Stock, only 4 left!

0

5

Husqvarna 580673201

KNOB.OVERMOLD.DS.HUSQVARNA/BLK

$26.99

$

In Stock, only 1 left!

0

20

Husqvarna 532435616

SPRING.CHUTE.GUARD

$3.49

$

Usually ships in 3-10 days

0

4

000000000

$

$

Not available

*27

Husqvarna 532428310

SNOW.CBL.ASM.SERVICE(428272)

$31.99

$

In Stock, only 4 left!

0

34

Husqvarna 585004703

BRACKET.ARM.IMPELLER.ROD.YZ

$

$

Not available

35

Husqvarna 874780410

BOLT
(Superseded to 596582501)

$3.49

$

In Stock, only 1 left!

0

21

Husqvarna 532428272

LEVER/CABLE.ASM.ROTATOR

$159.99

$

In Stock, only 4 left!

0

46

Husqvarna 586118101

NUT.HEX.NYLOCK

$3.49

$

In Stock, only 3 left!

0

*11

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$3.99

$

In Stock, Qty 6

0

*13

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$

$

Not available

28

Husqvarna 532425799

CABLE.ASM.HYDROII.BLK/BLK

$28.99

$

Usually ships in 3-10 days

0

41

Husqvarna 872120618

BOLT 3/8-16 X 2-1/4

$6.99

$

In Stock, only 4 left!

0

*26

Husqvarna 532428273

SNOW.CBL.ASM.ADJ.SERVICE(74)

$26.99

$

In Stock, only 2 left!

0

33

Husqvarna 584809001

BAIL.CONTROL.INTERLOCK.SNOW

$13.99

$

Usually ships in 3-10 days

0

2

000000000

Note: DEFLECTOR

$

$

Not available

42

Husqvarna 532169675

SPRING RETAINER

$5.99

$

In Stock, only 2 left!

0

43

Husqvarna 532421138

SHIELD.DEFLECTOR.BLACK.SNOW

$34.99

$

In Stock, only 1 left!

0

22

Husqvarna 817541008

SCREW

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 587133101

RP CABLE.DEFLECTOR.CONTRL.BOWD
(Superseded to 587030801)

Note: SERVICE PART

$68.99

$

Usually ships in 3-10 days

0

*12

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

$4.99

$

In Stock, Qty 6

0

39

Husqvarna 532178899

KNOB.HANDLE.3/8.TRI-POINT.BLAC

$5.99

$

In Stock, Qty 10

0

30

Husqvarna 585198802

PANEL.CONTROL.SNOW.BLACK
(Superseded to 532415539)

$

$

Not available

40

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

38

Husqvarna 580673201

KNOB.OVERMOLD.DS.HUSQVARNA/BLK

$26.99

$

In Stock, only 1 left!

0

9

000000000

Note: STRAP

$

$

Not available

19

Husqvarna 532059349

NUT
(Superseded to 582935201)

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 817541008

SCREW

$4.99

$

Usually ships in 3-10 days

0

*10

Husqvarna 501417301

BOLT.CARR.W.3125 SHLDR..25-20

$3.49

$

In Stock, Qty 5

0

*14

Husqvarna 532184505

SPRING.DEFLECTOR.REM.CHUTE

$7.99

$

In Stock, Qty 12

0
