ST 327 T (961910084-02) - Husqvarna 27" Snow Blower (2016-04) CONTROL PANEL DISCHARGE CHUTE Parts Diagram

27" Snow Blower

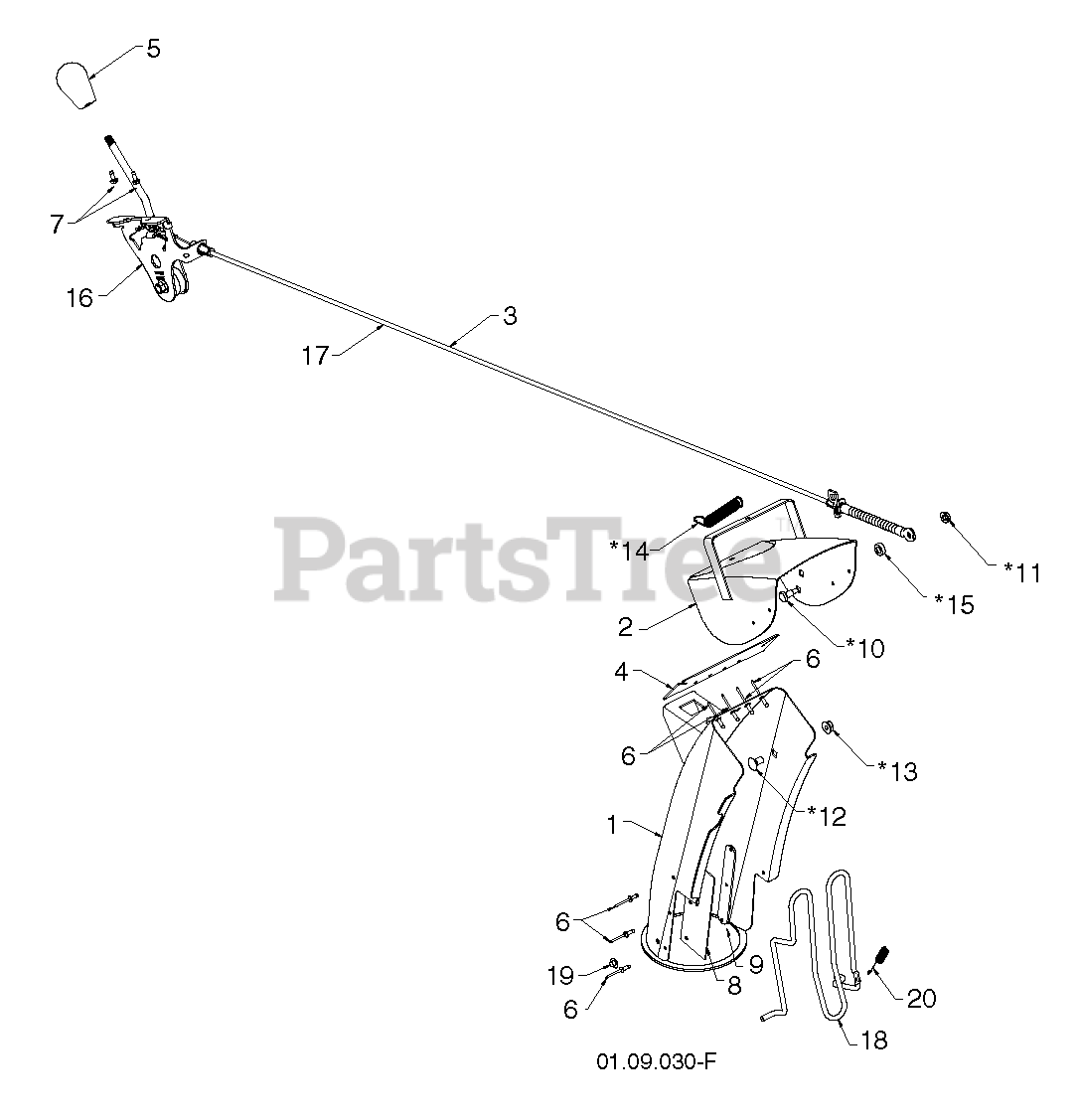

CONTROL PANEL DISCHARGE CHUTE Parts Diagram

  • Title

1

Husqvarna 588077802

ASM.CHUTE/DEFLECTOR.668

$120.99

$

Usually ships in 3-10 days

0

2

000000000

Note: DEFLECTOR

$

$

Not available

3

Husqvarna 587133101

RP CABLE.DEFLECTOR.CONTRL.BOWD
(Superseded to 587030801)

$80.99

$

In Stock, Qty 6

0

4

000000000

Note: SEAL

$

$

Not available

5

Husqvarna 580673201

KNOB.OVERMOLD.DS.HUSQVARNA/BLK

$12.99

$

Usually ships in 3-10 days

0

6

000000000

Note: POP RIVET

$

$

Not available

7

Husqvarna 817541008

SCREW

$4.99

$

Usually ships in 3-10 days

0

8

000000000

Note: SHIELD

$

$

Not available

9

000000000

Note: STRAP

$

$

Not available

10

Husqvarna 501417301

BOLT.CARR.W.3125 SHLDR..25-20

$4.99

$

In Stock, Qty 10

0

11

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 8

0

12

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532184505

SPRING.DEFLECTOR.REM.CHUTE

$7.49

$

In Stock, Qty 20+

0

15

Husqvarna 501417401

WASHER.NYLON.326 X.625 X.205

$4.99

$

In Stock, Qty 7

0

16

Husqvarna 532420679

RP CNTRL.HEAD.ASSEM.DEFLECTOR
(Superseded to 587030801)

Note: SERVICE PART

$80.99

$

In Stock, Qty 6

0

17

Husqvarna 587133101

RP CABLE.DEFLECTOR.CONTRL.BOWD
(Superseded to 587030801)

Note: SERVICE PART

$80.99

$

In Stock, Qty 6

0

18

Husqvarna 532435582

ROD.GUARD.CHUTE (2 2)

$21.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532059349

NUT
(Superseded to 582935201)

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532435616

SPRING.CHUTE.GUARD

$4.99

$

Usually ships in 3-10 days

0
