ST 330 (961930128-00) - Husqvarna 30" Snow Blower (2018-03) CONTROL PANEL & DISCHARGE CHUTE 5 Parts Diagram

30" Snow Blower

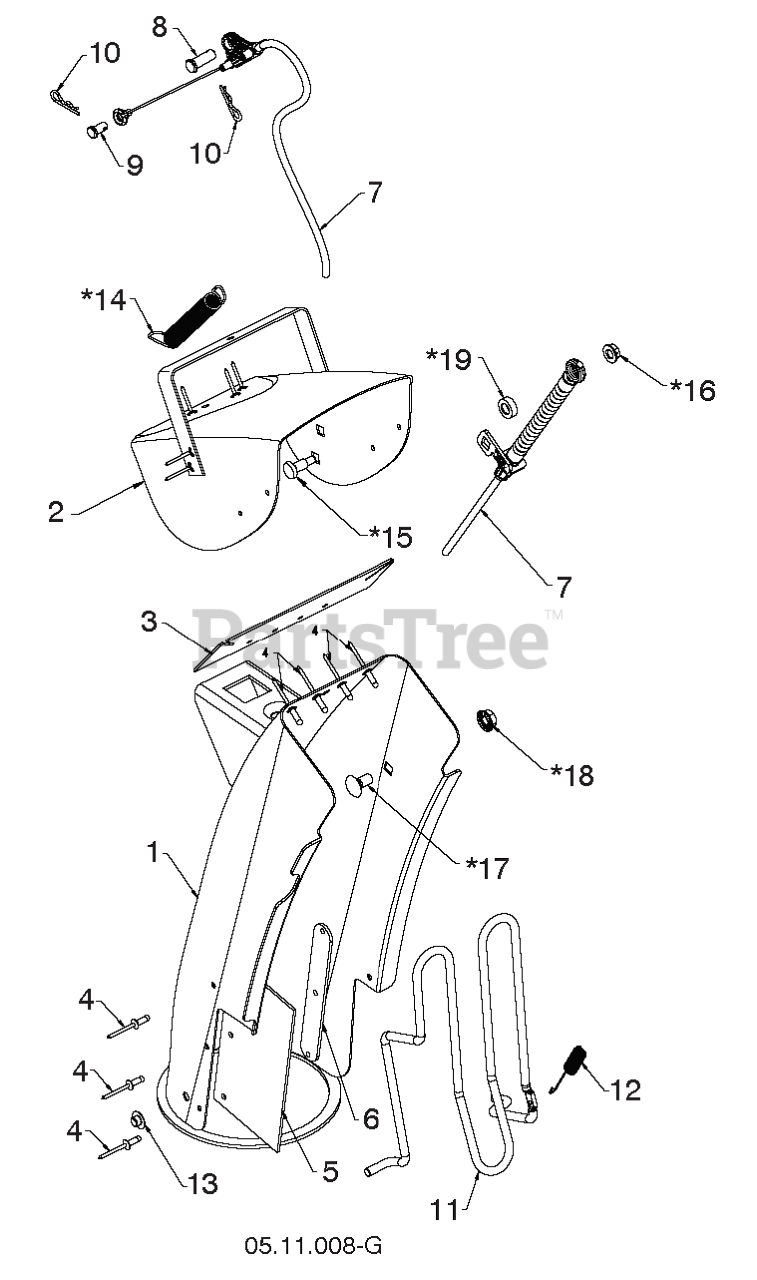

CONTROL PANEL & DISCHARGE CHUTE 5 Parts Diagram

  • Title

9

Husqvarna 585808301

PIN CLEVIS .25 X .31

$4.99

$

In Stock, only 4 left!

0

*18

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$

$

Not available

13

Husqvarna 532059349

NUT
(Superseded to 582935201)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 590587001

CABLE.CONTROL.CHUTE.DEFLEC
(Superseded to 590587002)

$27.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532420325

SEAL.DEFLECTOR

Note: SEAL

$7.49

$

In Stock, only 1 left!

0

4

Husqvarna 532128415

RIVET BLIND

Note: POP RIVET

$3.49

$

Usually ships in 3-10 days

0

2

000000000

Note: DEFLECTOR

$

$

Not available

8

Husqvarna 581329401

PIN CLEVIS 5/16X.875

$3.99

$

In Stock, Qty 5

0

12

Husqvarna 532435616

SPRING.CHUTE.GUARD

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532430324

SHIELD.SNOW.CHUTE

Note: SHIELD

$23.99

$

In Stock, only 1 left!

0

11

Husqvarna 532435582

ROD.GUARD.CHUTE (2 2)
(Superseded to 593622201)

$14.99

$

Usually ships in 3-10 days

0

*15

Husqvarna 501417301

BOLT.CARR.W.3125 SHLDR..25-20

$3.99

$

In Stock, only 1 left!

0

*17

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

$4.99

$

In Stock, only 2 left!

0

6

Husqvarna 532435776

RP STRAP.SHEILD.RETAINER
(Superseded to 532419822)

Note: RETAINER

$3.99

$

Usually ships in 3-10 days

0

*14

Husqvarna 532184505

SPRING.DEFLECTOR.REM.CHUTE

$8.49

$

In Stock, only 2 left!

0

1

Husqvarna 588077802

ASM.CHUTE/DEFLECTOR.668

Note: Includes Ref# 1-6

$131.99

$

Usually ships in 3-10 days

0

*19

Husqvarna 501417401

WASHER.NYLON.326 X.625 X.205

$3.99

$

In Stock, only 2 left!

0

10

Husqvarna 532423303

HAIRPIN.SOFT.ZINC.059X1.125
(Superseded to 583404901)

$3.49

$

Usually ships in 3-10 days

0

*16

Husqvarna 585691401

NUT.HEX.LRG.FLANGE.1/4-20.LOCK

$3.49

$

In Stock, only 2 left!

0
