ST 330 P (961910085-01) - Husqvarna 30" Snow Blower (2015-15) CONTROL PANEL DISCHARGE CHUTE Parts Diagram

30" Snow Blower

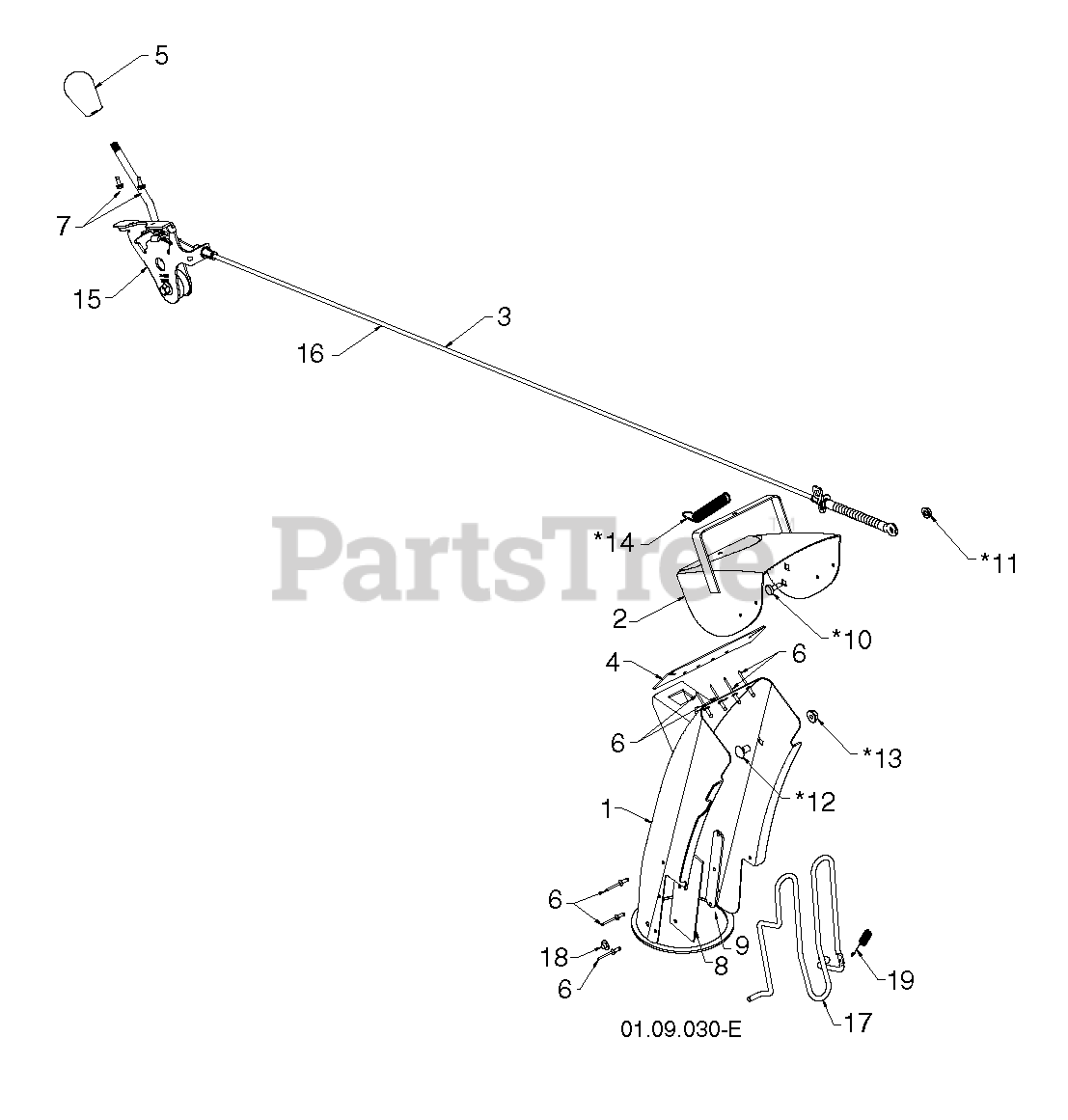

CONTROL PANEL DISCHARGE CHUTE Parts Diagram

  • Title

1

Husqvarna 588077802

ASM.CHUTE/DEFLECTOR.668

Note: INCLUDES KEY NUMBERS 1 2 4 6 8 9

$113.99

$

In Stock, only 2 left!

0

2

000000000

Note: DEFLECTOR

$

$

Not available

3

Husqvarna 587030801

CONTROL.ASM.DEFLEC.BLK.BOWDEN

$68.99

$

Usually ships in 3-10 days

0

4

000000000

Note: SEAL

$

$

Not available

5

Husqvarna 580673201

KNOB.OVERMOLD.DS.HUSQVARNA/BLK

$26.99

$

In Stock, only 1 left!

0

6

000000000

$

$

Not available

7

Husqvarna 817541008

SCREW

$4.99

$

Usually ships in 3-10 days

0

8

000000000

Note: SHIELD

$

$

Not available

9

000000000

Note: STRAP

$

$

Not available

10

Husqvarna 532179829

BOLT, SHOULDER

Note: ITEM PROVIDED IN THE BOP

$4.99

$

In Stock, Qty 10

0

11

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

Note: ITEM PROVIDED IN THE BOP

$3.99

$

In Stock, Qty 6

0

12

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

Note: ITEM PROVIDED IN THE BOP

$4.99

$

In Stock, Qty 6

0

13

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

Note: ITEM PROVIDED IN THE BOP

$

$

Not available

14

Husqvarna 532184505

SPRING.DEFLECTOR.REM.CHUTE

Note: ITEM PROVIDED IN THE BOP

$7.99

$

In Stock, Qty 12

0

15

Husqvarna 532420679

RP CNTRL.HEAD.ASSEM.DEFLECTOR
(Superseded to 587030801)

Note: SERVICE PART

$68.99

$

Usually ships in 3-10 days

0

16

Husqvarna 587133101

RP CABLE.DEFLECTOR.CONTRL.BOWD
(Superseded to 587030801)

Note: SERVICE PART

$68.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532435582

ROD.GUARD.CHUTE (2 2)

$14.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532059349

NUT
(Superseded to 582935201)

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532435616

SPRING.CHUTE.GUARD

$3.49

$

Usually ships in 3-10 days

0
