ST 330 P (961910085-03) - Husqvarna 30" Snow Blower (2017-05) CONTROL PANEL & DISCHARGE CHUTE 5 Parts Diagram

30" Snow Blower

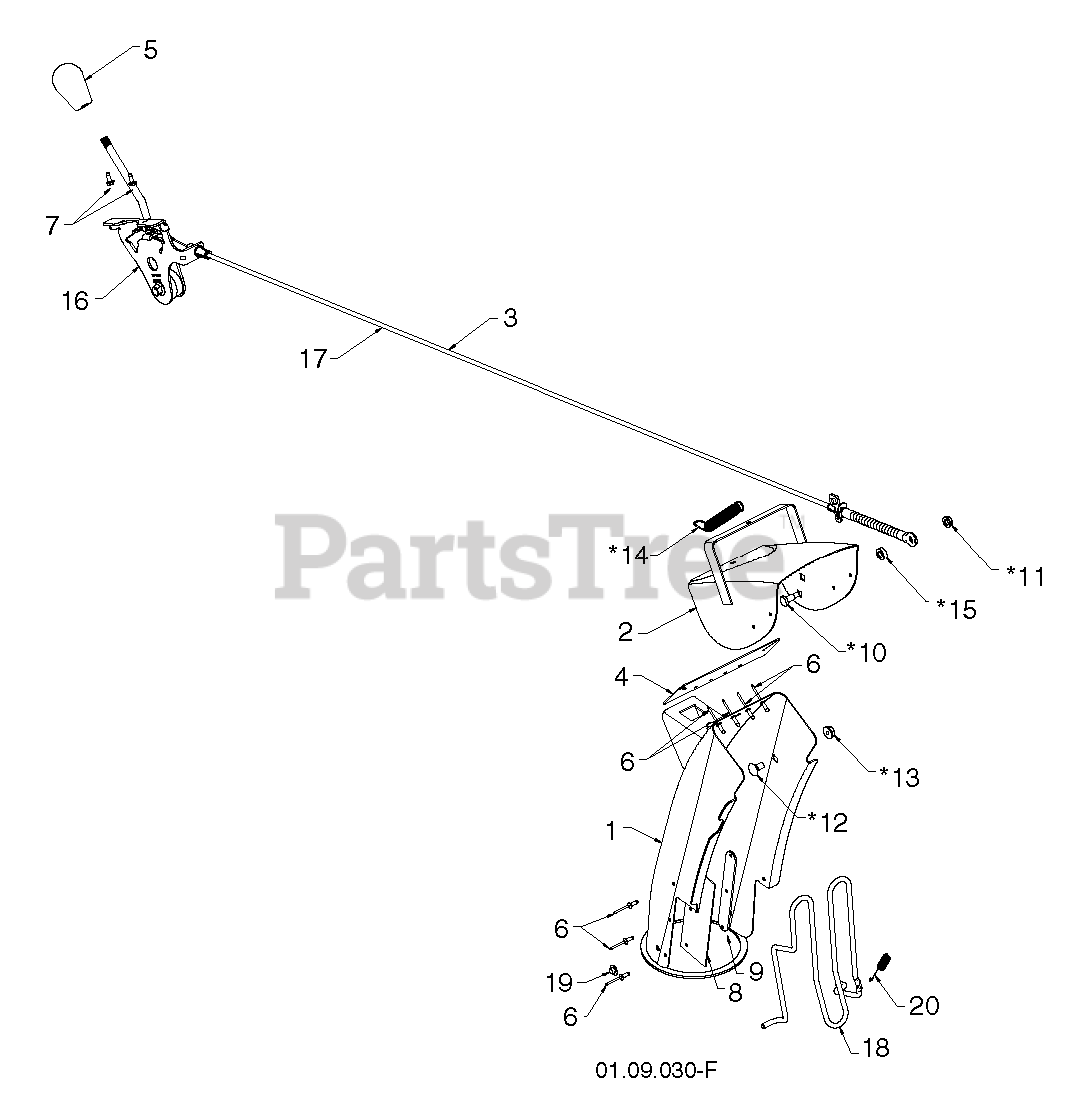

CONTROL PANEL & DISCHARGE CHUTE 5 Parts Diagram

  • Title

18

Husqvarna 532435582

ROD.GUARD.CHUTE (2 2)
(Superseded to 593622201)

$14.99

$

Usually ships in 3-10 days

0

6

000000000

$

$

Not available

*14

Husqvarna 532184505

SPRING.DEFLECTOR.REM.CHUTE

Note: * ITEM PROVIDED IN THE BOP

$8.49

$

In Stock, only 2 left!

0

*10

Husqvarna 501417301

BOLT.CARR.W.3125 SHLDR..25-20

Note: * ITEM PROVIDED IN THE BOP

$3.99

$

In Stock, only 1 left!

0

7

Husqvarna 817541008

SCREW

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 587133101

RP CABLE.DEFLECTOR.CONTRL.BOWD
(Superseded to 587030801)

Note: SERVICE PART

$71.99

$

Usually ships in 3-10 days

0

*11

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

Note: * ITEM PROVIDED IN THE BOP

$3.99

$

In Stock, only 2 left!

0

3

Husqvarna 587030801

CONTROL.ASM.DEFLEC.BLK.BOWDEN

$71.99

$

Usually ships in 3-10 days

0

2

000000000

Note: DEFLECTOR

$

$

Not available

20

Husqvarna 532435616

SPRING.CHUTE.GUARD

$3.99

$

Usually ships in 3-10 days

0

*13

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

Note: * ITEM PROVIDED IN THE BOP

$

$

Not available

1

Husqvarna 588077802

ASM.CHUTE/DEFLECTOR.668

Note: INCLUDES KEY NUMBERS 1,2,4,6,8,9

$131.99

$

Usually ships in 3-10 days

0

8

000000000

Note: SHIELD

$

$

Not available

16

Husqvarna 532420679

RP CNTRL.HEAD.ASSEM.DEFLECTOR
(Superseded to 587030801)

Note: SERVICE PART

$71.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532059349

NUT
(Superseded to 582935201)

$3.99

$

Usually ships in 3-10 days

0

*12

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

Note: * ITEM PROVIDED IN THE BOP

$4.99

$

In Stock, only 2 left!

0

4

000000000

Note: SEAL

$

$

Not available

*15

Husqvarna 501417401

WASHER.NYLON.326 X.625 X.205

$3.99

$

In Stock, only 2 left!

0

9

000000000

Note: STRAP

$

$

Not available

5

Husqvarna 580673201

KNOB.OVERMOLD.DS.HUSQVARNA/BLK

$27.99

$

Usually ships in 3-10 days

0
