ST 330 P (961930094-03) - Husqvarna 30" Snow Blower (2016-03) "CHASSIS, ENGINE & PULLEYS A" Parts Diagram

30" Snow Blower

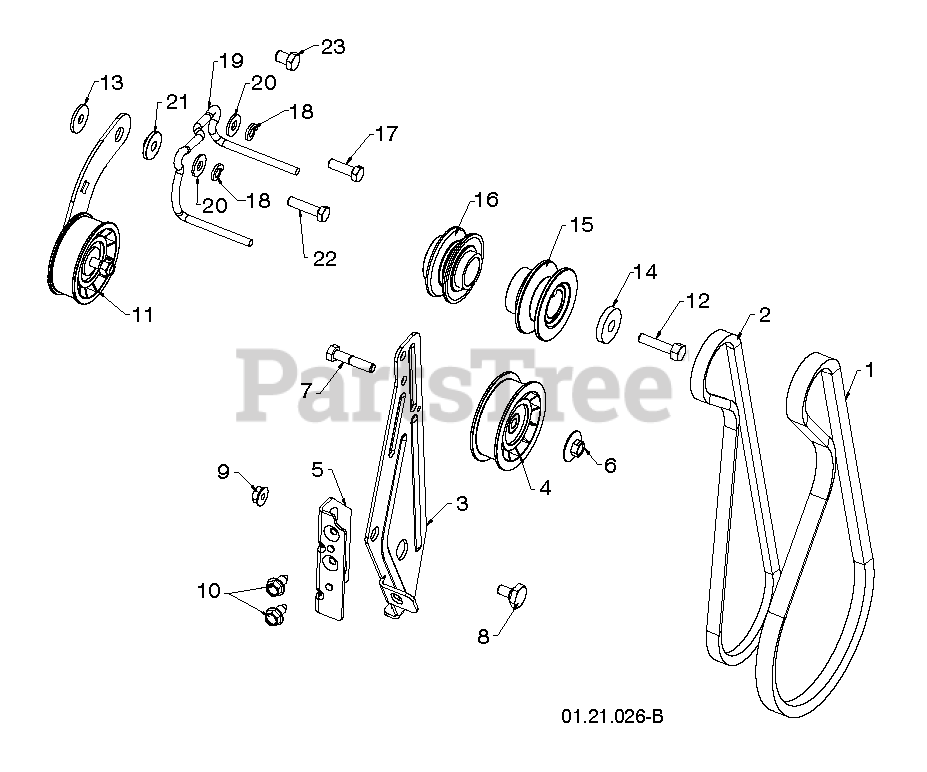

"CHASSIS, ENGINE & PULLEYS A" Parts Diagram

  • Title

19

Husqvarna 585540501

GUIDE.BELT.CHAIN.LS.SNOW

$13.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532155415

WASHER.20X8.5

$3.49

$

In Stock, only 2 left!

0

11

Husqvarna 585238401

ARM.ASM.TRACTION.IDLER.

$35.99

$

In Stock, only 2 left!

0

12

Husqvarna 532179617

BOLT.BLADE

$5.99

$

Usually ships in 3-10 days

0

21

Husqvarna 587343701

BUSHING.BRAKE.ARM

$7.49

$

In Stock, only 3 left!

0

1

Husqvarna 532419888

V-BELT.IMPELLER

$53.99

$

In Stock, only 2 left!

0

8

Husqvarna 532424297

BOLT.SHOULDER.1/2X12

$

$

Not available

13

Husqvarna 532059289

STEEL WASHER

$4.99

$

In Stock, Qty 5

0

5

Husqvarna 585284901

BRACKET.IDLER.PIVOT.ZINC
(Superseded to 532423990)

$

$

Not available

22

Husqvarna 874610520

CAPSCREW.HEXHD.5/16X1.25.

$9.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532180523

PULLEY.W/SPACER.2.75
(Superseded to 594095301)

$14.99

$

In Stock, Qty 5

0

3

Husqvarna 584232402

ARM.IDLER BRAKE.CLEAR.ZINC

$

$

Not available

7

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$1.99

$

Usually ships in 3-10 days

0

15

Husqvarna 586050801

PULLEY IMPELLER.ASM.2.60_.75 B

$33.99

$

In Stock, only 4 left!

0

14

Husqvarna 819132005

WASHER.400X1.25X5.

$9.99

$

In Stock, Qty 8

0

6

Husqvarna 532426589

NUT.FLANGE.HEX.5/16X18.BLACK
(Superseded to 585802801)

$5.99

$

In Stock, Qty 15

0

16

Husqvarna 586051101

PULLEY TRACTION.ASM.2.60_.75 B

$27.99

$

In Stock, only 4 left!

0

17

Husqvarna 874610516

SCREW

$4.99

$

In Stock, only 4 left!

0

23

Husqvarna 874760608

SCREW.3/8-16 X .750 (2 2)

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$5.99

$

In Stock, Qty 8

0

2

Husqvarna 532413592

BELT.V.TRACTION.35.26

$35.99

$

In Stock, only 2 left!

0

9

Husqvarna 532751153

NUT.LOCK.5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, Qty 15

0
