ST 330 P - Husqvarna 30" Snow Blower "CHASSIS, ENGINE & PULLEYS" Parts Diagram

30" Snow Blower

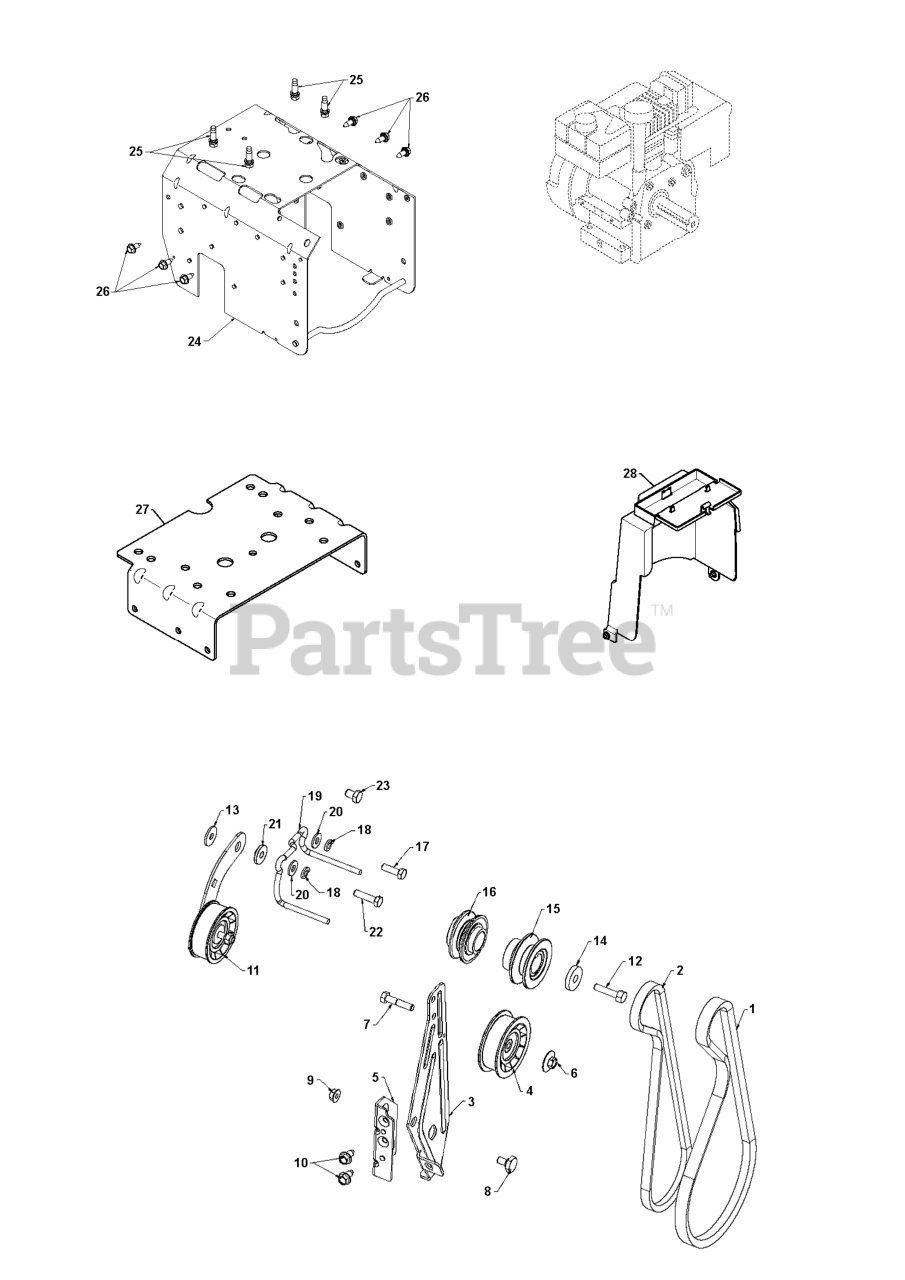

"CHASSIS, ENGINE & PULLEYS" Parts Diagram

  • Title

22

Husqvarna 874610520

CAPSCREW.HEXHD.5/16X1.25.

$9.49

$

Usually ships in 3-10 days

0

11

Husqvarna 585238401

ARM.ASM.TRACTION.IDLER.

$34.99

$

Usually ships in 3-10 days

0

Husqvarna 580426104

ENGINE.LCT.291CC.SNOW
(Superseded to 580426107)

Note: For 96191008503, LCT PW2HK181000178Y

$1367.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532180523

PULLEY.W/SPACER.2.75
(Superseded to 594095301)

$13.99

$

In Stock, only 1 left!

0

3

Husqvarna 584232402

ARM.IDLER BRAKE.CLEAR.ZINC

$

$

Not available

24

Husqvarna 586507803

FRAME.WELD.HYDRO.668.PNT

$

$

Not available

16

Husqvarna 586051101

PULLEY TRACTION.ASM.2.60_.75 B

$26.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, only 2 left!

0

15

Husqvarna 586050801

PULLEY IMPELLER.ASM.2.60_.75 B

$31.99

$

Usually ships in 3-10 days

0

14

Husqvarna 819132005

WASHER.400X1.25X5.

$9.49

$

Usually ships in 3-10 days

0

17

Husqvarna 874610516

SCREW

$4.99

$

In Stock, Qty 5

0

19

Husqvarna 585540501

GUIDE.BELT.CHAIN.LS.SNOW

$13.99

$

Usually ships in 3-10 days

0

Husqvarna 585742701

ENGINE.LCT.369CC.ALT.SNOWKING
(Superseded to 585742703)

Note: For 96193009401, 96193009402, 96193009403,LCT PW2HK181000781D

$1595.99

$

Usually ships in 3-10 days

0

23

Husqvarna 874760608

SCREW.3/8-16 X .750 (2 2)

$4.99

$

In Stock, only 1 left!

0

2

Husqvarna 532413592

BELT.V.TRACTION.35.26

$31.99

$

In Stock, Qty 6

0

26

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$5.99

$

In Stock, Qty 11

0

Husqvarna 585742703

ENGINE.LCT.369CC.ALT.SNO.16

Note: For 96193009404, LCT PW2HK181000178E

$1595.99

$

Usually ships in 3-10 days

0

18

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, only 3 left!

0

9

Husqvarna 532751153

NUT.LOCK.5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, Qty 5

0

21

Husqvarna 587343701

BUSHING.BRAKE.ARM

$6.99

$

In Stock, only 1 left!

0

20

Husqvarna 532155415

WASHER.20X8.5

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$5.99

$

In Stock, Qty 20+

0

1

Husqvarna 532419888

V-BELT.IMPELLER

$56.99

$

In Stock, only 1 left!

0

12

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

Note: For 96191008500, 96193009401

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532429269

PLATE.ENGINE.MOUNT.LCT.ORANGE

$68.99

$

Usually ships in 3-10 days

0

5

Husqvarna 585284901

BRACKET.IDLER.PIVOT.ZINC
(Superseded to 532423990)

$

$

Not available

8

Husqvarna 532424297

BOLT.SHOULDER.1/2X12

$

$

Not available

13

Husqvarna 532059289

STEEL WASHER

$4.99

$

In Stock, only 2 left!

0

7

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$1.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532428685

COVER.ASM.BELT.EURO.HICR
(Superseded to 532418601)

$22.99

$

In Stock, only 3 left!

0

12

Husqvarna 532179617

BOLT.BLADE

Note: For all EXCEPT 96191008500, 96193009401

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532426589

NUT.FLANGE.HEX.5/16X18.BLACK
(Superseded to 585802801)

$5.99

$

In Stock, Qty 5

0

Husqvarna 585742702

ENGINE.LCT.369CC.SNOW.ALT
(Superseded to 585742704)

Note: For 96191008500, 96191008501, 96191008502, LCT PW2HK181000781D

$1823.99

$

Usually ships in 3-10 days

0
