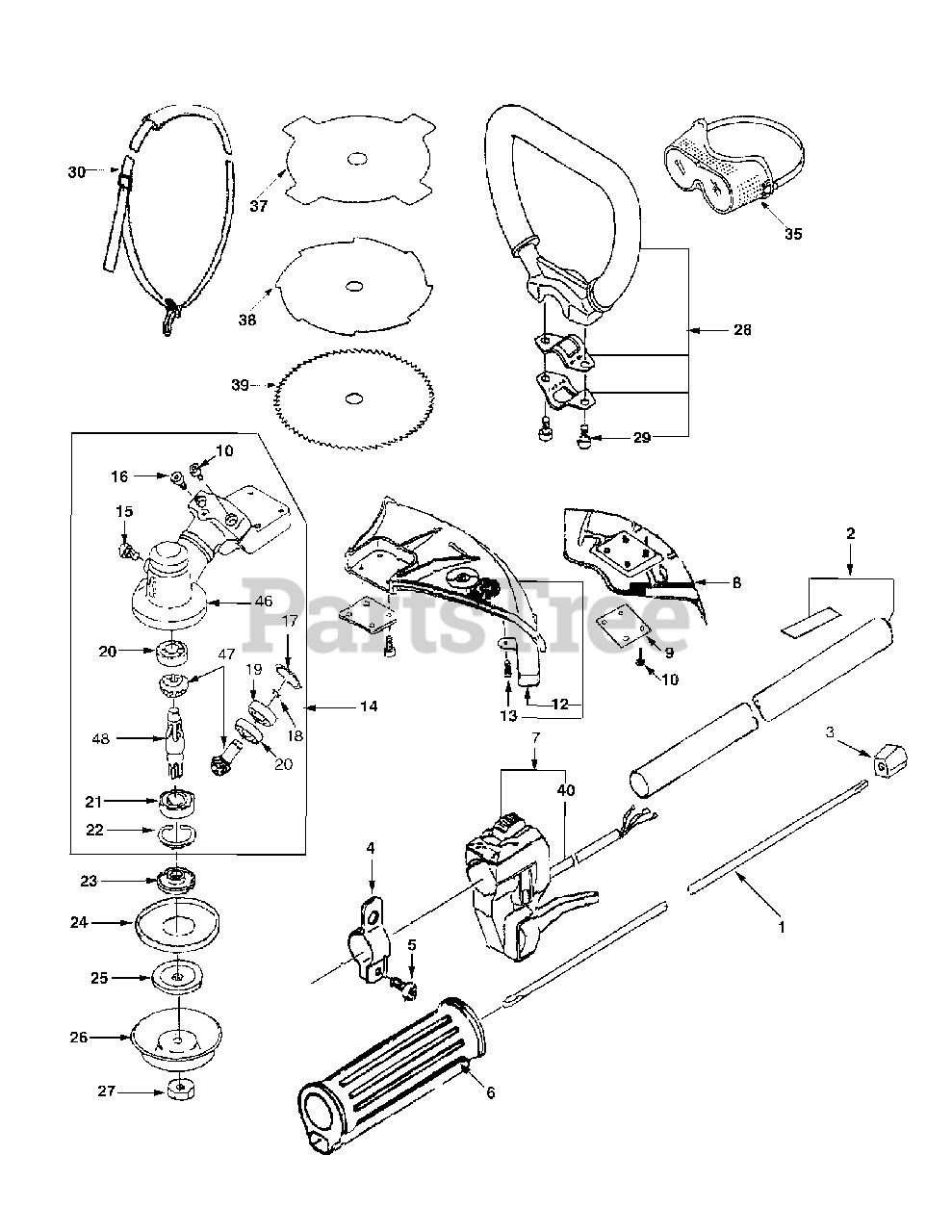

ST 35 - MTD Pro String Trimmer General Assembly Parts Diagram

Pro String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD IM-720113120

Shaft, Drive

$

$

Not available

2

MTD IM-720124290

Pipe Complete

$

$

Not available

3

MTD IM-720133061

Metal

$

$

Not available

4

MTD IM-720203073

Hanger

$

$

Not available

5

MTD IM-720973178

Bolt; M6 X 14

$

$

Not available

6

MTD IM-720623251

Grip

$

$

Not available

7

MTD IM-125034150

Lever Assy,Throttle

$126.99

$

Usually ships in 3-6 days

0

8

MTD IM-720463430

Deflector

$

$

Not available

9

MTD IM-720473180

Plate

$

$

Not available

10

MTD IM-010709009

Bolt; M5 X 20

$

$

Not available

?11

MTD IM-720043511

Deflector Ass'y

$

$

Not available

12

MTD IM-720493060

Cutter

$

$

Not available

13

MTD IM-010709008

Bolt; M5 X 16

$3.49

$

In Stock, only 1 left!

0

14

MTD IM-720023940

Case Ass'y, Gear
(Superseded to IM-720023941)

$338.99

$

Usually ships in 3-6 days

0

15

MTD IM-720973663

Bolt; M6 X 8

$

$

Not available

16

MTD IM-720973175

Bolt; M5 X 10

$

$

Not available

17

MTD IM-036500026

Snap Ring; R-26

$

$

Not available

18

MTD IM-036100010

Snap Ring; S-10

$

$

Not available

19

MTD IM-040126000

Bearing Ball; 6000ZZ

$

$

Not available

20

MTD IM-040106000

Bearing Ball; 6000

$

$

Not available

21

MTD IM-040146001

Bearing Ball; 6001LL

$

$

Not available

22

MTD IM-036500028

Snap Ring; R-28

$

$

Not available

23

MTD IM-720333630

Holder

$

$

Not available

24

MTD IM-720343890

Cover(B)

$28.99

$

Usually ships in 3-6 days

0

25

MTD IM-720333610

Holder

$25.99

$

Usually ships in 3-6 days

0

26

MTD IM-720343780

Cover, Bolt

$

$

Not available

27

MTD IM-720373220

Nut; Left M10 1.25

$

$

Not available

28

MTD IM-720053650

Handle

$

$

Not available

29

MTD IM-720973177

Bolt; M6 X 12

$

$

Not available

30

MTD IM-720853461

Band Complete, Shoulder

$39.99

$

Usually ships in 3-6 days

0

31

MTD IM-720983371

Wrench; 19

$

$

Not available

32

MTD IM-090500004

Wrench Key; 4mm

$

$

Not available

33

MTD IM-720983420

Bag, Tool

$

$

Not available

34

MTD IM-100814490

Book, Instruction

Note: NLA

$

$

Currently unavailable

35

MTD IM-195633000

Goggle

Note: NLA

$

$

Currently unavailable

37

MTD IM-195833150P

Blade (4 Tooth)

$

$

Not available

38

MTD IM-195833070P

Blade (8 Tooth)

$

$

Not available

39

MTD IM-195833160

Blade (Circular)

Note: NLA

$

$

Currently unavailable

40

MTD IM-125504820

Wire Compl, Throttle

$51.99

$

Usually ships in 3-6 days

0

46

MTD IM-720263670

Case, Gear

$

$

Not available

47

MTD IM-720273160

Gear Ass'y

$

$

Not available

48

MTD IM-720293370

Shaft

$

$

Not available
