ST 385i (UT-15173) - Homelite String Trimmer Straight Shaft Boom - Handle - Throttle - Stringhead - Grass Deflector Parts Diagram

String Trimmer

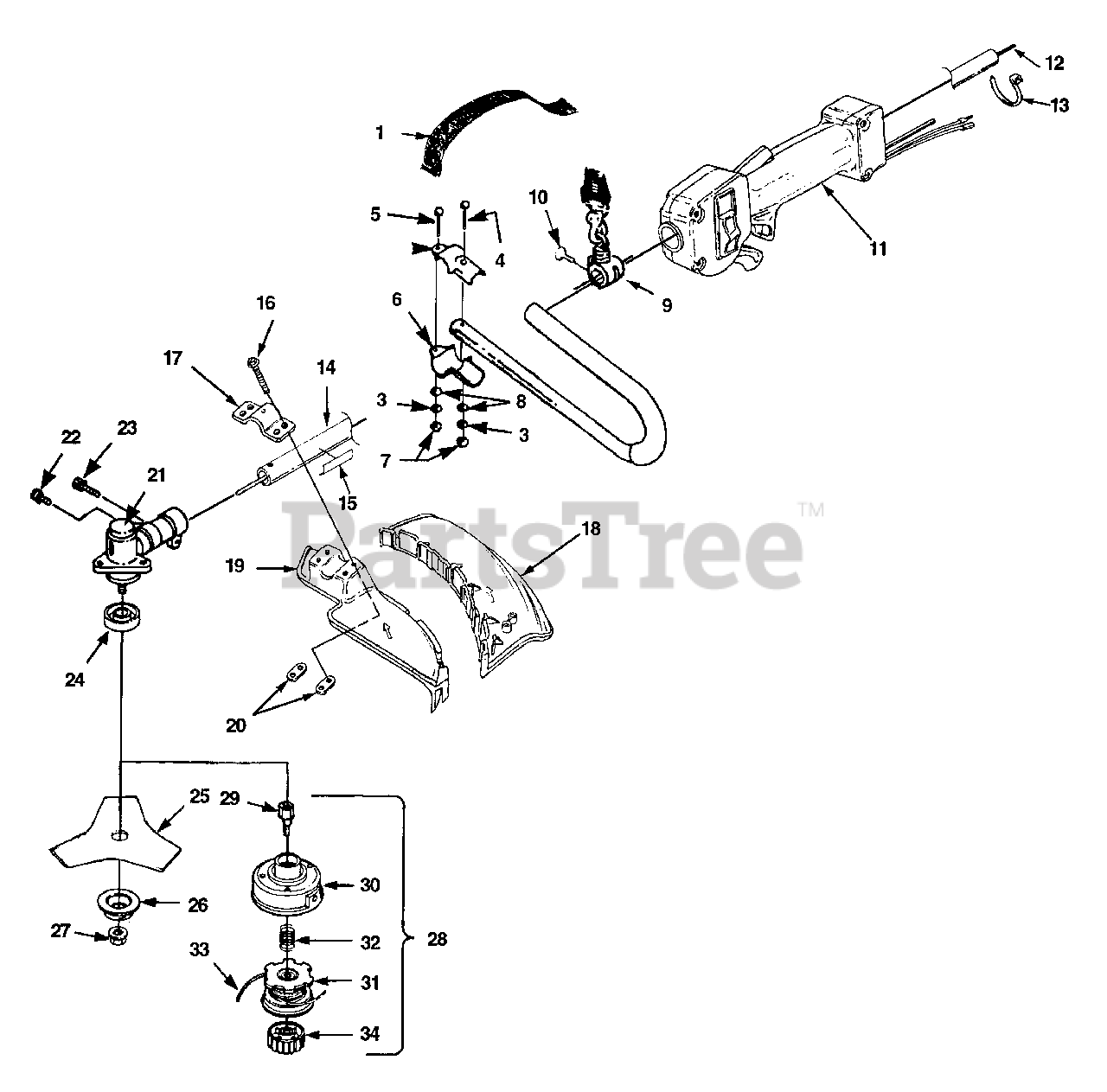

Straight Shaft Boom - Handle - Throttle - Stringhead - Grass Deflector Parts Diagram

  • Title

1

Homelite UP00108

HARNESS w/Connector
(Superseded to 944701)

$6.99

$

Usually ships in 3-7 days

0

?2

Homelite A07159

J-HANDLE BAR KIT
(Superseded to UP06534)

Note: (Includes 3-8)

$

$

Not available

3

Homelite 83009

Washer-Lock

$4.99

$

Usually ships in 3-7 days

0

4

Homelite 82278

SCREW-Hex Hd. (1/4-20 X 1/2")

Note: (Torque Specs 75-85 In/Lbs, 8.5-9.6 Nm)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 82496

SCREW-Hex Hd. (1/4-20 X 1")

Note: (Torque Specs 75-85 In/Lbs, 8.5-9.6 Nm)

$

$

Not available

6

Homelite 00422

CLAMP-Handle Bar
(Superseded to 099075001007)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 81242

NUT-Hex (1/4-20)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 84004

WASHER- Flat
(Superseded to 678013001)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite A94442

BRACKET-Hanger

Note: (Includes 10)

$10.99

$

Usually ships in 3-7 days

0

10

Homelite 82260

SCREW-Thumb (10-24 X 1/2")

$

$

Not available

11

Homelite A08899

THROTTLE & SWITCH w/Lead

$

$

Not available

12

Homelite 98832

SHAFT-Drive

$

$

Not available

13

Homelite PS46840

CABLE-Tie

$

$

Currently unavailable

14

Homelite A03800A

HOUSING-Drive Shaft
(Superseded to UP04489)

Note: (Includes 15)

$

$

Currently unavailable

15

Homelite 02985

DECAL-Warning
(Superseded to 983751001)

$

$

Not available

16

Homelite 825551

SCREW-Mach. Truss Hd. (10-24 X .750)
(Superseded to UP03899)

Note: (Torque Specs 40-50 In/Lbs, 4.5-5.6 Nm)

$2.99

$

Usually ships in 3-7 days

0

17

Homelite 08619

CLAMP
(Superseded to 984251001)

$6.49

$

Usually ships in 3-7 days

0

18

Homelite A08152

STRING SHIELD
(Superseded to UP04353)

$

$

Not available

19

Homelite 08573

BLADE GUARD

$

$

Not available

20

Homelite A08139

MOUNTING PLATE

$

$

Not available

21

Homelite A03888

GEAR HEAD
(Superseded to UP04120)

$

$

Not available

22

Homelite 88049

SCREW-Sems Hex Hd. (10-24 X 1/2")

Note: (Torque Specs 40-50 In/Lbs, 4.5-5.6 Nm)

$

$

Not available

23

Homelite 82586

SCREW-Cap Socket Hd. (1/4-20 x 7/8")

Note: (Torque Specs 55-65 In/Lbs, 7.2-7.3 Nm)

$2.99

$

Usually ships in 3-7 days

0

24

Homelite 041681A

WASHER-Flange
(Superseded to 099078001005)

$6.49

$

Usually ships in 3-7 days

0

25

Homelite D98717C

BLADE-Tri-Arc
(Superseded to 638006004)

$12.99

$

Usually ships in 3-7 days

0

26

Homelite 04409

WASHER-Flange

$2.49

$

In Stock, only 1 left!

0

27

Homelite 04277

NUT-Hex (L.H.)
(Superseded to 678018001)

$

$

Not available

28

Homelite DA03174A

STRINGHEAD COMPLETE
(Superseded to UP04650A)

Note: (Includes 29-34)

$30.99

$

In Stock, only 1 left!

0

29

Homelite 9855141

CONNECTOR-Drive

$

$

Not available

30

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

31

Homelite UP00147

SPOOL & STRING (Dual Line)
(Superseded to UP04661A)

Note: (Includes 32)

$60.99

$

In Stock, only 1 left!

0

32

Homelite B06713

SPRING-Compression
(Superseded to 06713)

$1.49

$

In Stock, only 2 left!

0

33

Homelite D06514

LINE-Replacement (.095" Dia.) (285')
(Superseded to D06520)

$

$

Not available

34

Homelite A97910A

RETAINER-Spool (L.H.) (Red)
(Superseded to 308042003)

$1.49

$

Usually ships in 3-7 days

0
