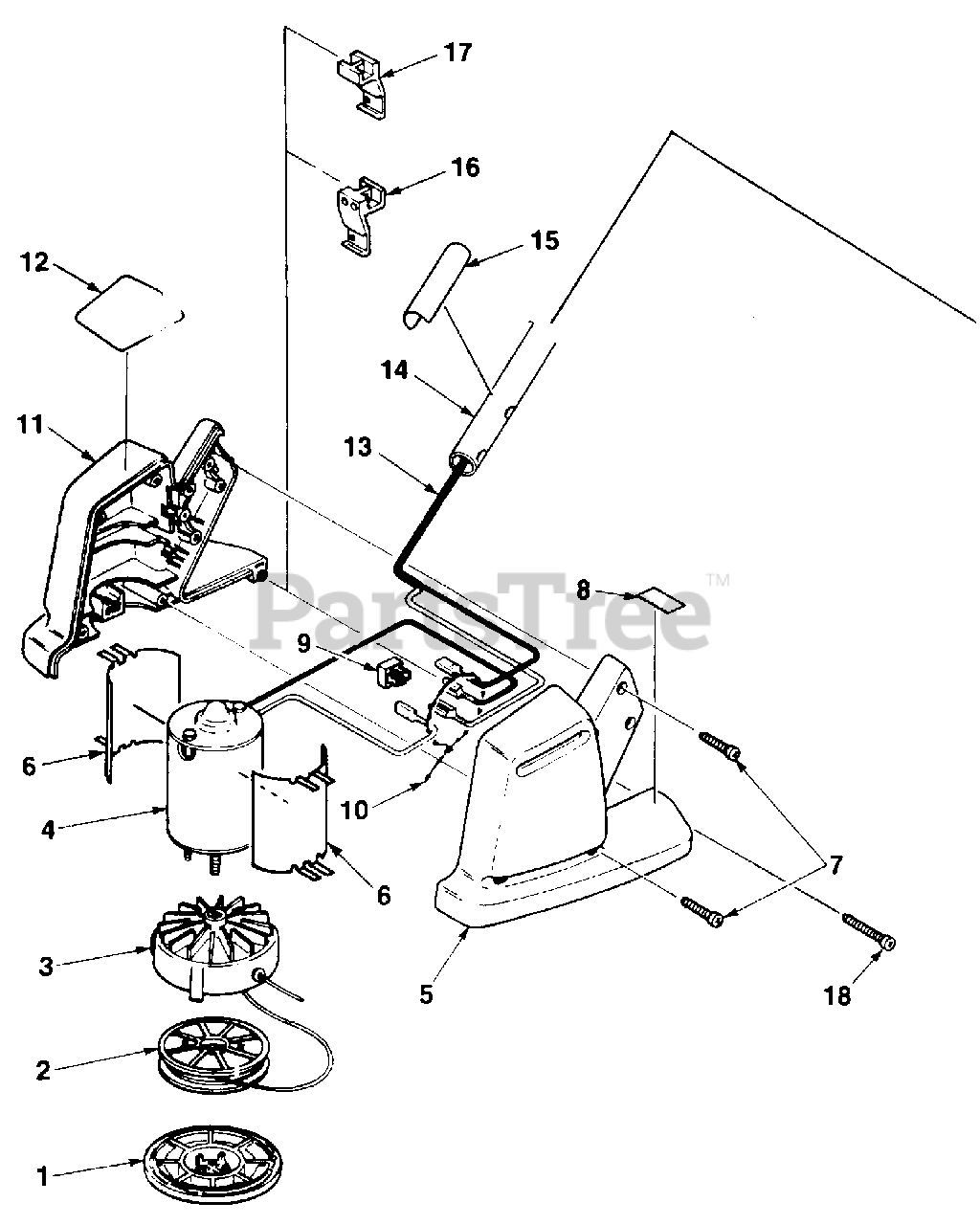

ST 40 (UT-21518) - Homelite String Trimmer, Electric Motor & String Head Parts Diagram

String Trimmer, Electric

Motor & String Head Parts Diagram

  • Title

1

Homelite 951371

RETAINER SPOOL

$

$

Currently unavailable

2

Homelite DA95916A

SPOOL & STRING

$

$

Currently unavailable

3

Homelite A95129

HEAD- String

$

$

Currently unavailable

4

Homelite 95121

MOTOR- Electric 120V (ST-40)

$

$

Not available

Homelite 95122

MOTOR- Electric 120V (ST-60)

$

$

Currently unavailable

5

Homelite 00055A

HOUSING- Motor (left) (ST-40)

$

$

Not available

Homelite 95107A

HOUSING- Motor (left) (ST-60)

$

$

Currently unavailable

6

Homelite 96816

SHIM- Motor

$

$

Currently unavailable

7

Homelite 94065

SCREW- Thread forming 10-16 x 3/4

$

$

Not available

8

Homelite 95391

DECAL- Warning

$8.99

$

Usually ships in 3-7 days

0

9

Homelite 95672

RECTIFIER

$43.99

$

Usually ships in 3-7 days

0

10

Homelite 50729

CLAMP- Wire

$

$

Not available

11

Homelite 00054

HOUSING- Motor (right) (ST-40)

$

$

Not available

Homelite 95106A

HOUSING- Motor (right)

$

$

Currently unavailable

12

Homelite 95152

DECAL (ST-40)

$

$

Currently unavailable

Homelite 95153

DECAL (ST-60)

$

$

Currently unavailable

13

Homelite A95111

CABLE- Electrical

$

$

Currently unavailable

14

Homelite 95109

TUBING

$

$

Not available

15

Homelite 951321

DECAL- Warning

$9.49

$

Usually ships in 3-7 days

0

16

Homelite A95127A

CUT- OFF- String (ST-40)

$

$

Currently unavailable

17

Homelite A95115A

CUT- OFF- String (ST-60)

$

$

Not available

18

Homelite 82408

SCREW- Thread forming (10 x 1")

$

$

Not available

Homelite 80295

SCREW- Cap hex hd. 1/4-20 x 2

$5.99

$

Usually ships in 3-7 days

0

Homelite 93992

NUT- Wing washer face

$

$

Not available

Homelite 95110

HANDLE- Front

$

$

Not available

Homelite 95102

HANDLE- Right side

$

$

Not available

Homelite 93013

SWITCH

$

$

Currently unavailable

Homelite 95118A

CORD SET

$

$

Currently unavailable

Homelite 95103

HANDLE- Left side

$

$

Not available

Homelite 95198

SCREW- Thread forming (10-16 x 9/16)

$

$

Not available

Homelite 94305

Power Cord (50')

$

$

Not available

Homelite 17634

TOOL- Head removal

$

$

Currently unavailable
