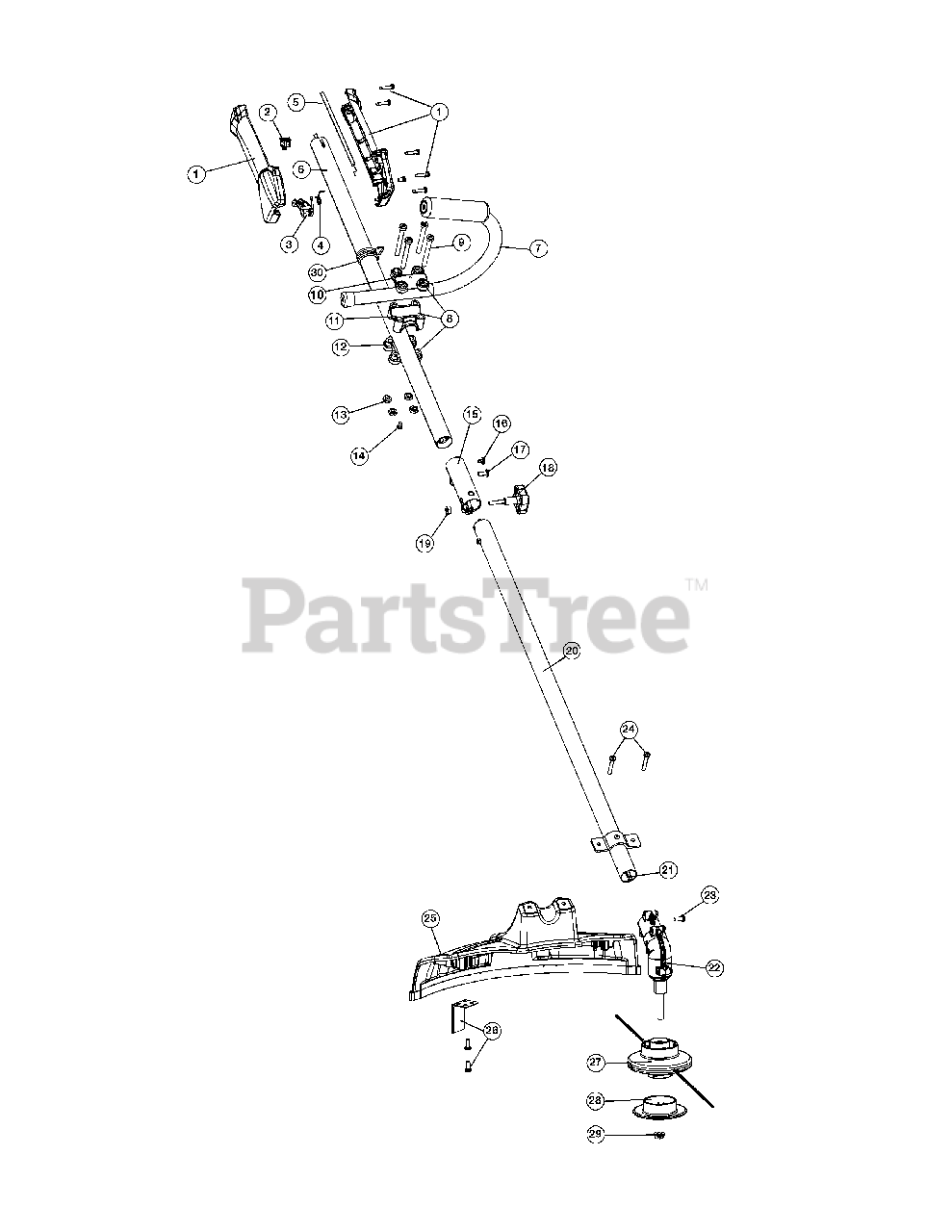

ST 4175 (41CDC47C912) - Cub Cadet String Trimmer (2011) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

Cub Cadet 753-04234

Throttle Housing Assembly (Incl. 2-4)

$19.99

$

In Stock, Qty 20+

0

2

Cub Cadet 791-182405

Switch

$9.99

$

In Stock, Qty 20+

0

3

Cub Cadet 753-04119

Throttle Trigger

$6.99

$

In Stock, Qty 20+

0

4

Cub Cadet 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 15

0

5

Cub Cadet 753-05266

Throttle Cable

$19.99

$

In Stock, Qty 20+

0

6

Cub Cadet 753-06558

Upper Driver Shaft Housing Assembly

$

$

Not available

7

Cub Cadet 791-180687

J-Handle Assembly

$38.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 791-180687

Handle Bracket Assembly

$38.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 791-181811

Screw

$4.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 791-181812

Upper Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 791-181813

Middle Handle Clamp

$11.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 791-181814

Lower Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 791-181815

Nut

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

15

Cub Cadet 753-06585

Split Boom Coupler (Incl. 16-19)

$8.99

$

In Stock, Qty 8

0

16

Cub Cadet 791-182057

Screw

$4.49

$

In Stock, Qty 15

0

17

Cub Cadet 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

18

Cub Cadet 791-181618B

Adjustment Knob (Incl. 19)
(Superseded to 791-181981)

$7.49

$

In Stock, only 1 left!

0

19

Cub Cadet 712-04018A

Knob Retaining Nut

$4.49

$

In Stock, Qty 6

0

20

Cub Cadet 753-06587

Lower Driver Shaft Housing Assembly
(Superseded to 753-07016)

$20.99

$

In Stock, Qty 10

0

21

Cub Cadet 753-05267

Lower Flexible Drive Shaft

$39.99

$

In Stock, Qty 12

0

22

Cub Cadet 753-06162

Gearbox Assembly

Note: (Incl. 22,27-29)

$36.99

$

In Stock, Qty 13

0

23

Cub Cadet 7039

Anti-Rotation Screw

$4.49

$

In Stock, Qty 10

0

24

Cub Cadet 753-06125

Shield Mounting Hardware

$6.49

$

In Stock, Qty 8

0

25

Cub Cadet 753-04283

Shield Assembly (Incl. 26)

$47.99

$

In Stock, only 4 left!

0

26

Cub Cadet 753-06126

Blade Assembly

$3.49

$

In Stock, Qty 6

0

27

Cub Cadet 753-05495

Fixed Line Head Assembly (Incl. 28 & 29)

$

$

Not available

28

Cub Cadet 731-05714

Glide Cap

$16.99

$

In Stock, Qty 10

0

29

Cub Cadet 712-04018A

Locknut

$4.49

$

In Stock, Qty 6

0

30

Cub Cadet 791-610327

Shoulder Strap Clip

$30.99

$

Usually ships in 3-6 days

0

Cub Cadet 796-00029

Tube of Line

Note: Not shown

$17.99

$

Usually ships in 3-6 days

0
