ST 427 (961930130-01) - Husqvarna 27" Snow Blower (2019-04) CONTROL PANEL & DISCHARGE CHUTE 4 Parts Diagram

27" Snow Blower

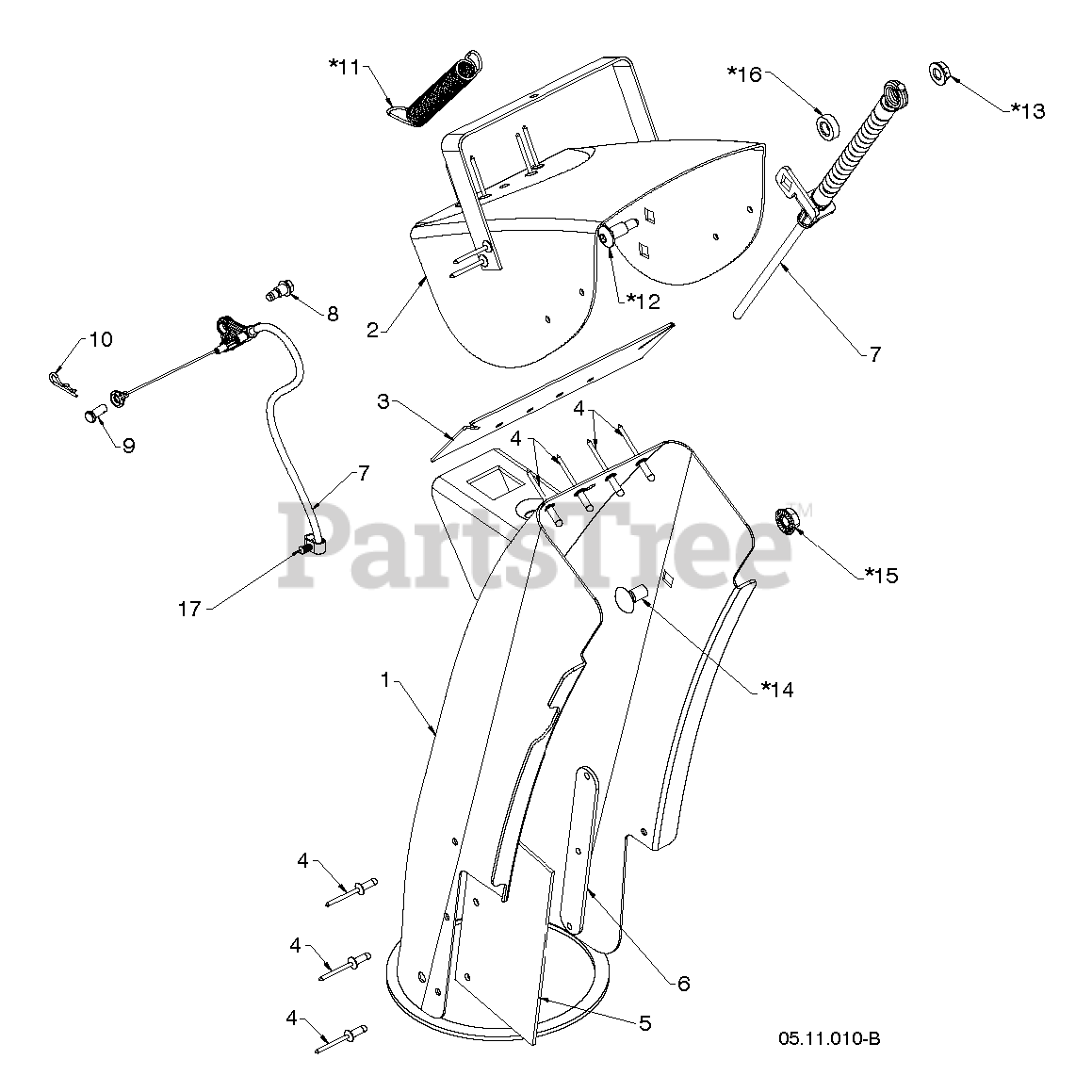

CONTROL PANEL & DISCHARGE CHUTE 4 Parts Diagram

  • Title

*16

Husqvarna 501417401

WASHER.NYLON.326 X.625 X.205

$3.99

$

In Stock, only 2 left!

0

*14

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

$4.99

$

In Stock, only 2 left!

0

8

Husqvarna 581726101

BOLT SHOULDER_1/4-20_TRILOB

$3.99

$

In Stock, Qty 20+

0

*11

Husqvarna 532184505

SPRING.DEFLECTOR.REM.CHUTE

$8.49

$

In Stock, only 2 left!

0

3

Husqvarna 532420325

SEAL.DEFLECTOR

Note: SEAL

$7.49

$

In Stock, only 1 left!

0

6

Husqvarna 532435776

RP STRAP.SHEILD.RETAINER
(Superseded to 532419822)

Note: RETAINER

$3.99

$

Usually ships in 3-10 days

0

*13

Husqvarna 585691401

NUT.HEX.LRG.FLANGE.1/4-20.LOCK

$3.49

$

In Stock, only 2 left!

0

*12

Husqvarna 501417301

BOLT.CARR.W.3125 SHLDR..25-20

$3.99

$

In Stock, only 1 left!

0

1

Husqvarna 532444041

CHUTE.WELDMENT.SNOW.ORANGE
(Superseded to 588077802)

$131.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532181580

CLIP.ROUTING DUAL

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532128415

RIVET BLIND

Note: POP RIVET

$3.49

$

Usually ships in 3-10 days

0

*15

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$

$

Not available

7

Husqvarna 590587002

CABLE CONTROL.CHUTE.DEFLECTOR.

$27.99

$

Usually ships in 3-10 days

0

9

Husqvarna 590800901

PIN CLEVIS .25 X ..4375

$3.99

$

In Stock, only 2 left!

0

2

Husqvarna 588077802

ASM.CHUTE/DEFLECTOR.668

Note: DEFLECTOR

$131.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532423303

HAIRPIN.SOFT.ZINC.059X1.125
(Superseded to 583404901)

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532430324

SHIELD.SNOW.CHUTE

Note: SHIELD

$23.99

$

In Stock, only 1 left!

0
