ST 428 (41BD4S8C912) - Cub Cadet String Trimmer (2013) General Assembly Parts Diagram

String Trimmer

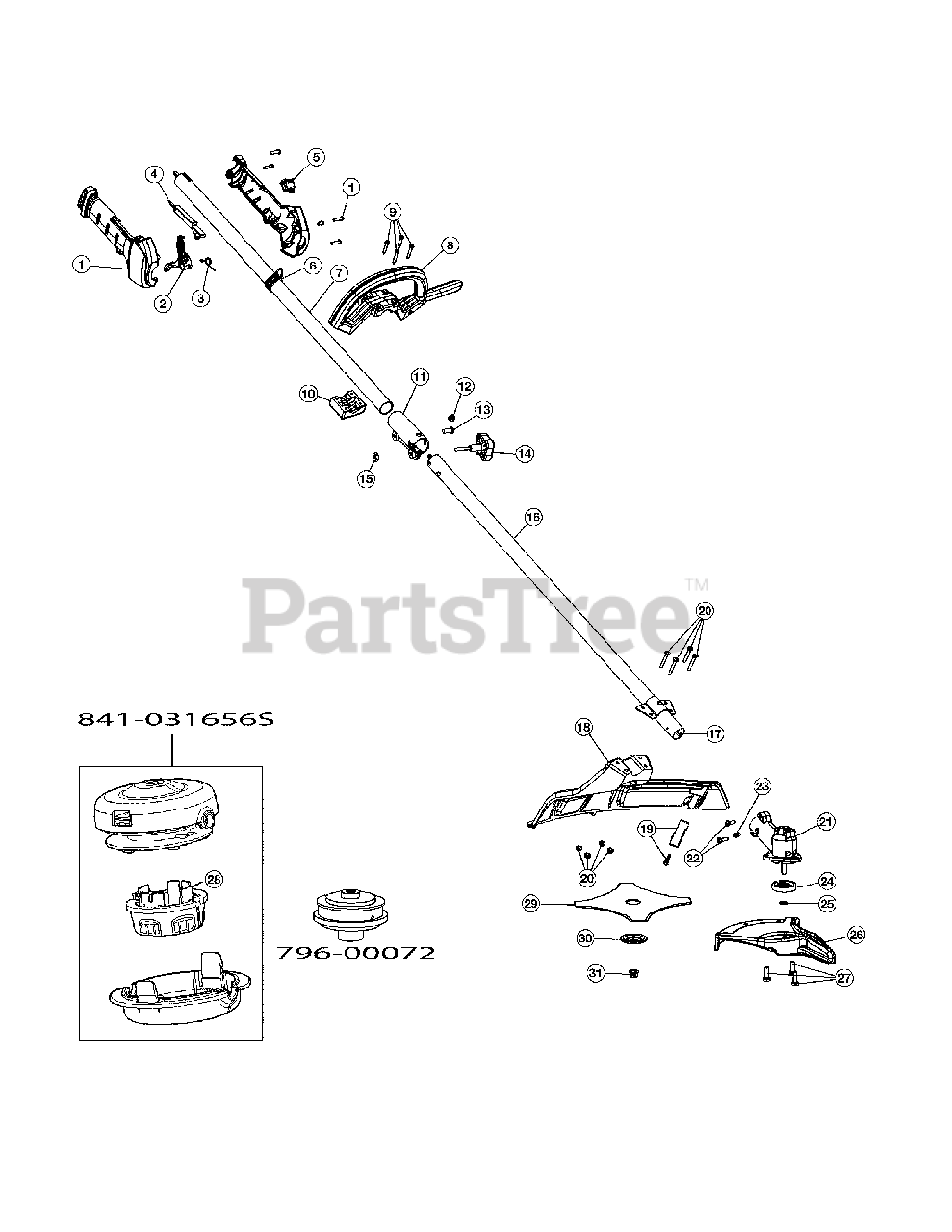

General Assembly Parts Diagram

  • Title

1

Cub Cadet 753-05296

Throttle Housing Assembly
(Superseded to 753-09645)

Note: (Incl. 2 - 5)

$13.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 753-06961

Throttle Trigger

$3.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 753-05007

Spring

$5.49

$

In Stock, Qty 8

0

4

Cub Cadet 753-06962

Throttle Lock-out

$2.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 791-182405

Switch

$11.99

$

In Stock, Qty 9

0

6

Cub Cadet 791-610327

Shoulder Strap Clip

$34.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 753-06963

Upper Drive Shaft Housing Assembly

$20.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 753-05008

D-Handle Assembly

Note: (Incl. 9 & 10)

$33.99

$

In Stock, only 2 left!

0

9

Cub Cadet 753-05009

Handle Base

$7.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 753-06585

Split Boom Coupler

Note: (Incl. 12 - 15)

$9.99

$

In Stock, only 3 left!

0

12

Cub Cadet 791-182057

Coupler Anti-Rotation Screw

$4.99

$

In Stock, Qty 17

0

13

Cub Cadet 791-181617

Screw

$5.99

$

In Stock, Qty 10

0

14

Cub Cadet 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$7.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-04018A

Knob Retaining Nut

$4.99

$

In Stock, only 4 left!

0

16

Cub Cadet 753-06964

Lower Drive Shaft Housing Assembly

Note: (Incl. 17)

$21.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 753-05267

Lower Flexible Drive Shaft

$45.99

$

In Stock, Qty 20+

0

18

Cub Cadet 753-05820

Shield Assembly

Note: (Incl. 19)

$25.99

$

In Stock, Qty 8

0

19

Cub Cadet 753-05821

Blade Assembly

$9.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 753-05822

Shield Mounting Screw & Nut

$7.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 791-182193

Gearbox

$105.99

$

In Stock, only 2 left!

0

22

Cub Cadet 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

23

Cub Cadet 791-145569

Anti-Rotation Screw

$10.99

$

In Stock, Qty 7

0

24

Cub Cadet 791-182196

Blade Driver

$23.99

$

In Stock, only 2 left!

0

25

Cub Cadet 753-04348

Palnut

$7.49

$

In Stock, only 2 left!

0

26

Cub Cadet 791-147492

Blade Shield

$134.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 791-182200

Blade Shield Mounting Hardware

$7.49

$

In Stock, only 2 left!

0

28

Cub Cadet 753-08163

Bump Knob

$3.49

$

In Stock, Qty 19

0

29

Cub Cadet 791-145873B

4-Tooth Blade

$45.99

$

In Stock, only 2 left!

0

30

Cub Cadet 791-147490

Retaining Washer

$12.99

$

In Stock, only 2 left!

0

31

Cub Cadet 712-04105

Nut

$11.99

$

In Stock, only 2 left!

0

841-031656S

Cub Cadet 841-031656S

Cutting Head Assembly
(Superseded to 841-032392S)

Note: (replaces 796-00072) (includes 28)

$24.99

$

In Stock, Qty 19

0

796-00072

Cub Cadet 796-00072

Cutting Head Assembly
(Superseded to 841-032392S)

$24.99

$

In Stock, Qty 19

0

Cub Cadet 49U2341K953

Round Line-.095, 40' Trimmer Line

Note: (Optional Accessory)(not shown)

$

$

Not available

Cub Cadet WLM-195

Maxi Edge .095, 200' Trimmer Line

Note: (Optional Accessory)(not shown)

$15.99

$

In Stock, only 4 left!

0

Cub Cadet 49M2027P953

Electric Starter
(Superseded to 625-04120)

Note: (Optional Accessory)(not shown)

$82.99

$

Usually ships in 3-6 days

0

Cub Cadet 49MESCBP912

Engine Start Bit
(Superseded to 49MASCBP953)

Note: (Optional Accessory)(not shown)

$21.99

$

In Stock, only 2 left!

0

Cub Cadet 49MRBESY912

Cordless Electric Starter

Note: (Optional Accessory)(not shown)

$

$

Not available
