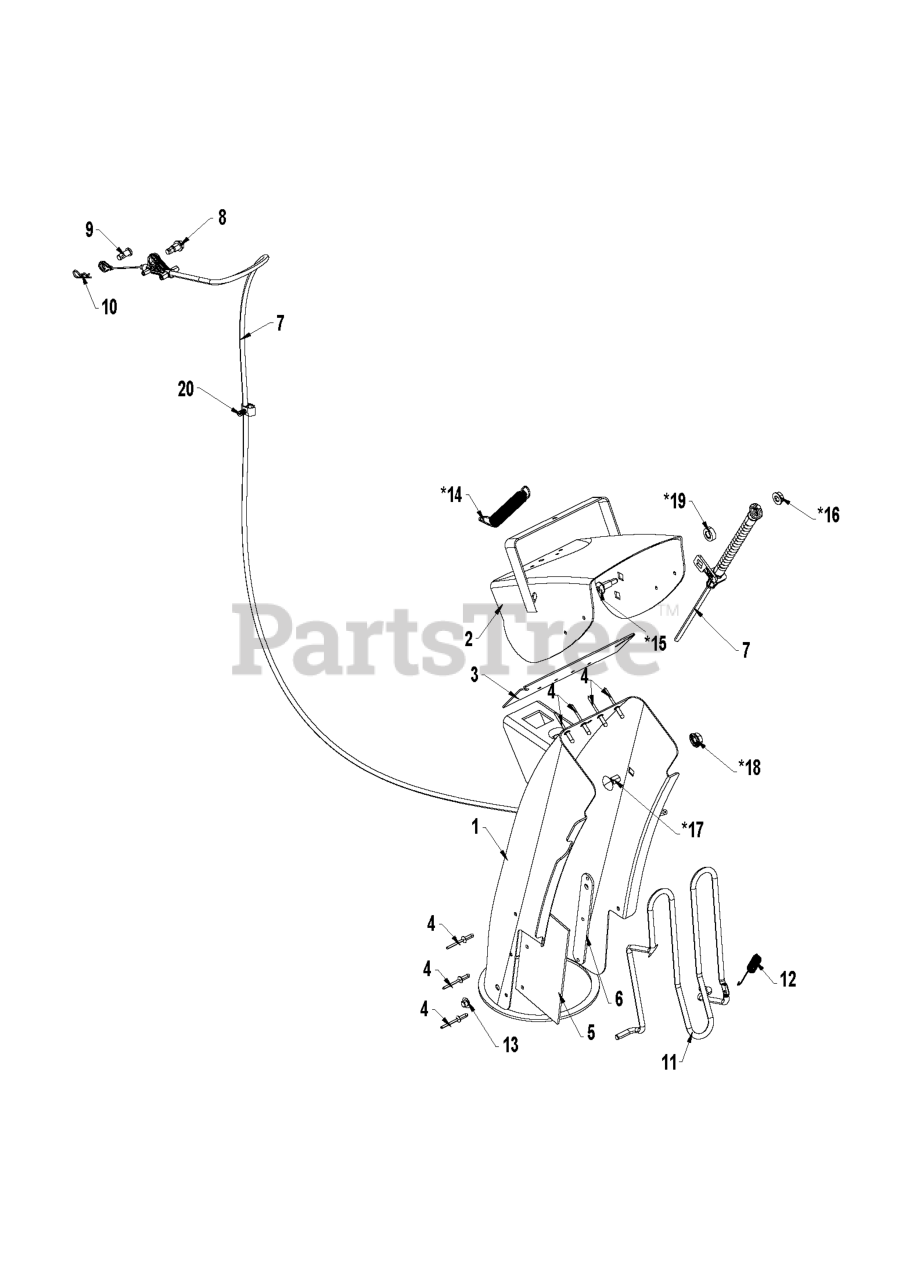

ST 430 (970529601-00) - Husqvarna 30" Snow Blower CONTROL PANEL & DISCHARGE CHUTE 8 Parts Diagram

30" Snow Blower

CONTROL PANEL & DISCHARGE CHUTE 8 Parts Diagram

  • Title

12

Husqvarna 532435616

SPRING.CHUTE.GUARD

$3.49

$

Usually ships in 3-10 days

0

*18

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$

$

Not available

*17

Husqvarna 585832001

BOLT CAR BLK 5/16-18 X 5/8

$4.99

$

In Stock, Qty 6

0

20

Husqvarna 532181580

CLIP.ROUTING DUAL

$3.49

$

Usually ships in 3-10 days

0

*15

Husqvarna 501417301

BOLT.CARR.W.3125 SHLDR..25-20

$3.49

$

In Stock, only 4 left!

0

9

Husqvarna 590800901

PIN CLEVIS .25 X ..4375

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532059349

NUT
(Superseded to 582935201)

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532420325

SEAL.DEFLECTOR

$6.99

$

In Stock, only 1 left!

0

11

Husqvarna 593622201

GUARD ROD CHUTE GUARD SHORT CL

$13.99

$

Usually ships in 3-10 days

0

*16

Husqvarna 585691401

NUT.HEX.LRG.FLANGE.1/4-20.LOCK

$3.49

$

Usually ships in 3-10 days

0

*19

Husqvarna 501417401

WASHER.NYLON.326 X.625 X.205

$3.49

$

In Stock, only 2 left!

0

*14

Husqvarna 532184505

SPRING.DEFLECTOR.REM.CHUTE

$7.99

$

In Stock, Qty 20+

0

10

Husqvarna 532423303

HAIRPIN.SOFT.ZINC.059X1.125
(Superseded to 583404901)

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532128415

RIVET BLIND

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 598450501

Controls

$31.99

$

In Stock, only 1 left!

0

1

Husqvarna 588077802

ASM.CHUTE/DEFLECTOR.668

Note: CHUTE WELDMENT (Includes 2, 3, 4, 5, 6)

$113.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532435776

RP STRAP.SHEILD.RETAINER

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 581726101

BOLT SHOULDER_1/4-20_TRILOB

$3.49

$

In Stock, Qty 20+

0

5

Husqvarna 532430324

SHIELD.SNOW.CHUTE

$22.99

$

In Stock, only 2 left!

0

2

NEEDS DESCRIPTION

Note: RIVETED DEFLECTOR ASSEMBLY

$

$

Not available
