ST 430 - Husqvarna 30" Snow Blower DRIVE Parts Diagram

30" Snow Blower

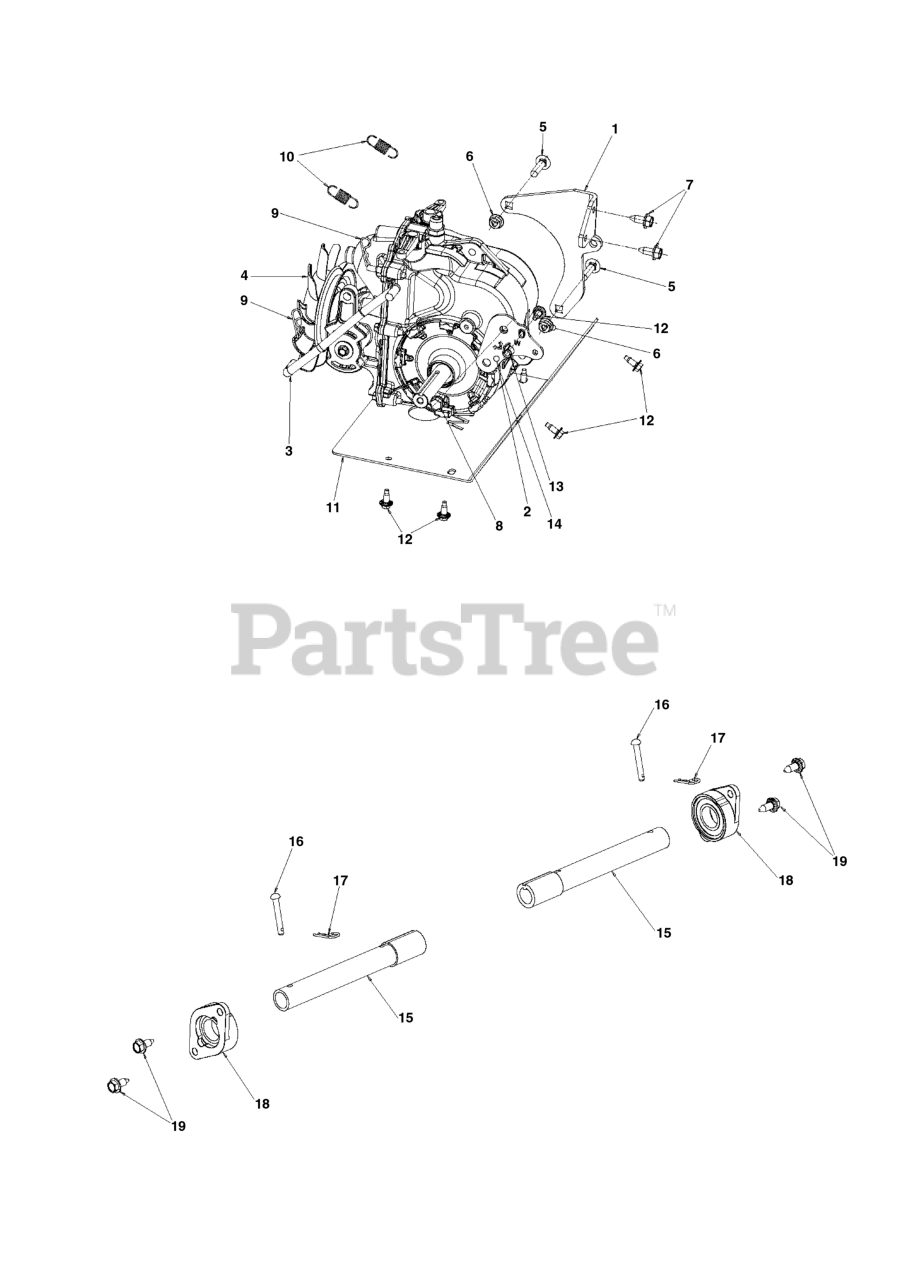

DRIVE Parts Diagram

  • Title

18

Husqvarna 590000601

CARRIER BEARING

$39.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 17

0

12

Husqvarna 585517801

HEX.WASHER.HEAD 1/4-20 X .65

$4.99

$

In Stock, only 4 left!

0

15

Husqvarna 589289701

AXLE WHEEL

$22.99

$

Usually ships in 3-10 days

0

8

Husqvarna 595517601

BOLT SHOULDER 3/8-20 X.25

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532169675

SPRING RETAINER

$7.49

$

In Stock, only 2 left!

0

13

Husqvarna 597597101

Nuts

Note: For 97052960100

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna 589289102

Bell Cranks

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532053847

WASHER
(Superseded to 819091214)

$10.99

$

Usually ships in 3-10 days

0

11

Husqvarna 583808502

Covers

$20.99

$

Usually ships in 3-10 days

0

3

Husqvarna 589289301

ROD SPEED

$6.99

$

Usually ships in 3-10 days

0

5

Husqvarna 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 11

0

19

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 20+

0

7

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 20+

0

10

Husqvarna 589263701

SPRING IDLER RETURN

$5.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532126875

RIVET,DRILLED

$6.49

$

In Stock, Qty 20+

0

4

Husqvarna 589288701

TRANSMISSION HYDRAULIC POWER S

$1481.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532751153

NUT.LOCK.5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, only 3 left!

0

13

Husqvarna 539990997

WING NUT 1/4

Note: For 96193013101, 96193010400

$2.99

$

In Stock, only 2 left!

0

1

Husqvarna 589288802

Mounts

$13.99

$

Usually ships in 3-10 days

0
